Circuit Inspection

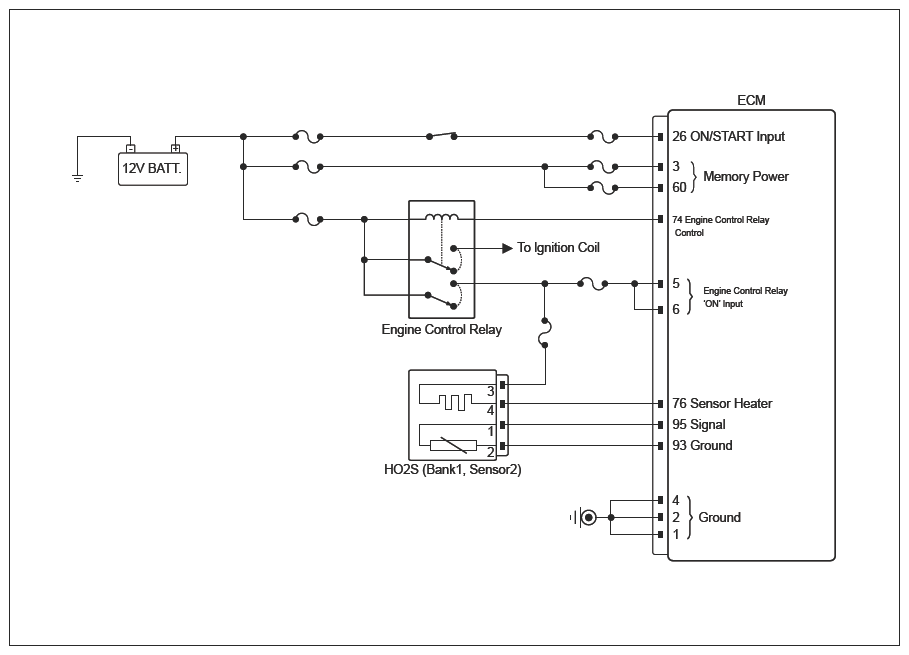

G16430393

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Voltage inspection (HO2S (Bank1, Sensor2) ↔ Chassis ground)	Connect the connector(s) HO2S (Bank1, Sensor2). Ignition "ON".	HO2S (Bank1, Sensor2) connector	1 (signal)	Chassis ground	-	Approx. 2.3V
Voltage inspection (HO2S (Bank1, Sensor2) ↔ Chassis ground)		HO2S (Bank1, Sensor2) connector	2 (ground)	Chassis ground	-	Approx. 0.6V
Voltage inspection (HO2S (Bank1, Sensor2) ↔ Chassis ground)	Disconnect the connector(s) HO2S (Bank1, Sensor2). Ignition "ON".	HO2S (Bank1, Sensor2) connector	1 (signal)	Chassis ground	-	Approx. 2.3V
Voltage inspection (HO2S (Bank1, Sensor2) ↔ Chassis ground)		HO2S (Bank1, Sensor2) connector	2 (ground)	Chassis ground	-	Approx. 0.6V
Short in circuit inspection (HO2S (Bank1, Sensor2) ↔ Chassis ground)	Ignition "OFF". Disconnect the connector(s) HO2S (Bank1, Sensor2).	HO2S (Bank1, Sensor2) connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω
		HO2S (Bank1, Sensor2) connector	2 (ground)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
