Module Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ICU connector	1, 2, 15, 17, 26, 38, 54 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU connector	13, 14 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "P-CAN Inspection" procedure.

No Good

Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PCM (component side)	77 (P-CAN high)	PCM (component side)	60 (P-CAN low)	Approx. 120Ω
	ICU (component side)	9 (P-CAN high)	ICU (component side)	8 (P-CAN low)	Approx. 120Ω
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU connector	9 (P-CAN high)	PCM connector	77 (P-CAN high)	Approx. below 1Ω
	ICU connector	8 (P-CAN low)	PCM connector	60 (P-CAN low)	Approx. below 1Ω

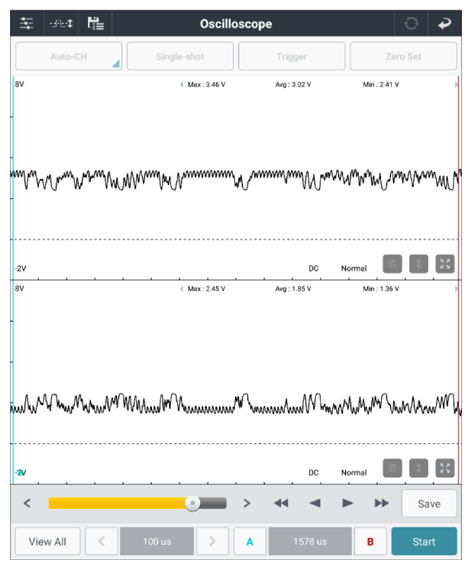

Ignition "ON".	PCM connector	77 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	PCM connector	60 (P-CAN low)	Chassis ground	-	Fig.1

G16437128

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
