Components Location

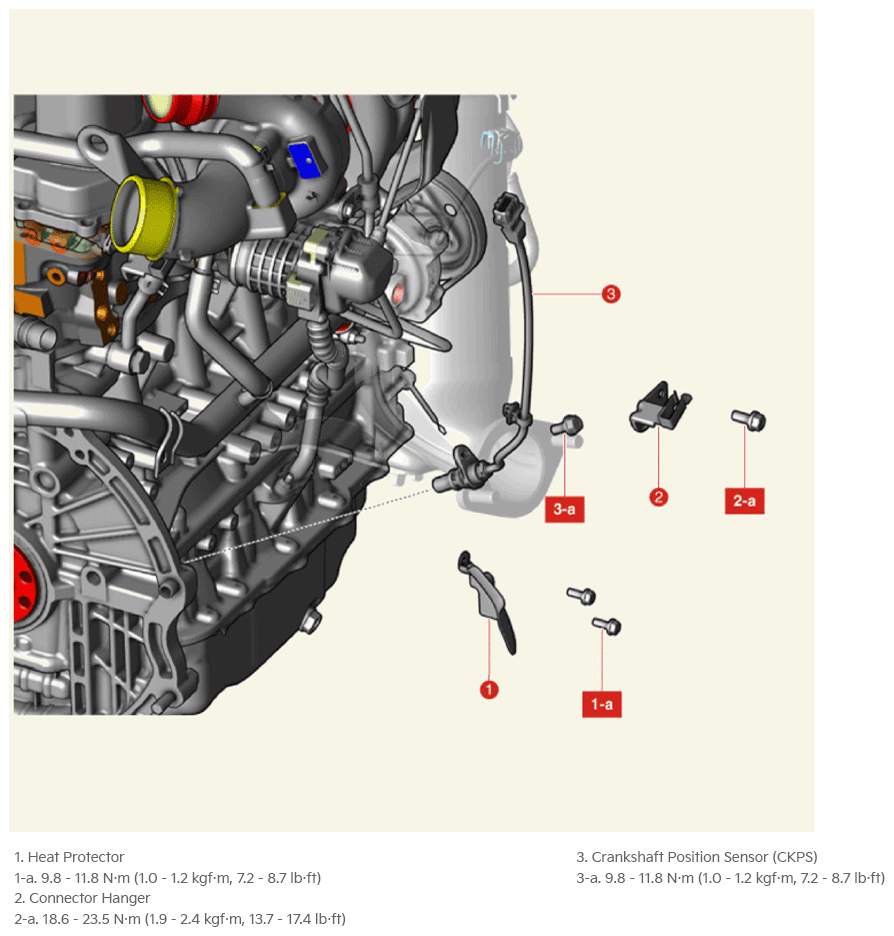

Fig 1: Crankshaft Position Sensor Components Location With Torque Specification
G16515889Courtesy of KIA MOTORS AMERICA, INC.
