Description And Operation: Description: Notes

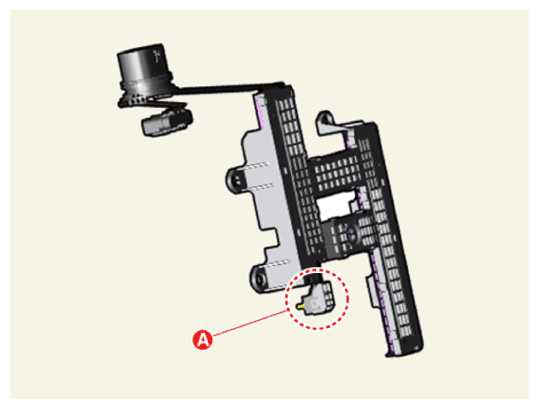

The sensor used is a thermistor (NTC) (A) in which resistance changes with temperature variation.
When the TCM supplies about 5 V of power to sensor, the sensor output value changes depending on ATF temperature.
Oil temperature sensor is installed on the valve body and is integrated with E-module.

Courtesy of KIA MOTORS AMERICA, INC.
