Oil Temperature Sensor (E-Module): Installation

NOTE:

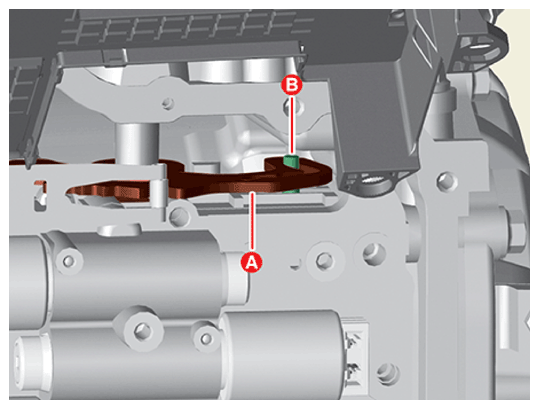

When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

When installing the clamp, be careful not to damage the hose.

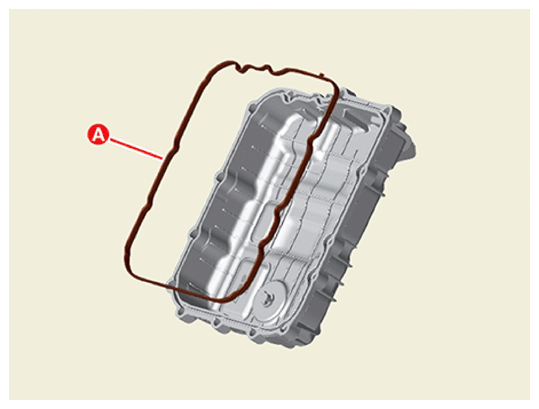

The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - " FLUID ")
Refill the engine coolant.
(Refer to Engine Mechanical System - " COOLANT ")
After installing, check for leakage of fluid from hose connection during engine starting and running.
