Oil Temperature Sensor (E-Module): Removal

NOTE:

Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Engine Mechanical System - " COOLANT ")
Remove the valve body assembly.
(Refer to Hydraulic System - " VALVE BODY ")

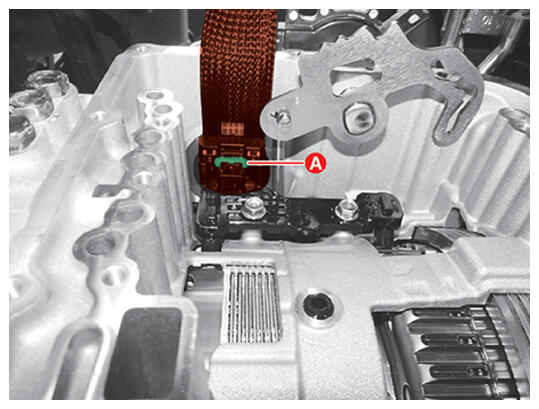

Disconnect the speed sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

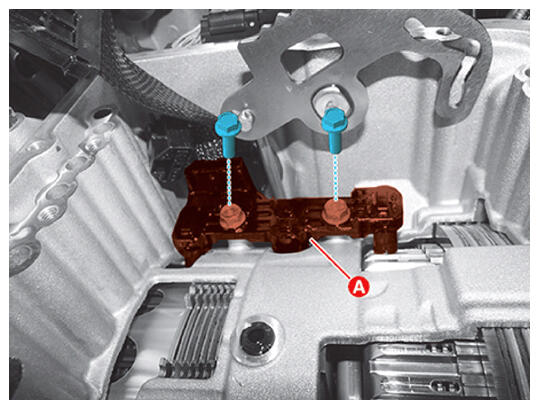

Remove the speed sensor (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

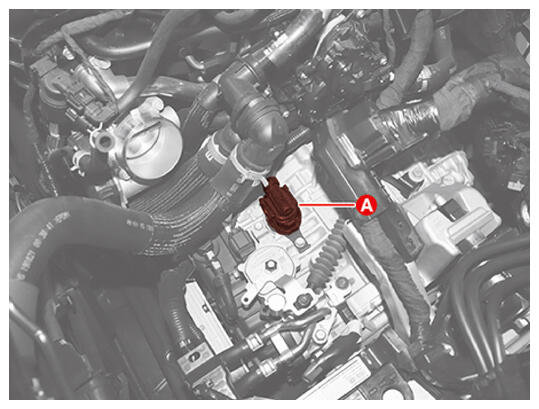

Disconnect the main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

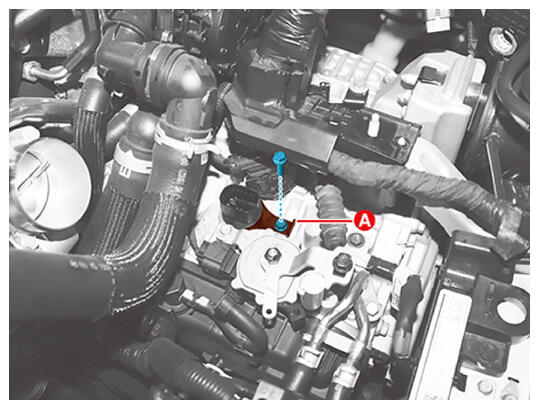

Remove the clip (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

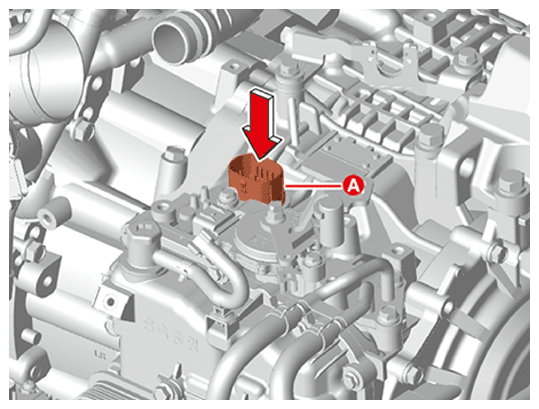

Remove the connector (A) by pushing it downward.

Courtesy of KIA MOTORS AMERICA, INC.
