Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
- The telltale lamp will be turned "ON" for 4 seconds and "OFF" for 3 seconds. Then, it will remain turned "OFF" as long as the ODS does not require suppression and the passenger airbag is enabled.

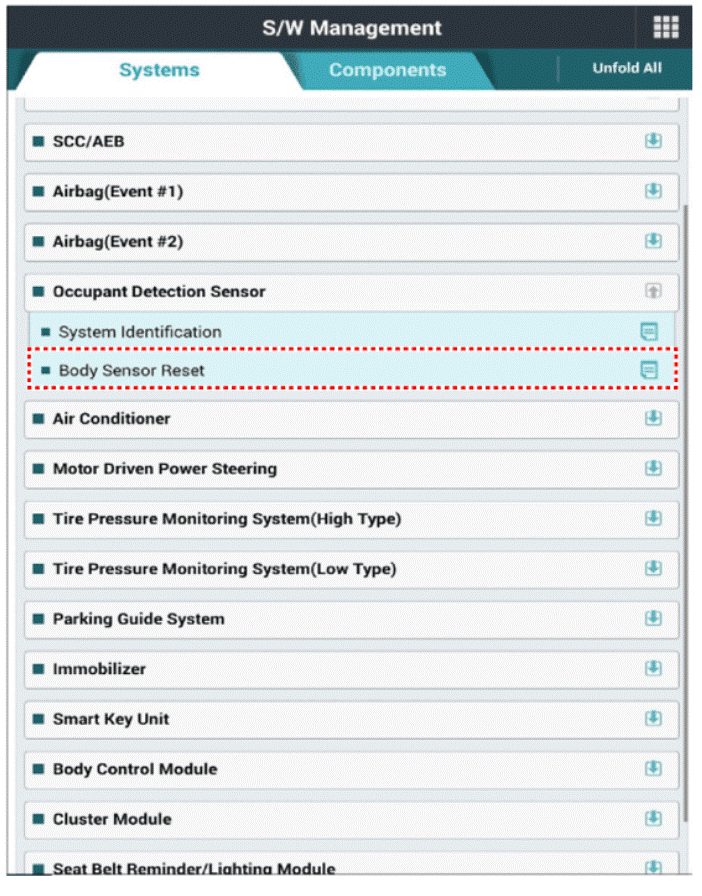

- Be sure to reset ODS with KDS after replacing ODS unit.
