Main Power Window Switch

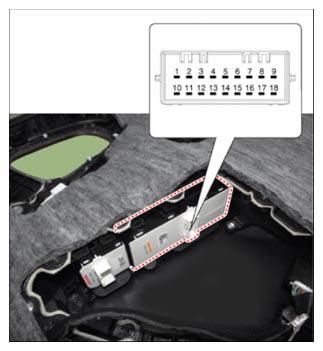

1. Remove the front left door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

2. Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.

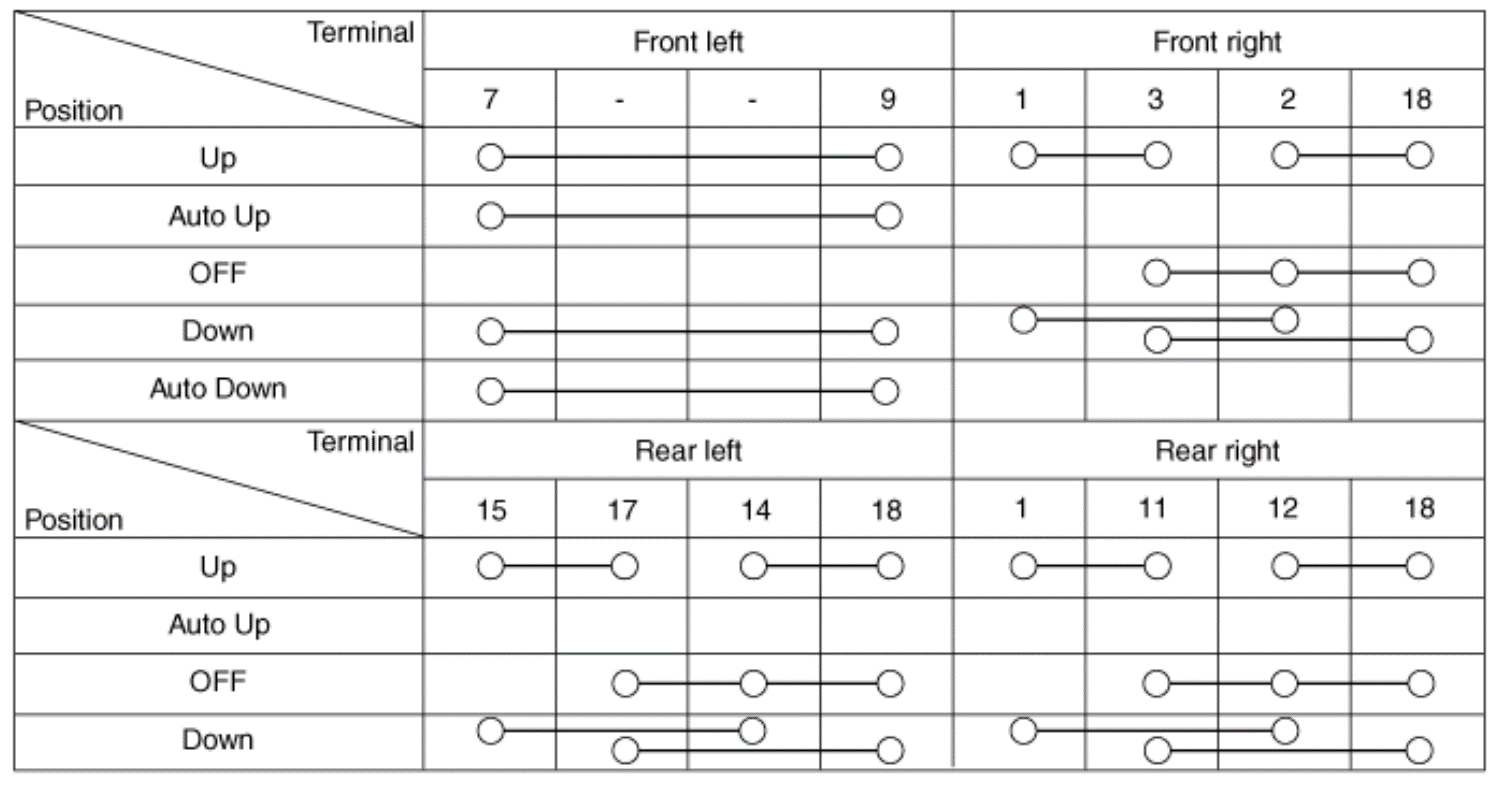

[Front Safety]

Courtesy of KIA MOTORS AMERICA, INC.

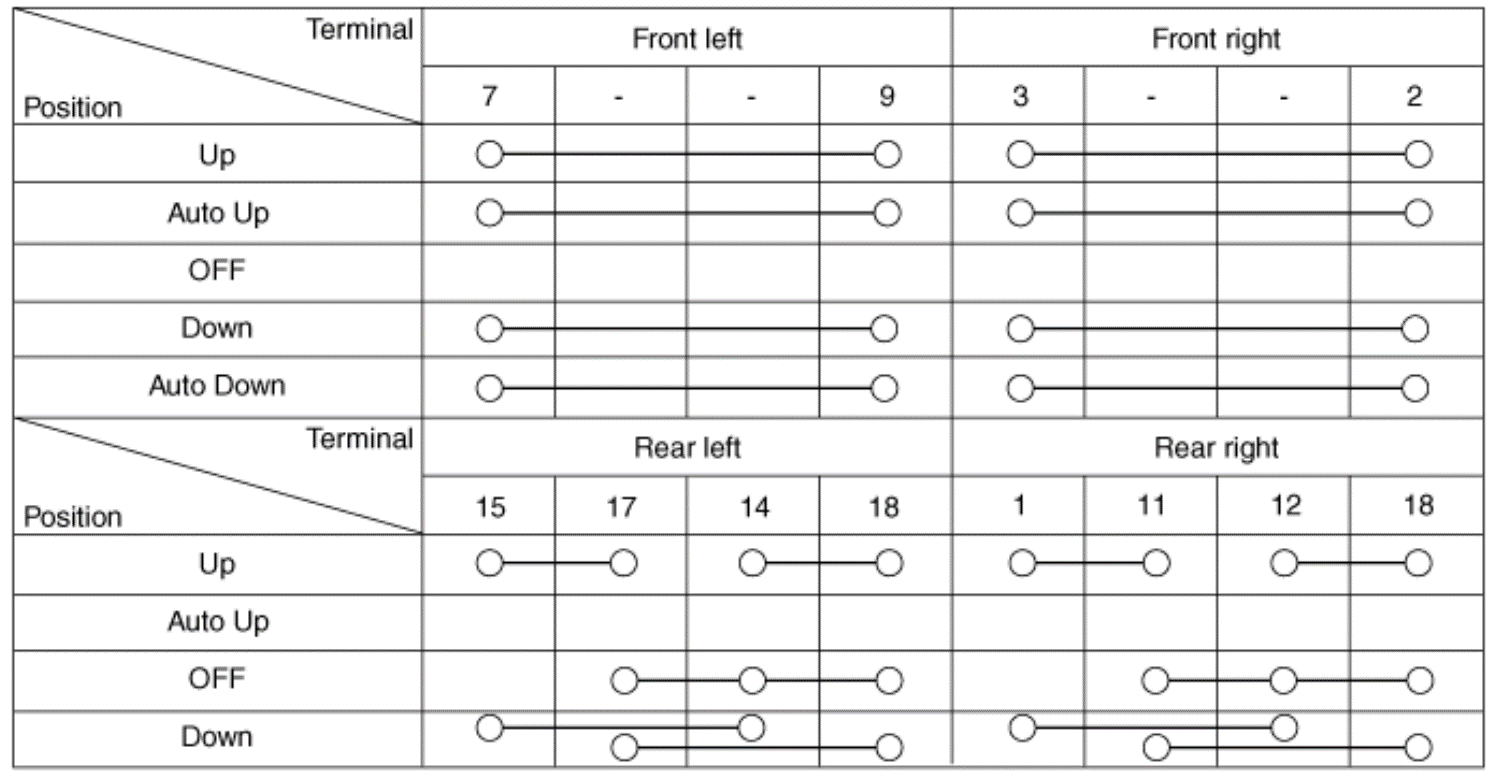

[Driver Safety Power Window Switch]

Courtesy of KIA MOTORS AMERICA, INC.

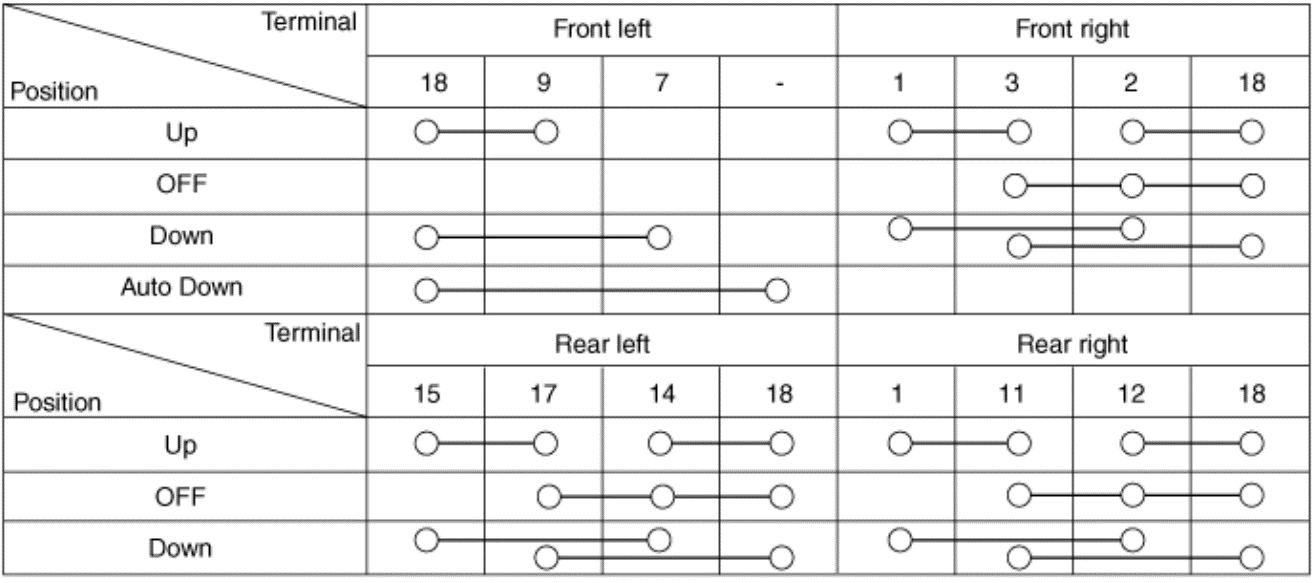

[Non-Safety Power Window Switch]

Courtesy of KIA MOTORS AMERICA, INC.
