Repair Procedures: Removal

Disconnect the negative battery terminal.
NOTE: After disconnecting the cables, wait at least 30 seconds.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

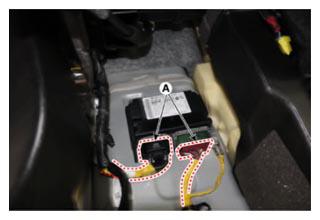

Disconnect the SRSCM connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

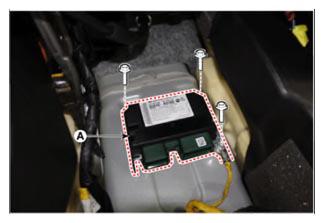

Remove the SRSCM (A) by loosening the bolts.
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lbf.ft)

Courtesy of KIA MOTORS AMERICA, INC.
