Off-Line on KDS

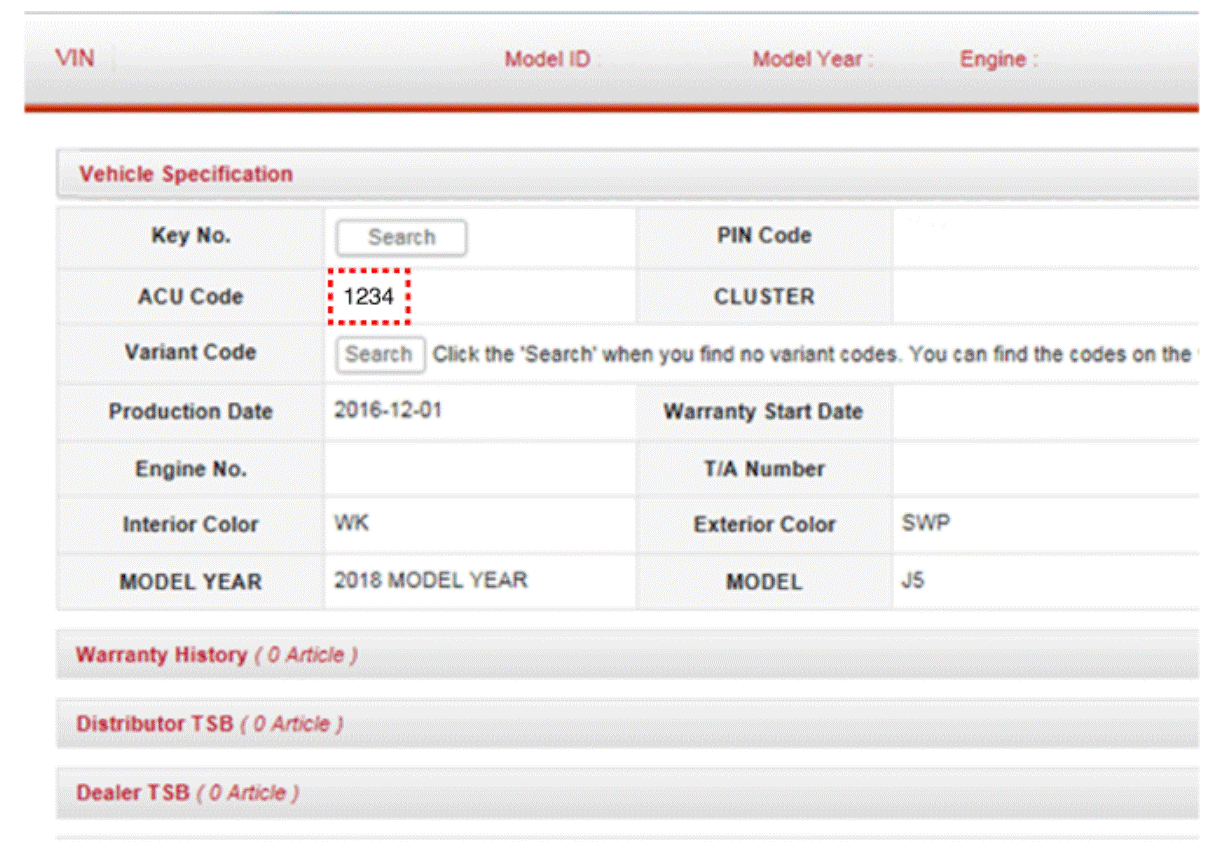

  1. Confirm the ACU variant coding code from the KGIS server after inputting the VIN to the KGIS sever.
    G15715065Courtesy of KIA MOTORS AMERICA, INC.
  2. Switch "OFF" ignition, and connect KDS.
  3. With ignition "ON" And Engine "OFF", select vehicle name and airbag system.
  4. Select Variant coding mode.

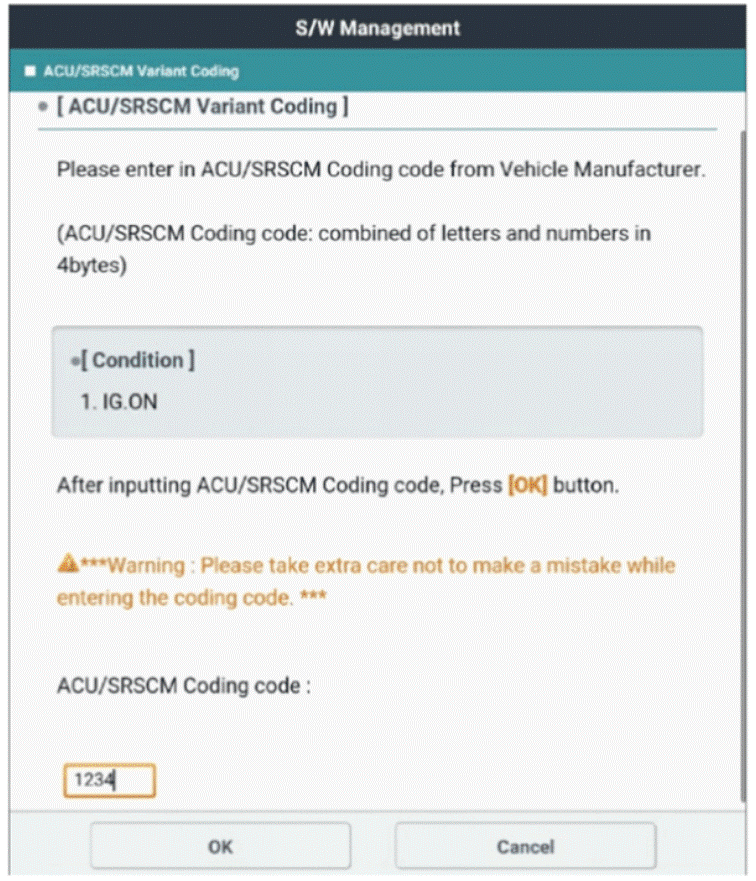

  5. Input the ACU coding code.
    G15715066Courtesy of KIA MOTORS AMERICA, INC.
