Operational Checks

NOTE: All system testing may be performed with a multi-meter and jumper wire at ECU connector.

NOTE: Sequence of connections viewed on harness plug connector to ECU.

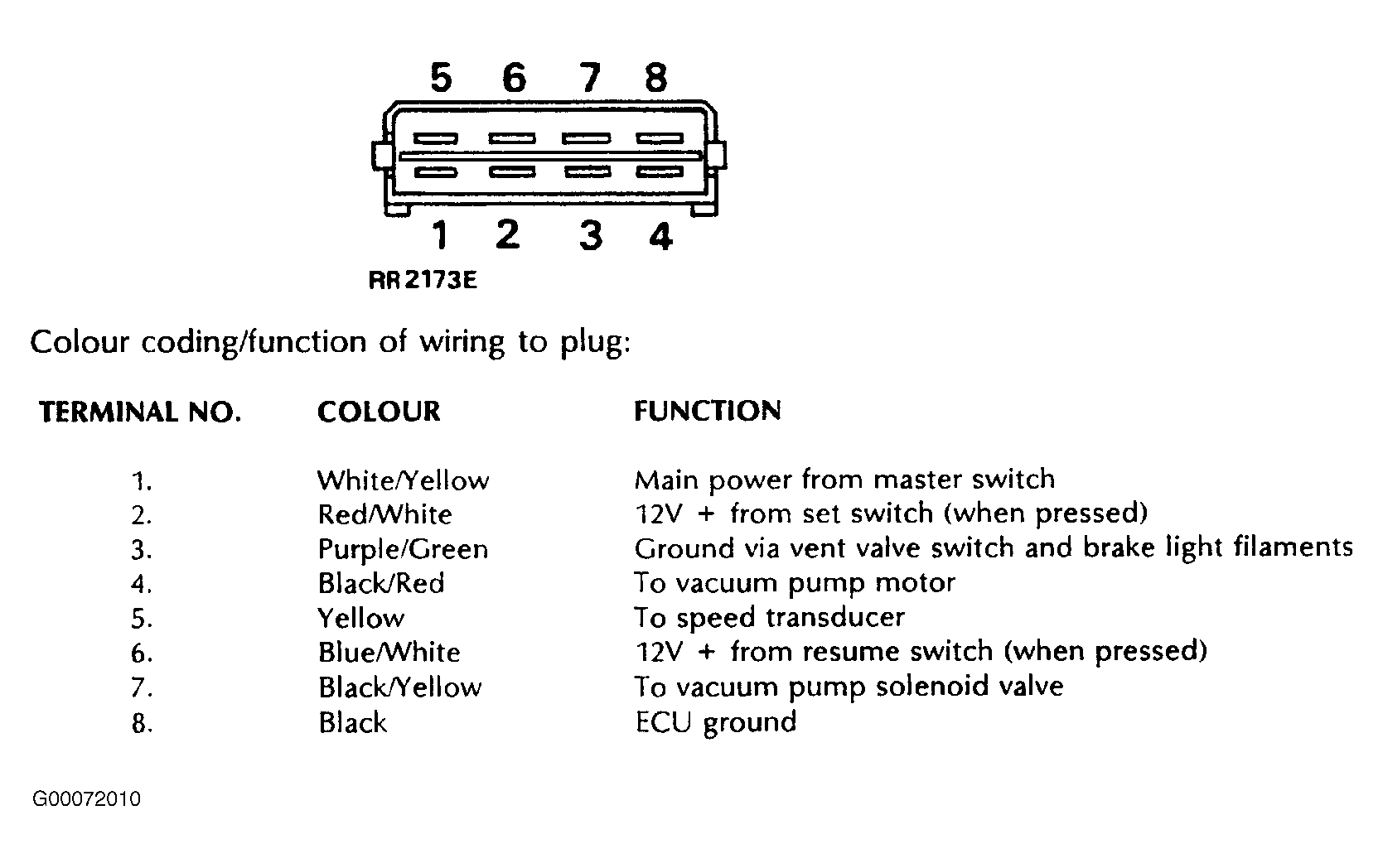

Fig 1: Harness Plug Connector To ECU

Courtesy of LAND ROVER NORTH AMERICA, INC.
