Control Units

CONTROL UNITS

Component Component Location

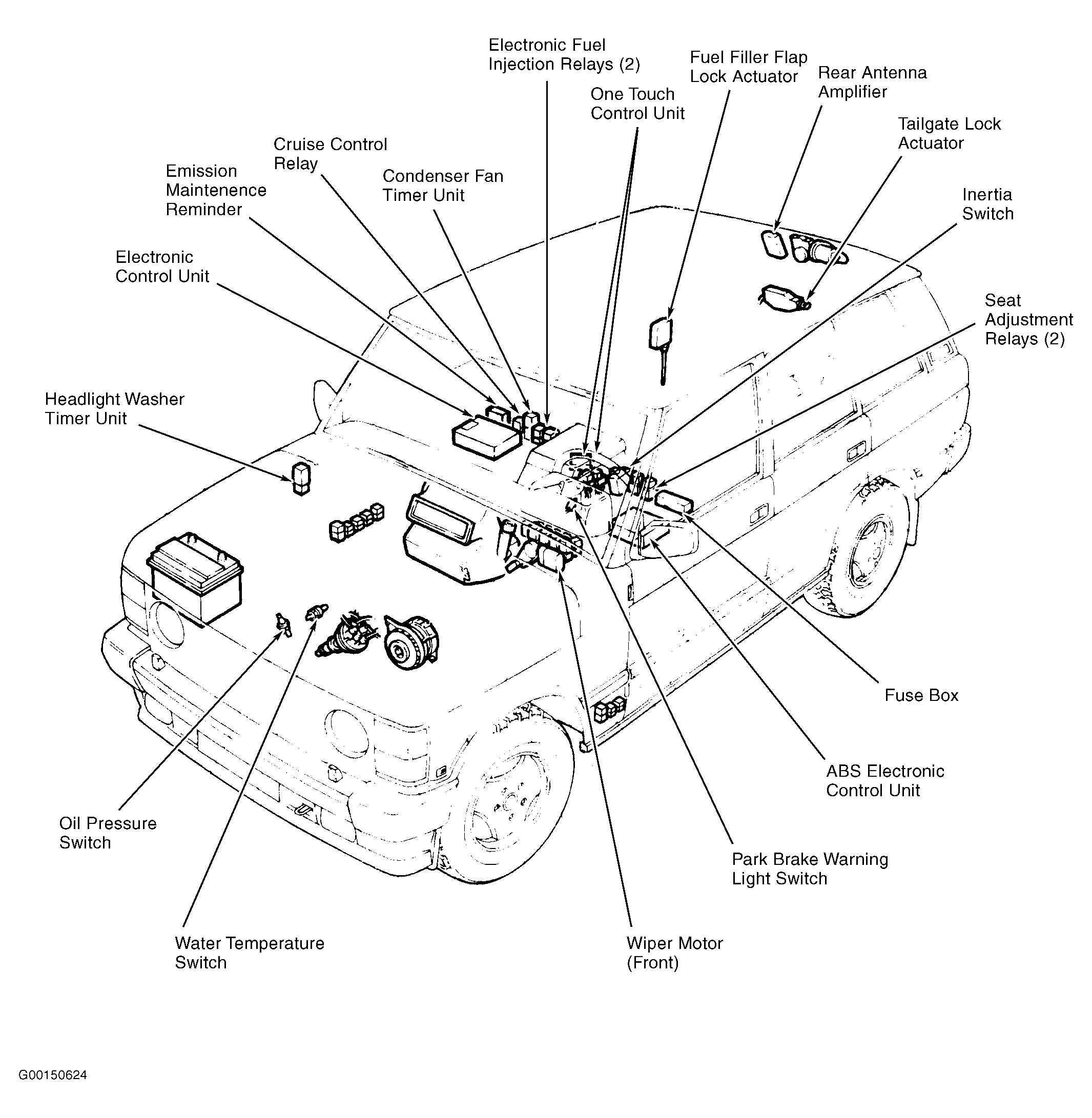

ABS Electronic Control Unit Under left front seat. See Figure .
Central Door Locking Control Unit On steering column support.
Electronic Control Unit Under right front seat. See Figure .
Low Oil Level Warning Logic Unit Under left side of dash.
One-Touch Control Unit Under rear of center console. See Figure .
