Power Steering System

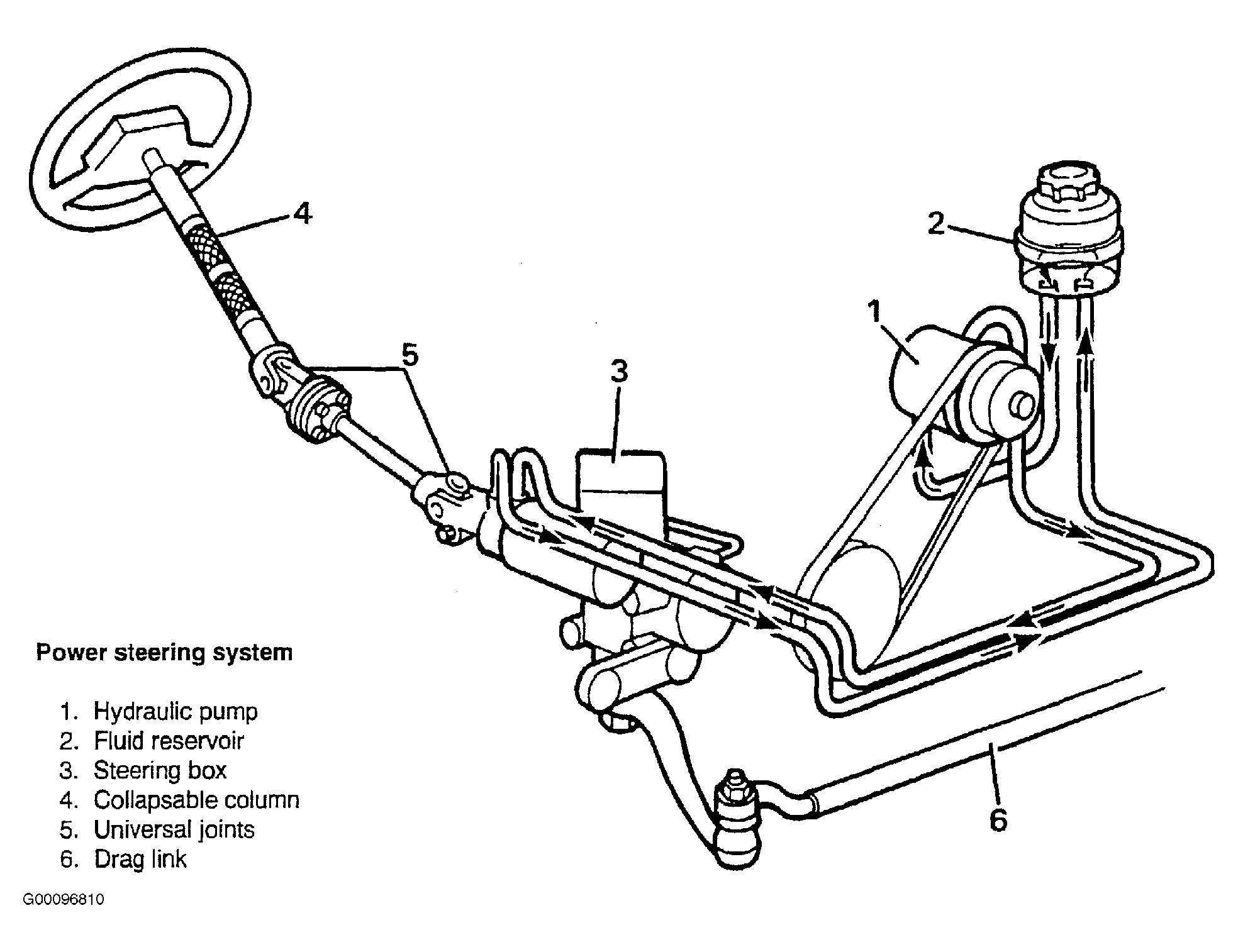

The power steering system comprises an hydraulic pump which is belt driven from the engine and supplied with fluid from a reservoir that also acts as a cooler. See Fig 1 . The steering box houses a self neutralizing rotary valve, which is part of the worm/valve assembly and an hydraulic piston/rack to assist the mechanical operation. The rotary valve which is operated by movement of the steering wheel, directs fluid pressure to the appropriate side of the hydraulic piston/rack to provide assistance.
