Component Index

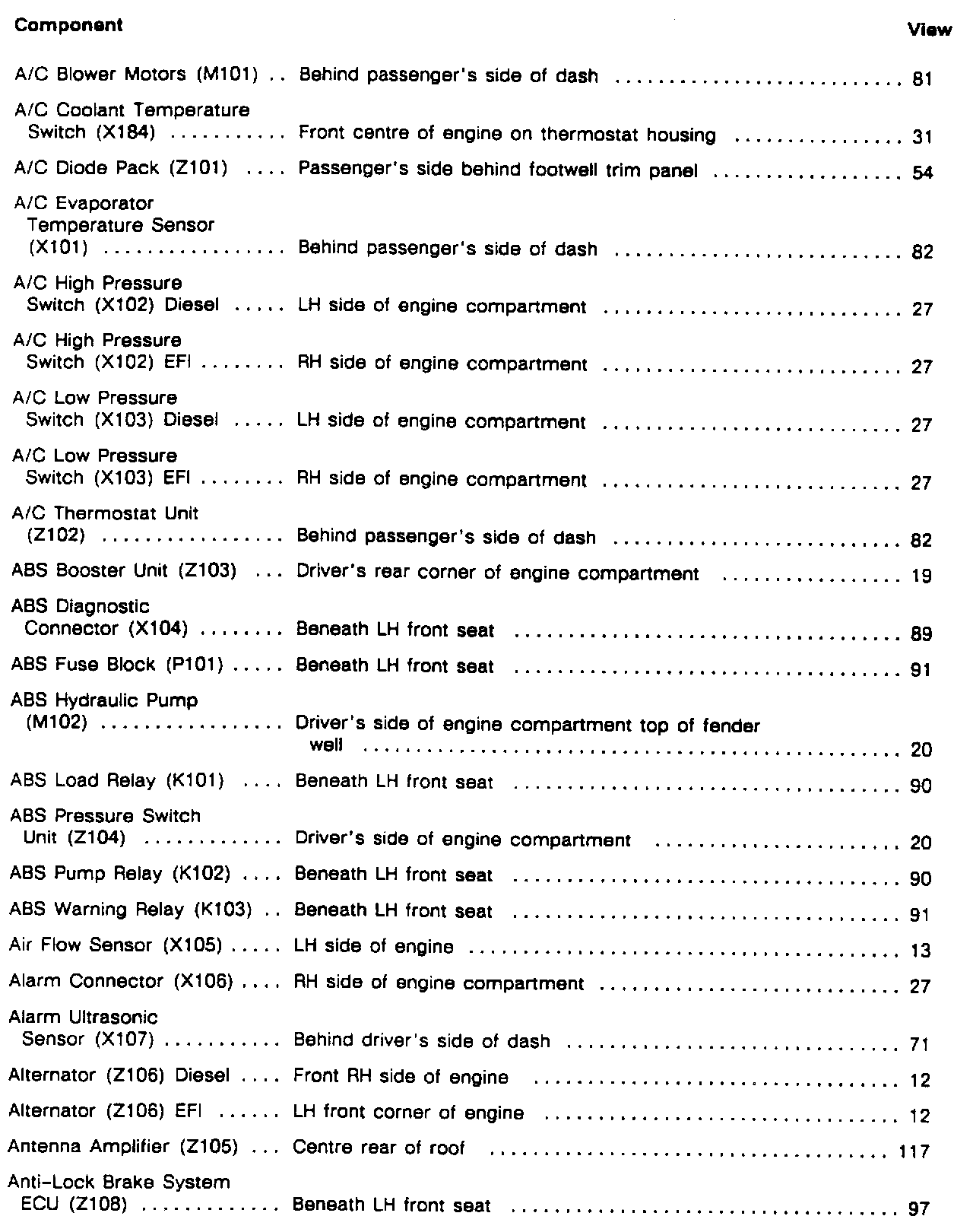

A/C Blower Motors - Anti-lock Brake System ECU:

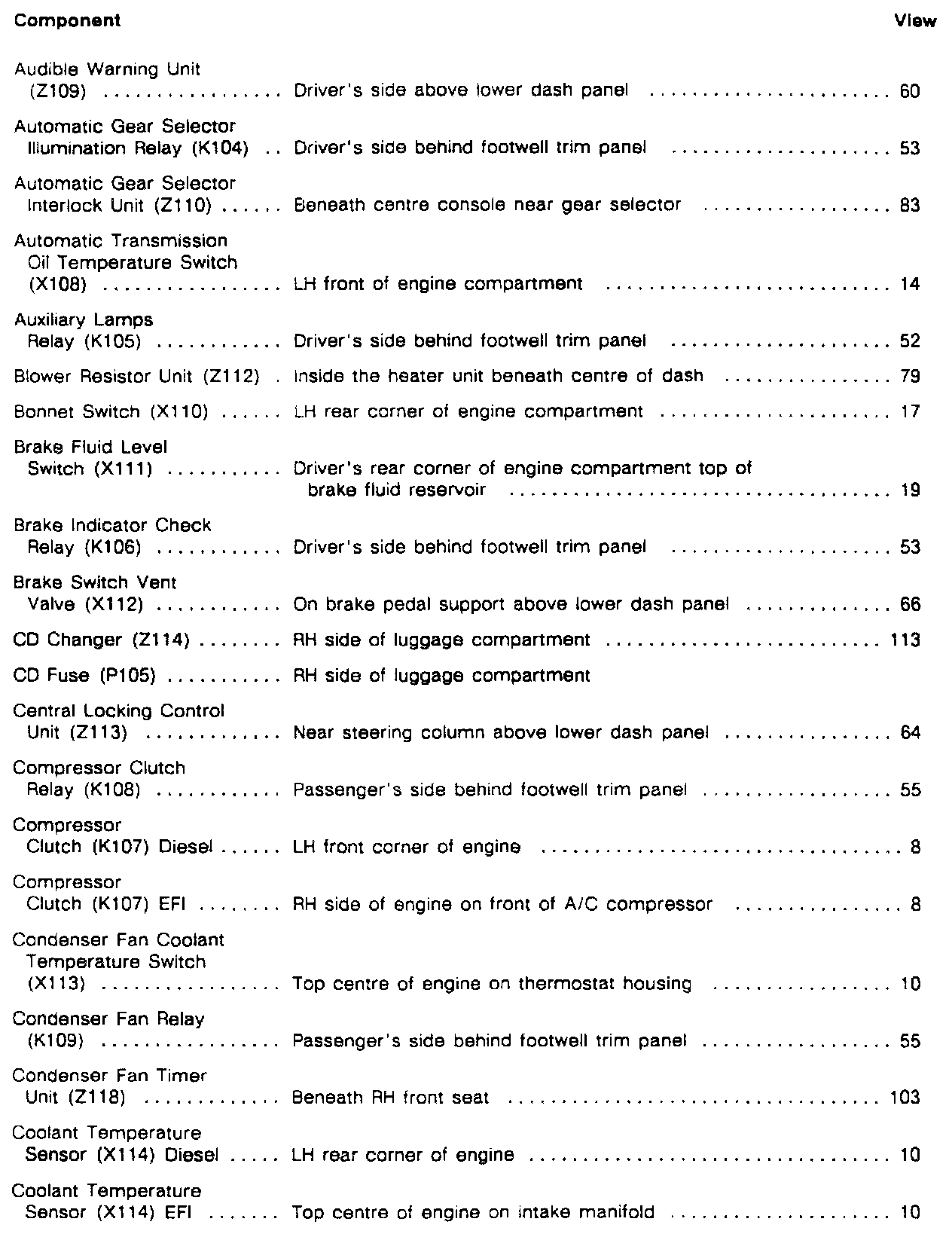

Audible Warning Unit - Coolant Temperature Sensor (EFI):

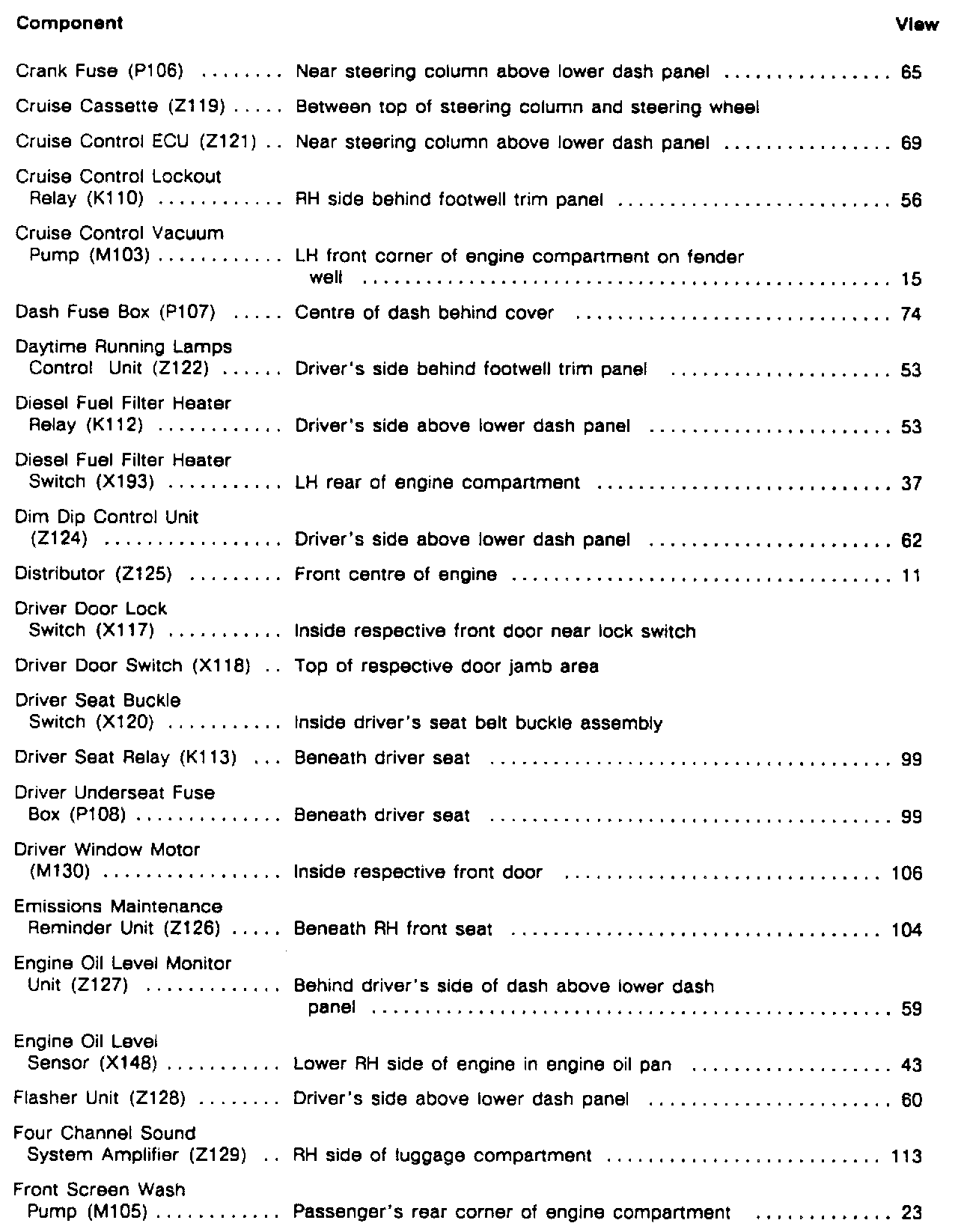

Crank Fuse - Front Screen Wash Pump:

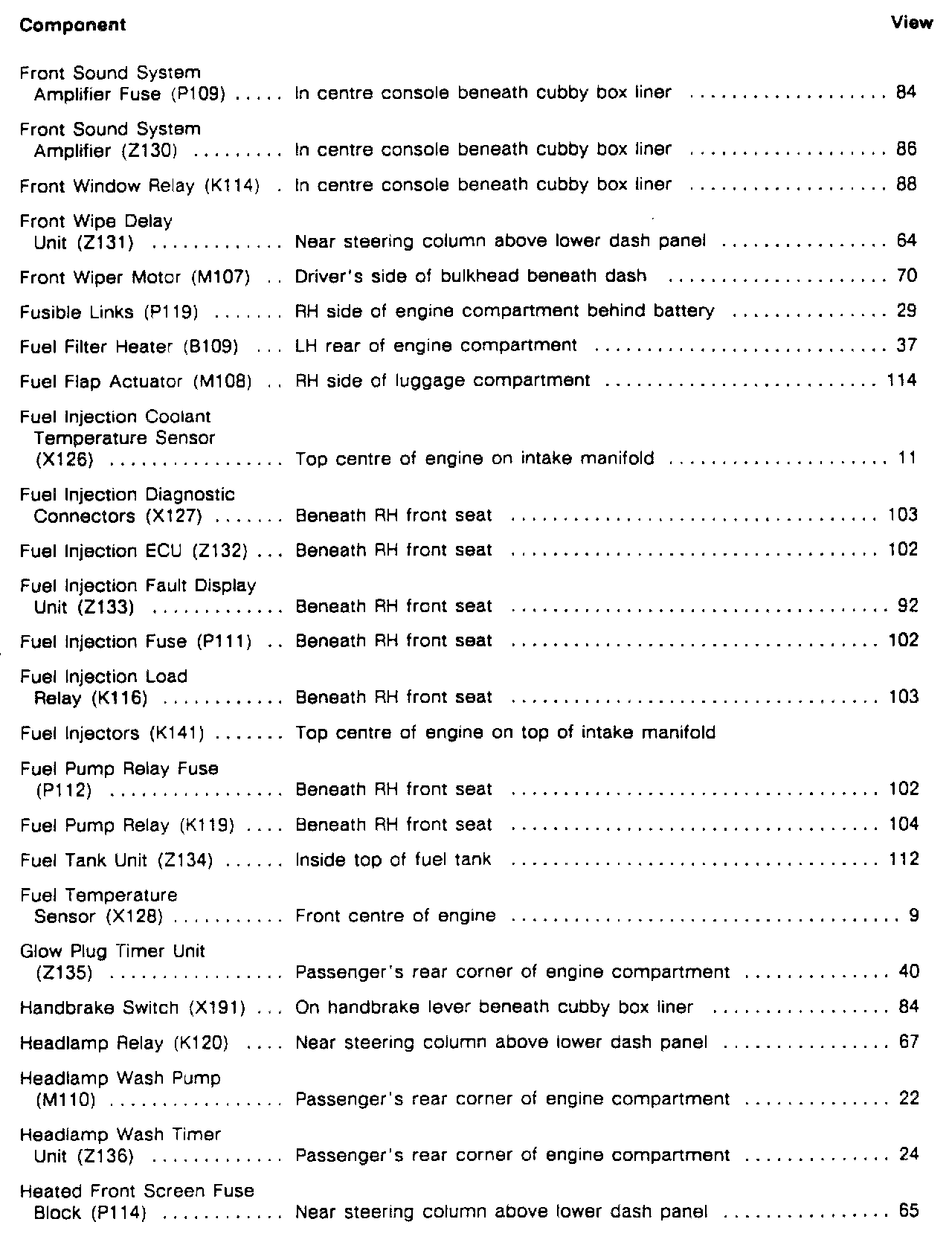

Front Sound System Amplifier Fuse - Heated Front Screen Fuse Block:

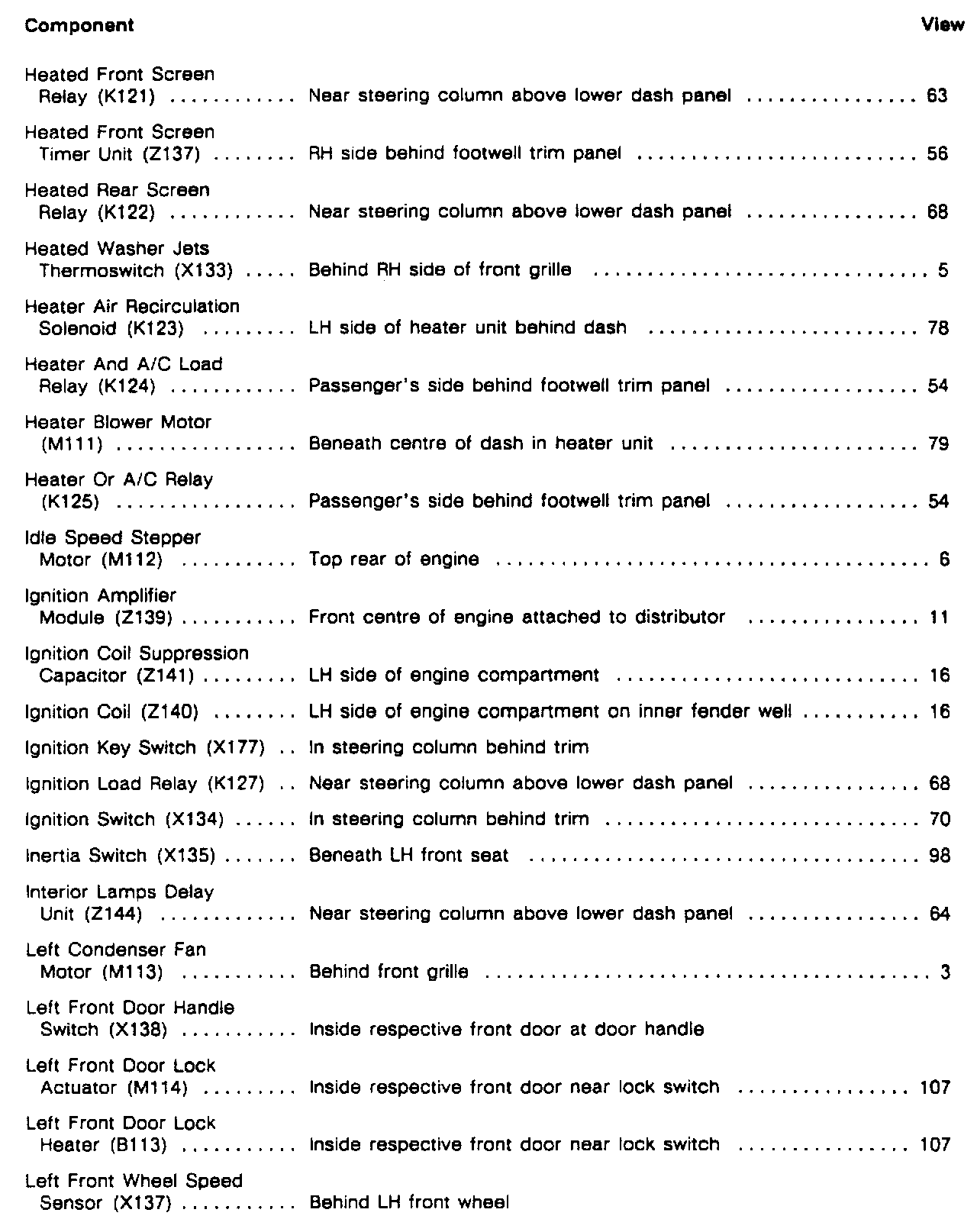

Heated Front Screen Relay - Left Front Wheel Speed Sensor:

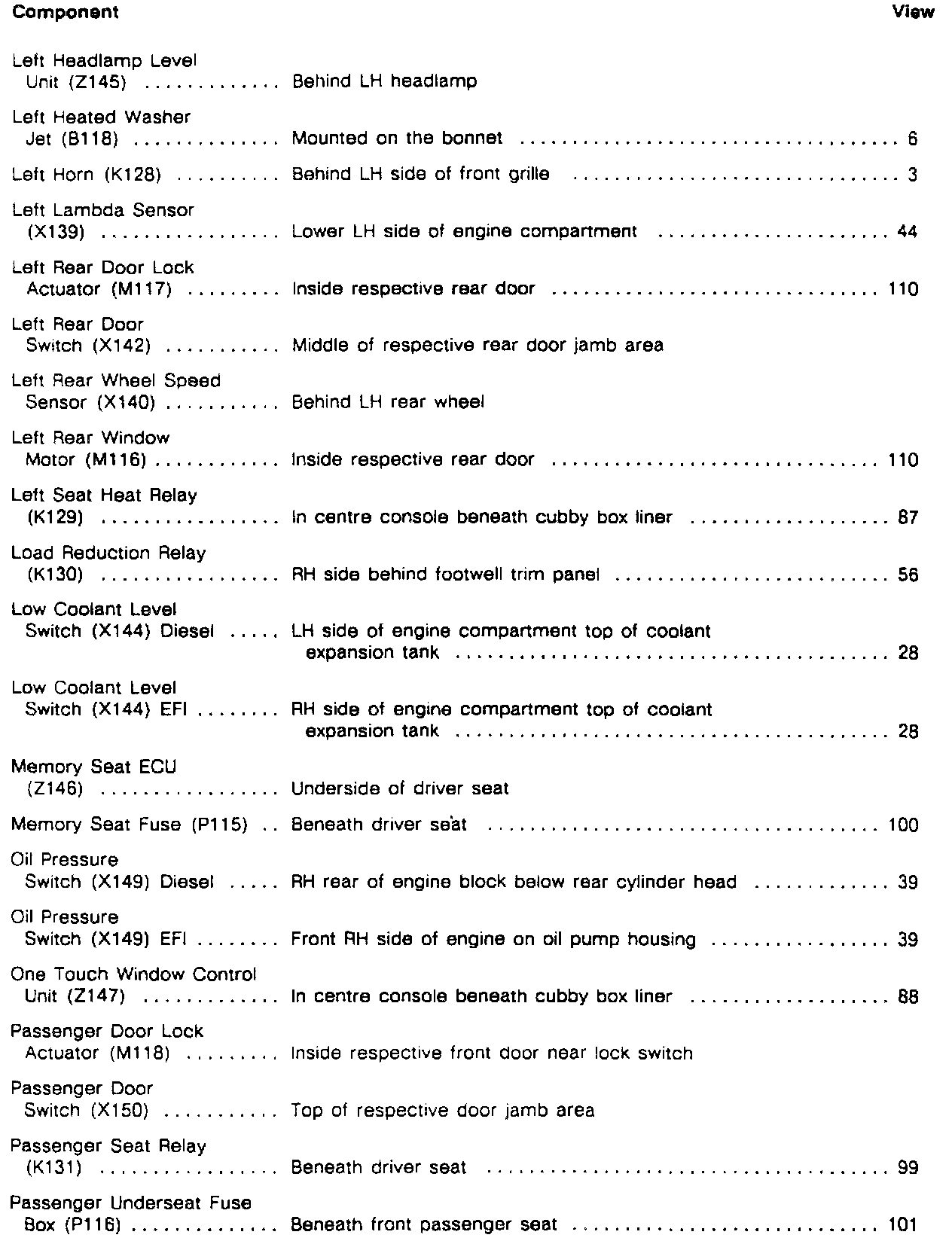

Left Headlamp Level Unit - Passenger Underseat Fuse Box:

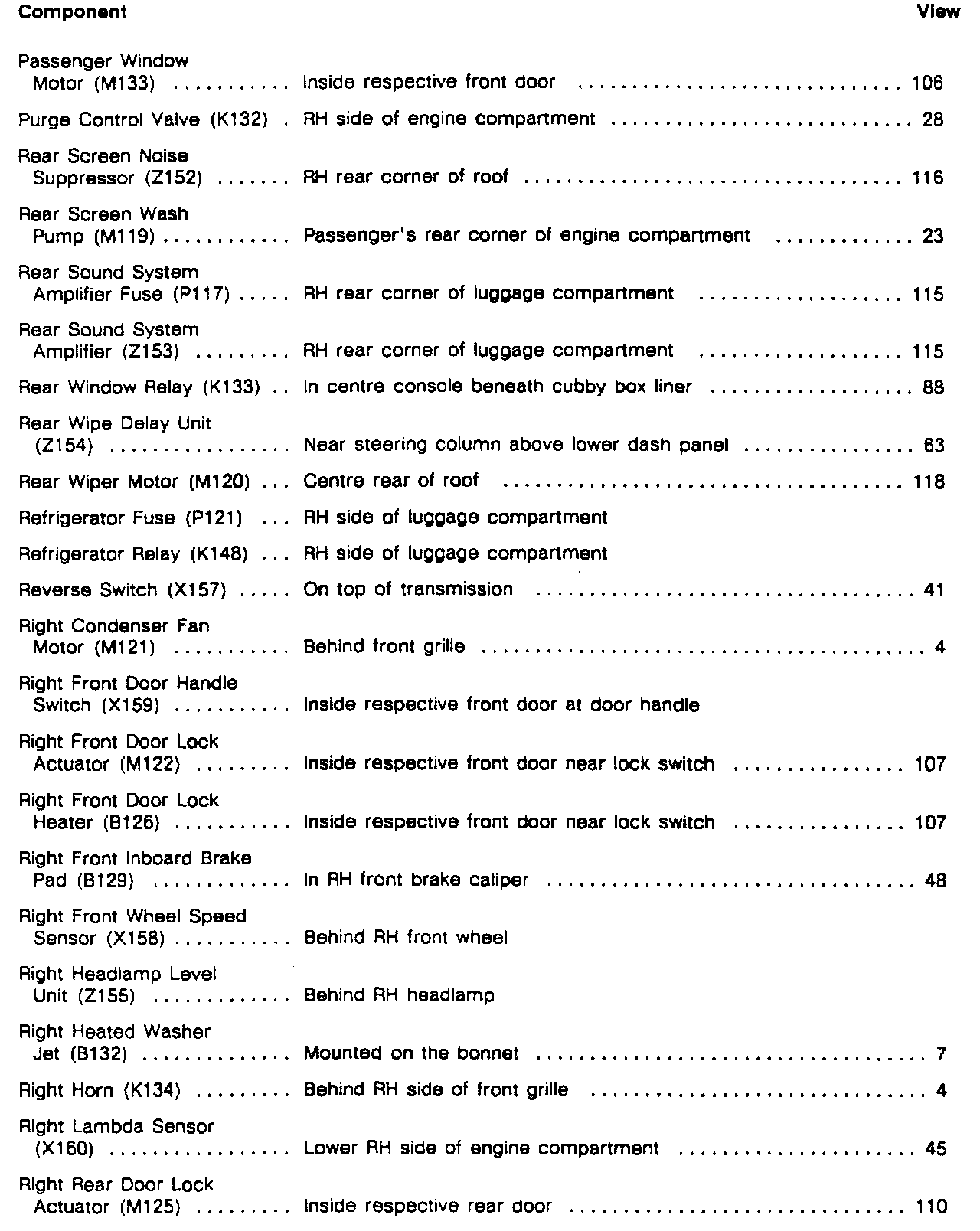

Passenger Window Motor - Right Rear Door Lock Actuator:

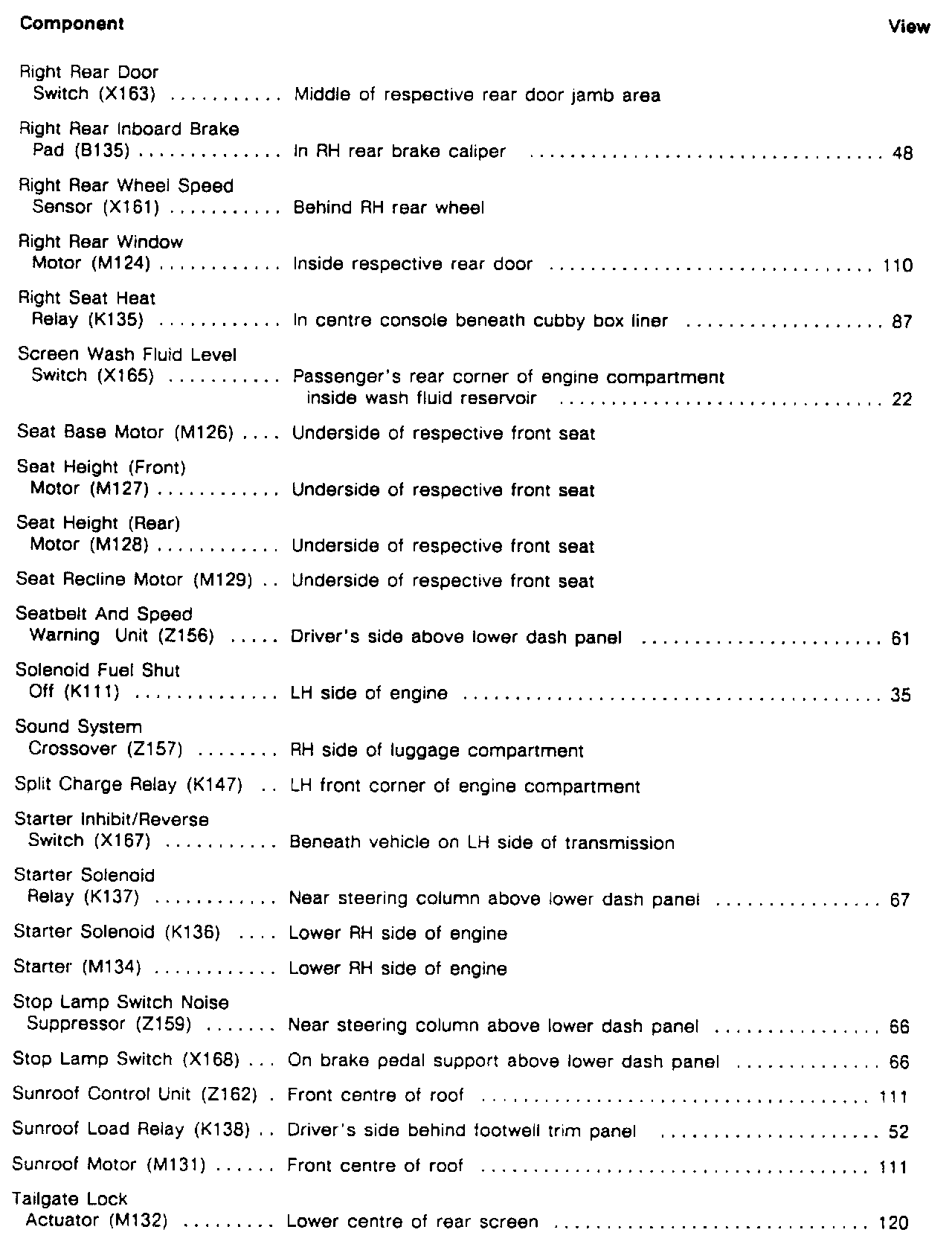

Right Rear Door Switch - Tailgate Lock Actuator:

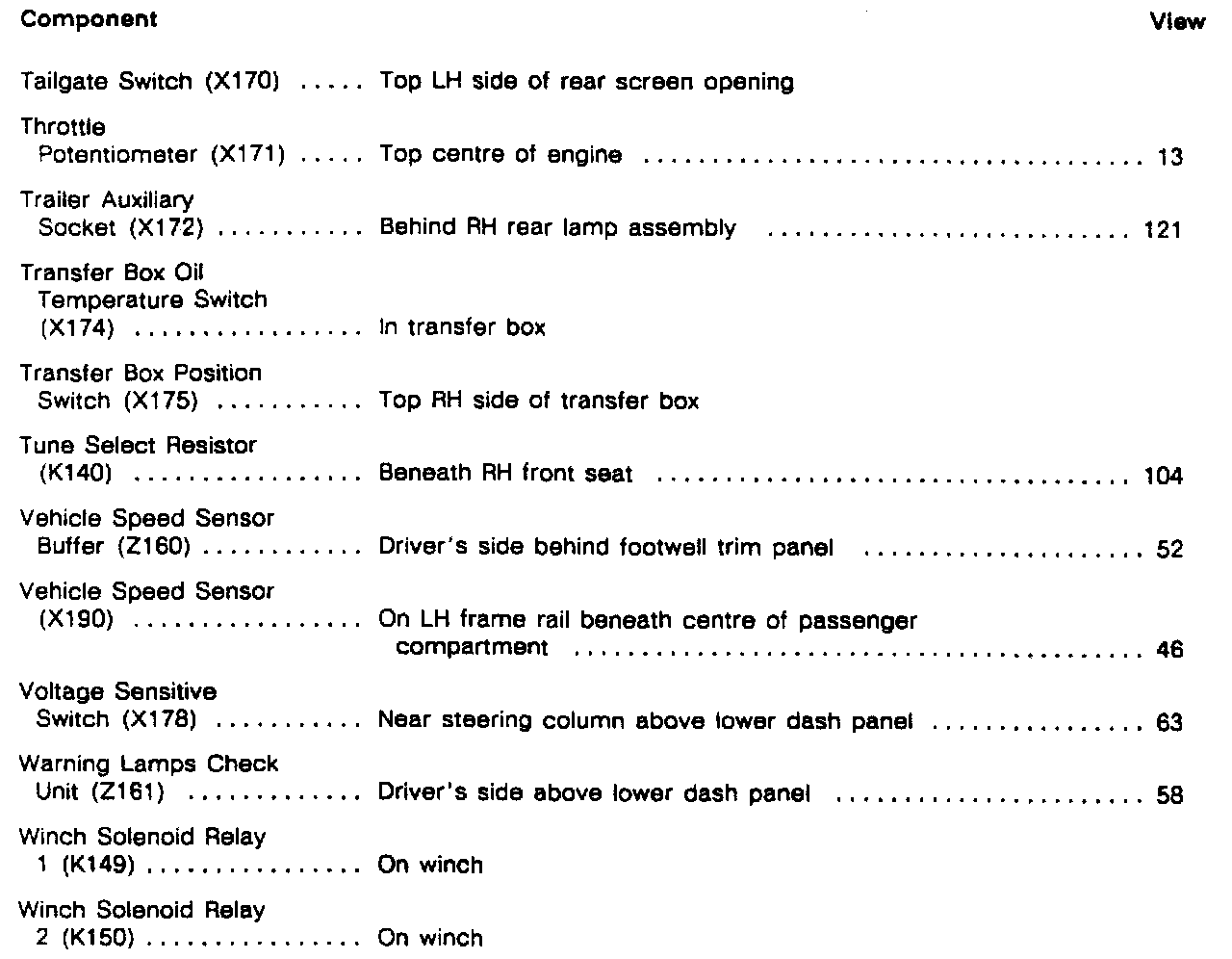

Tailgate Switch - Winch Solenoid Relay 2:
