Test B

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

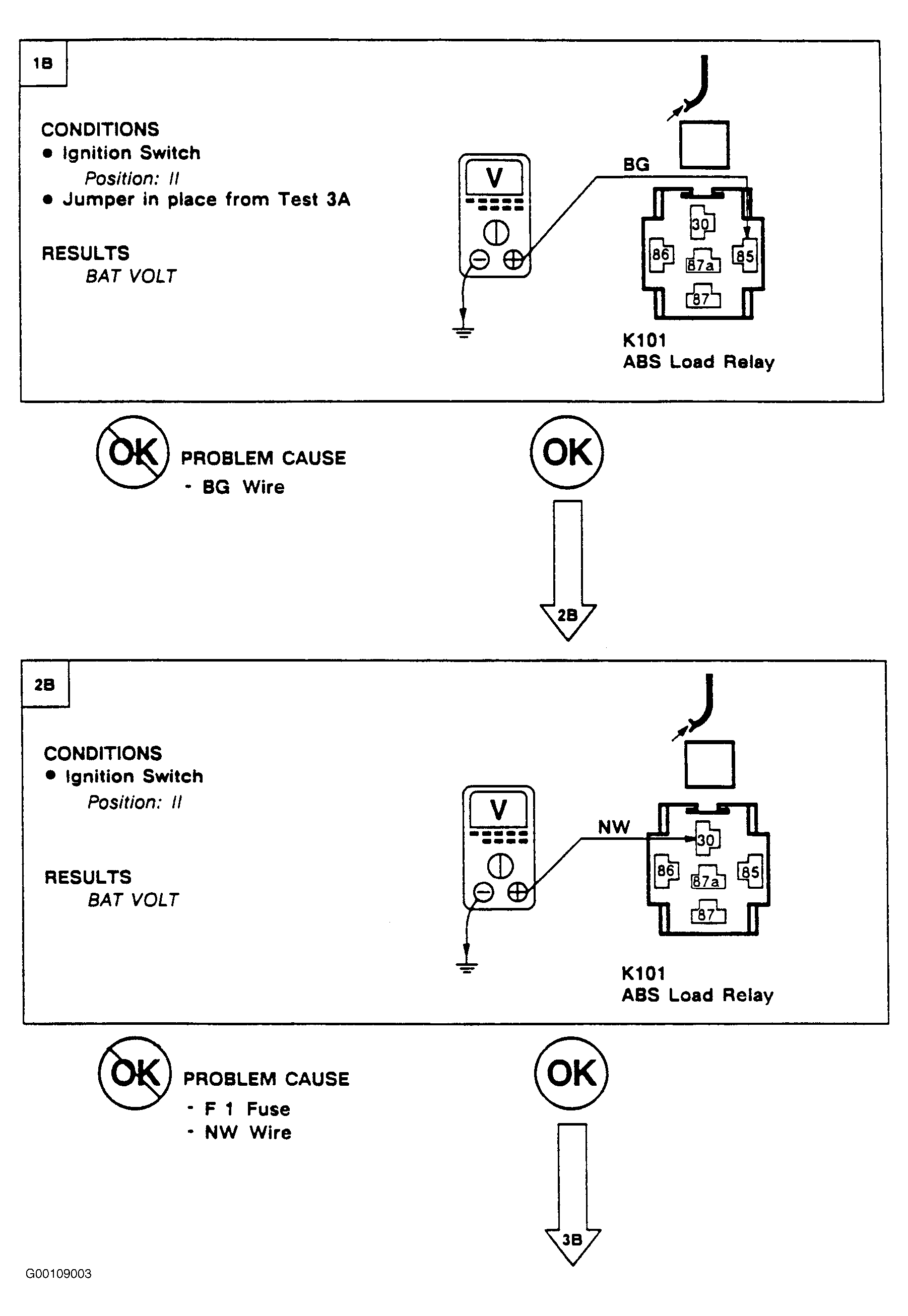

Fig 1: Test B (Steps 1B & 2B)

Courtesy of LAND ROVER NORTH AMERICA, INC.

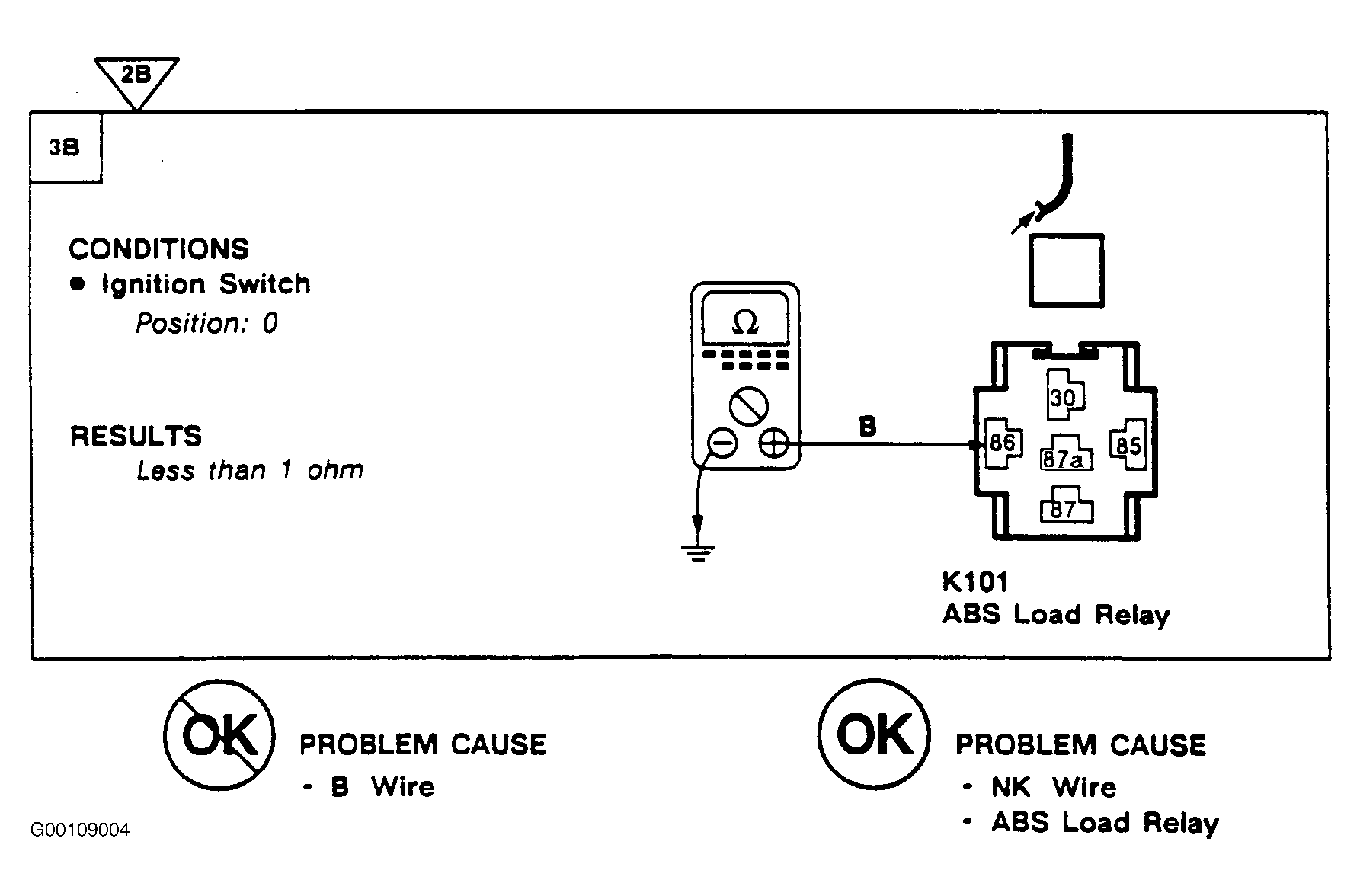

Fig 2: Test B (Step 3B)

Courtesy of LAND ROVER NORTH AMERICA, INC.
