Key to Tests Using Multimeter

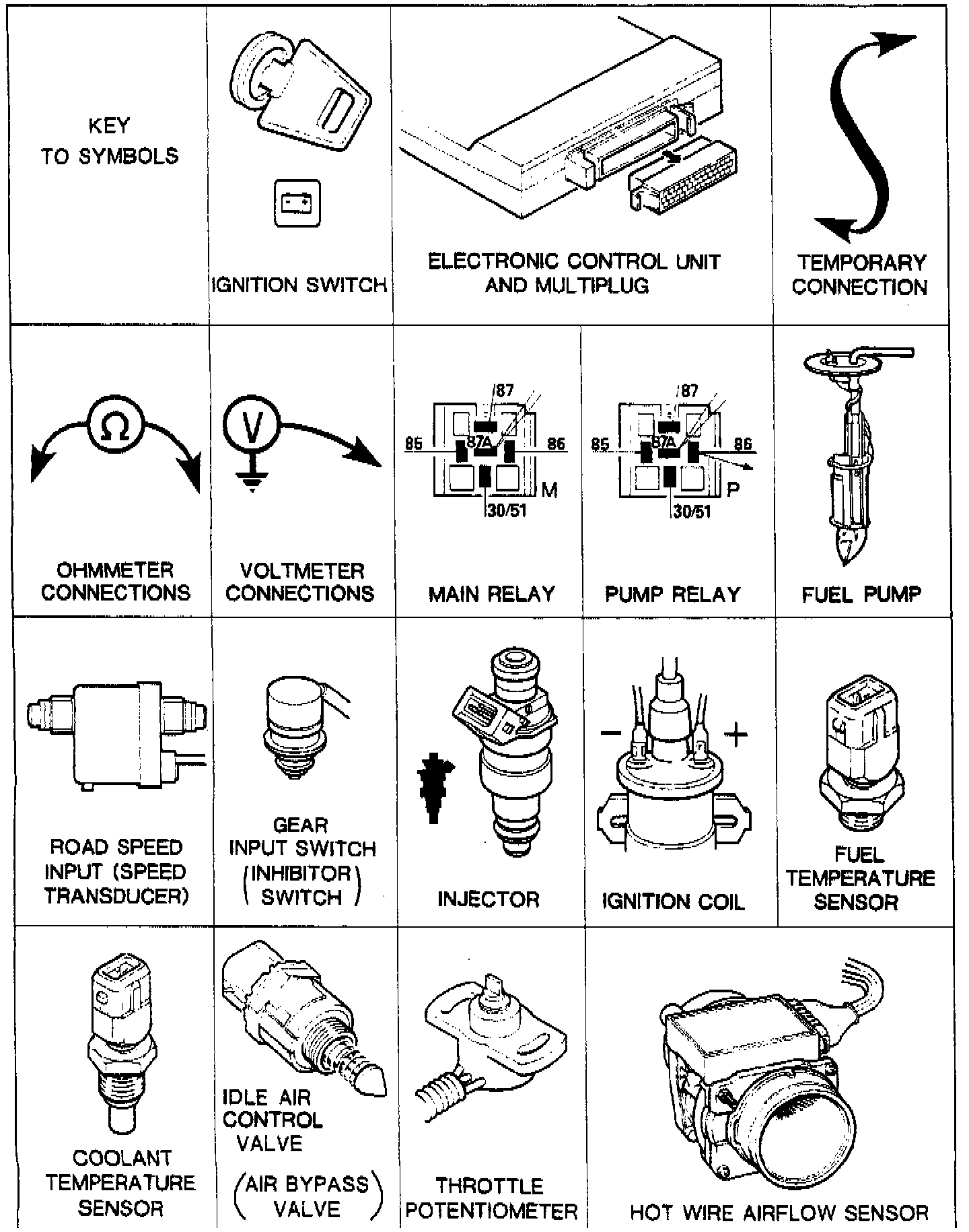

Key To Test Symbols:

KEY TO TESTS USING MULTIMETER
The following continuity tests are intended as a guide to identifying where a fault may be within a circuit. Reference should be made to the fuel injection circuit diagram for full circuit information.
