General Specifications

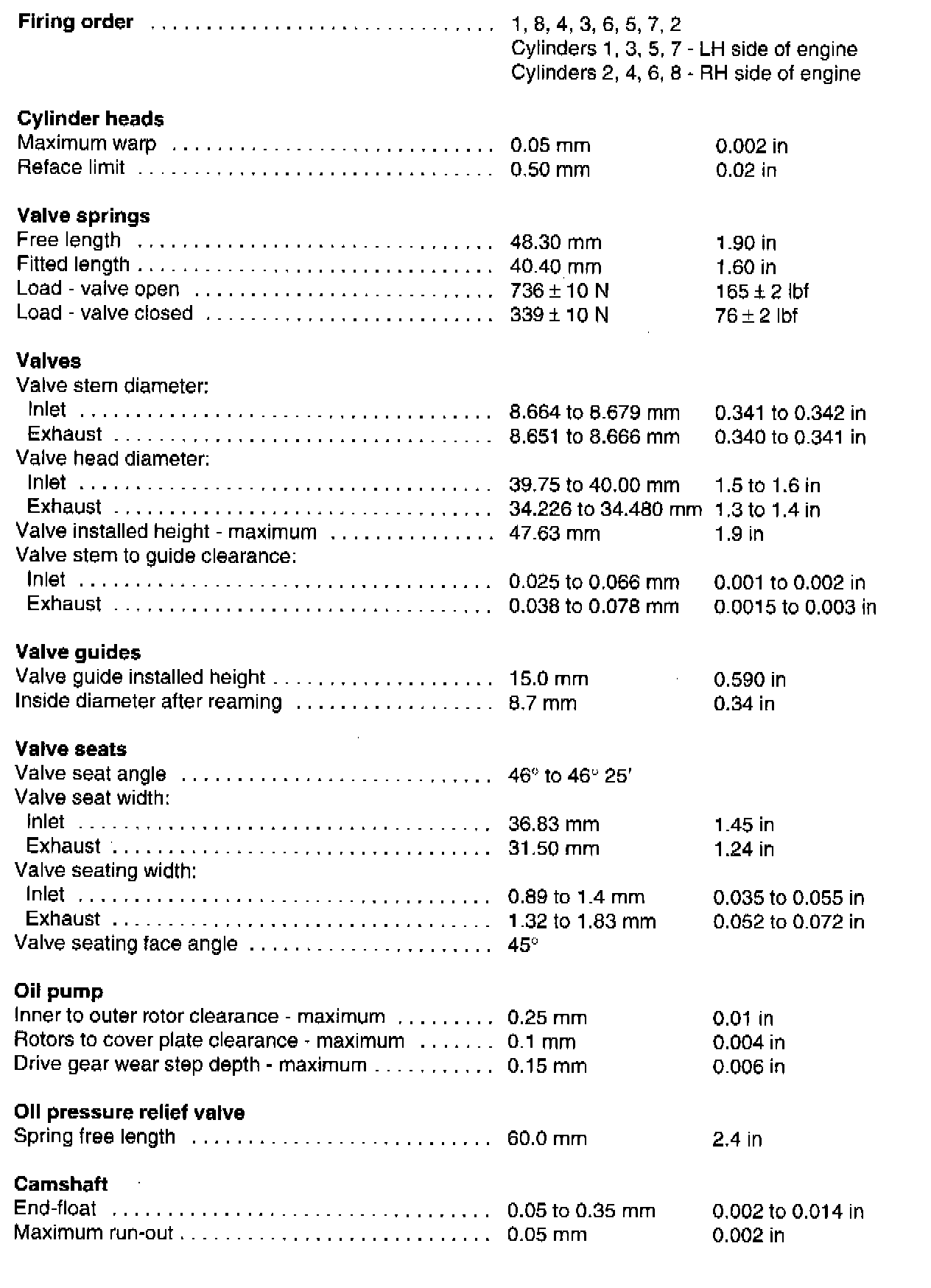

Engine Technical Specifications - Part I:

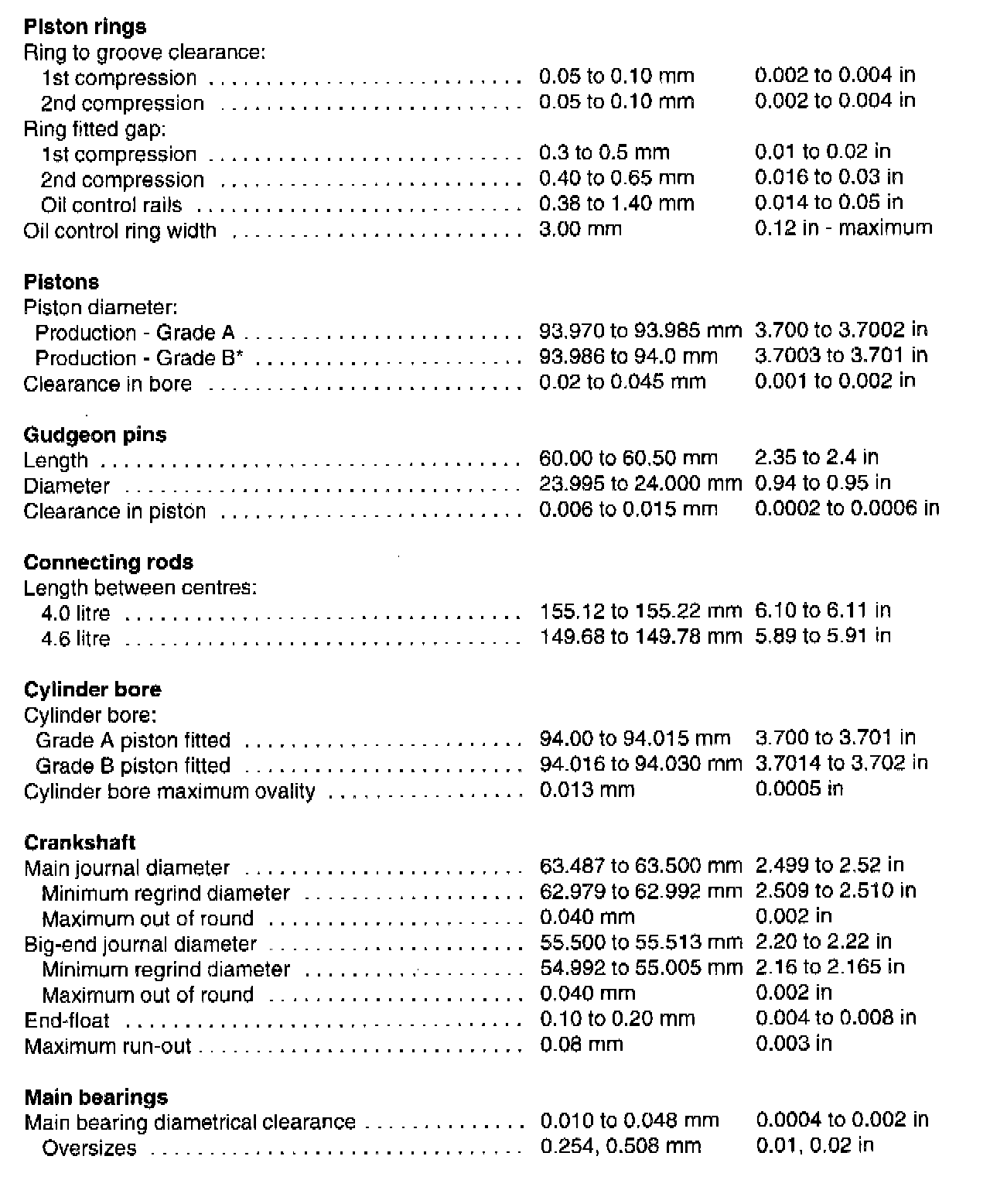

Engine Technical Specifications - Part II:

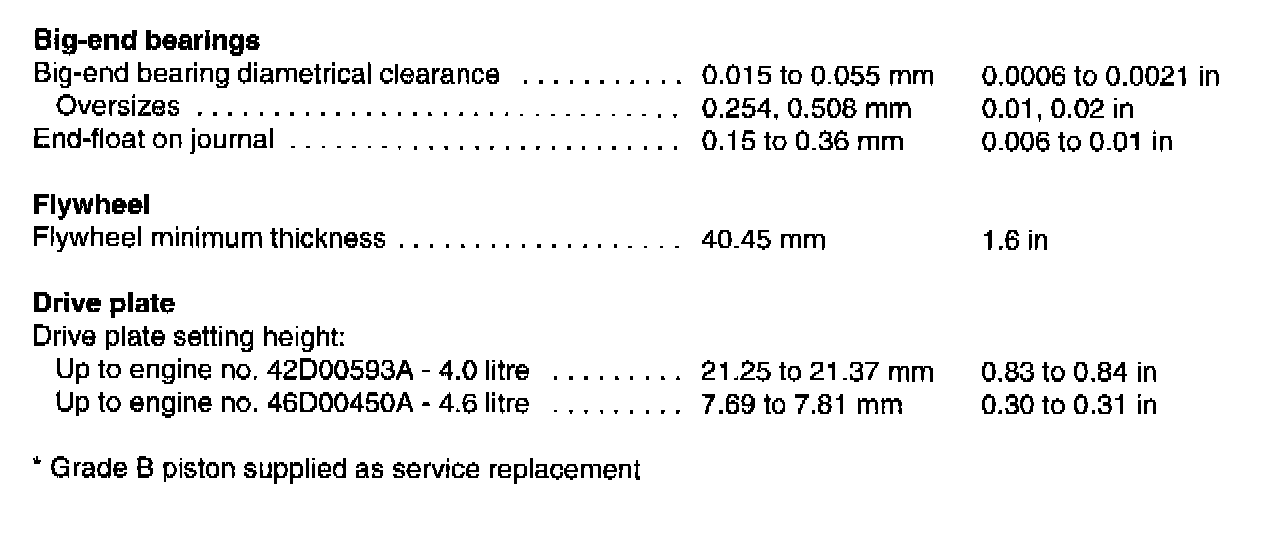

Engine Technical Specifications - Part III:
