Vacuum Hose Routing

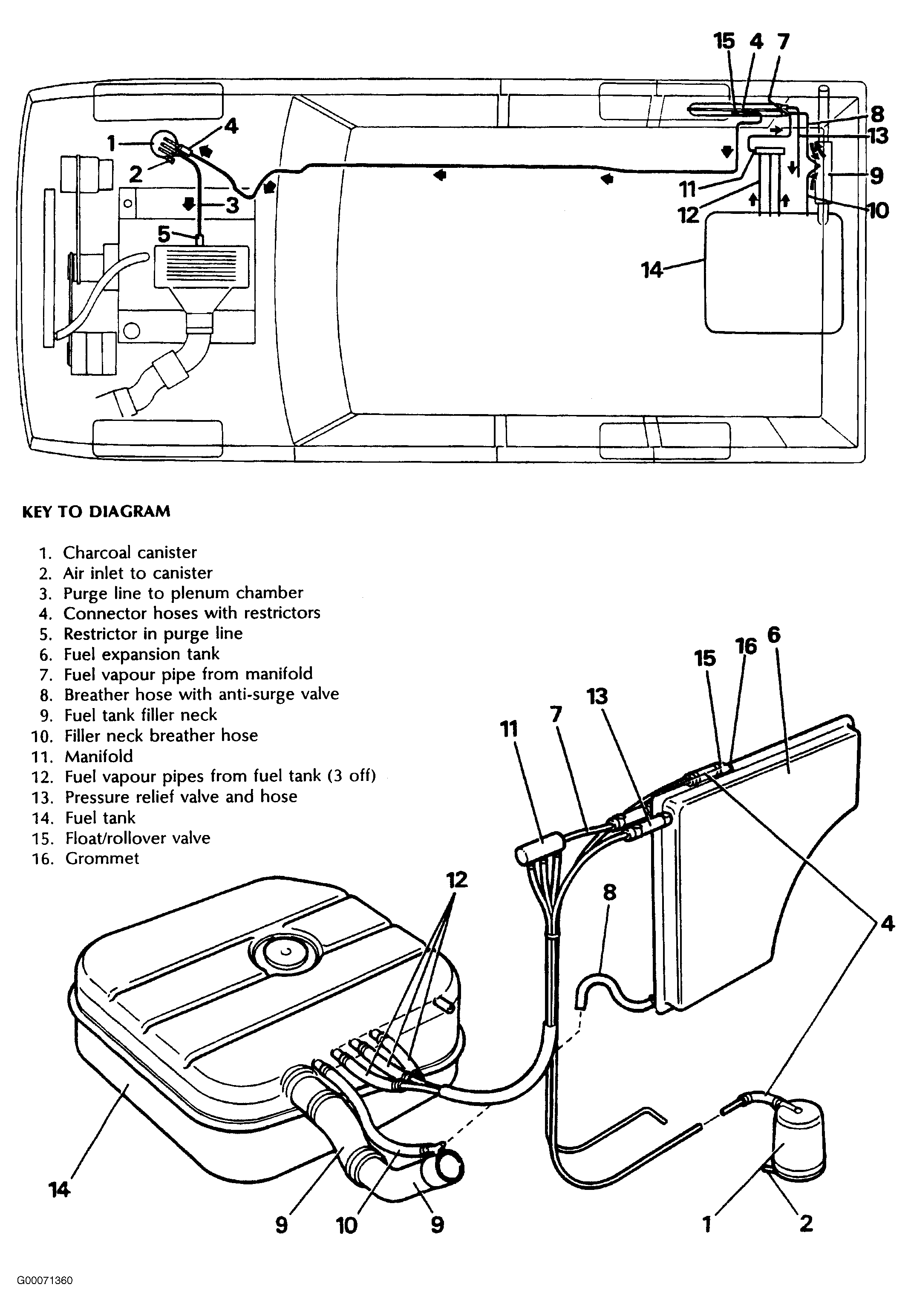

Fig 1: Vacuum Hose Routing (1987-90 Range Rover)
Courtesy of LAND ROVER NORTH AMERICA, INC.

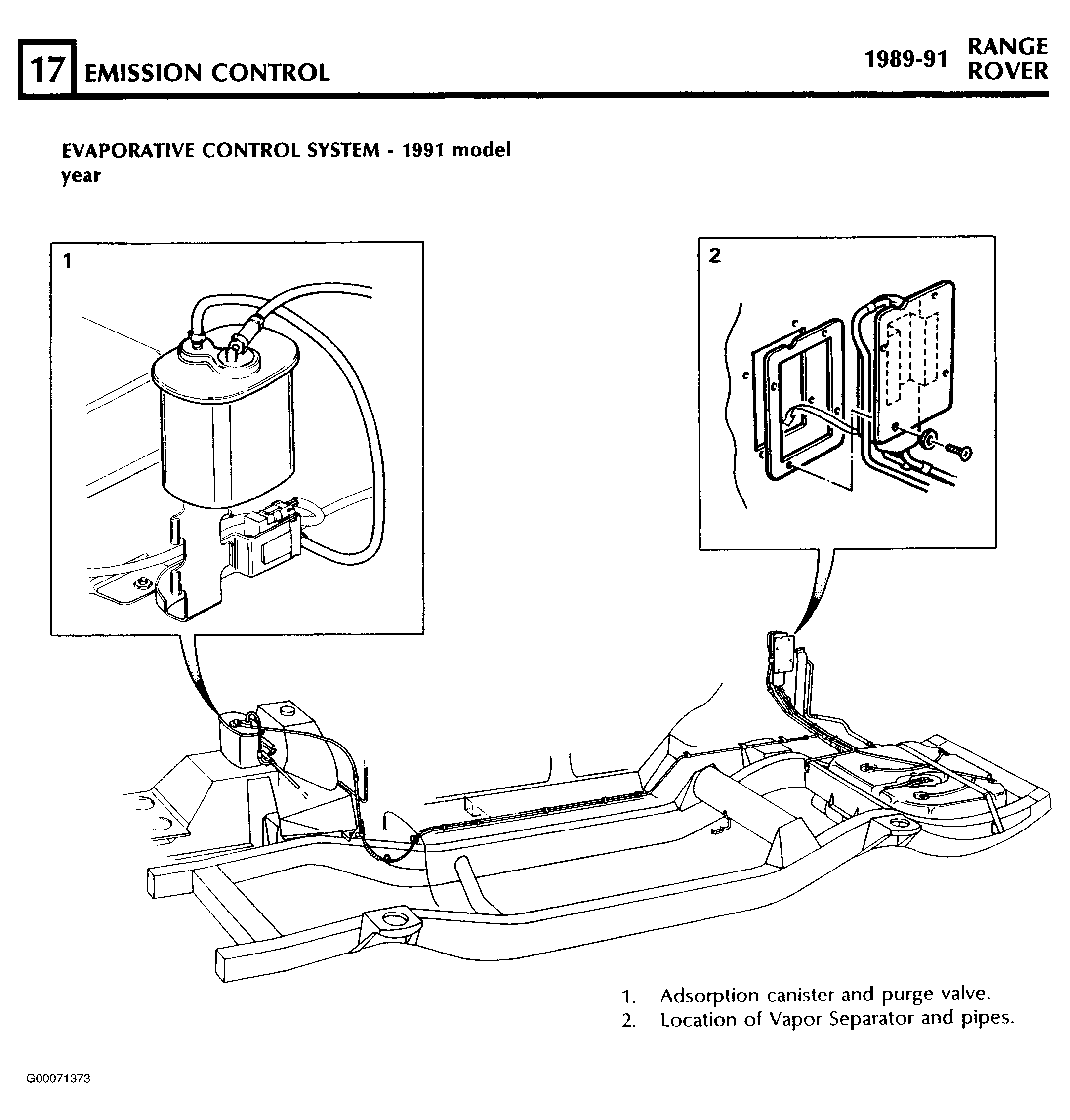

Fig 2: Vacuum Hose Routing (1991-92 Range Rover)
Courtesy of LAND ROVER NORTH AMERICA, INC.

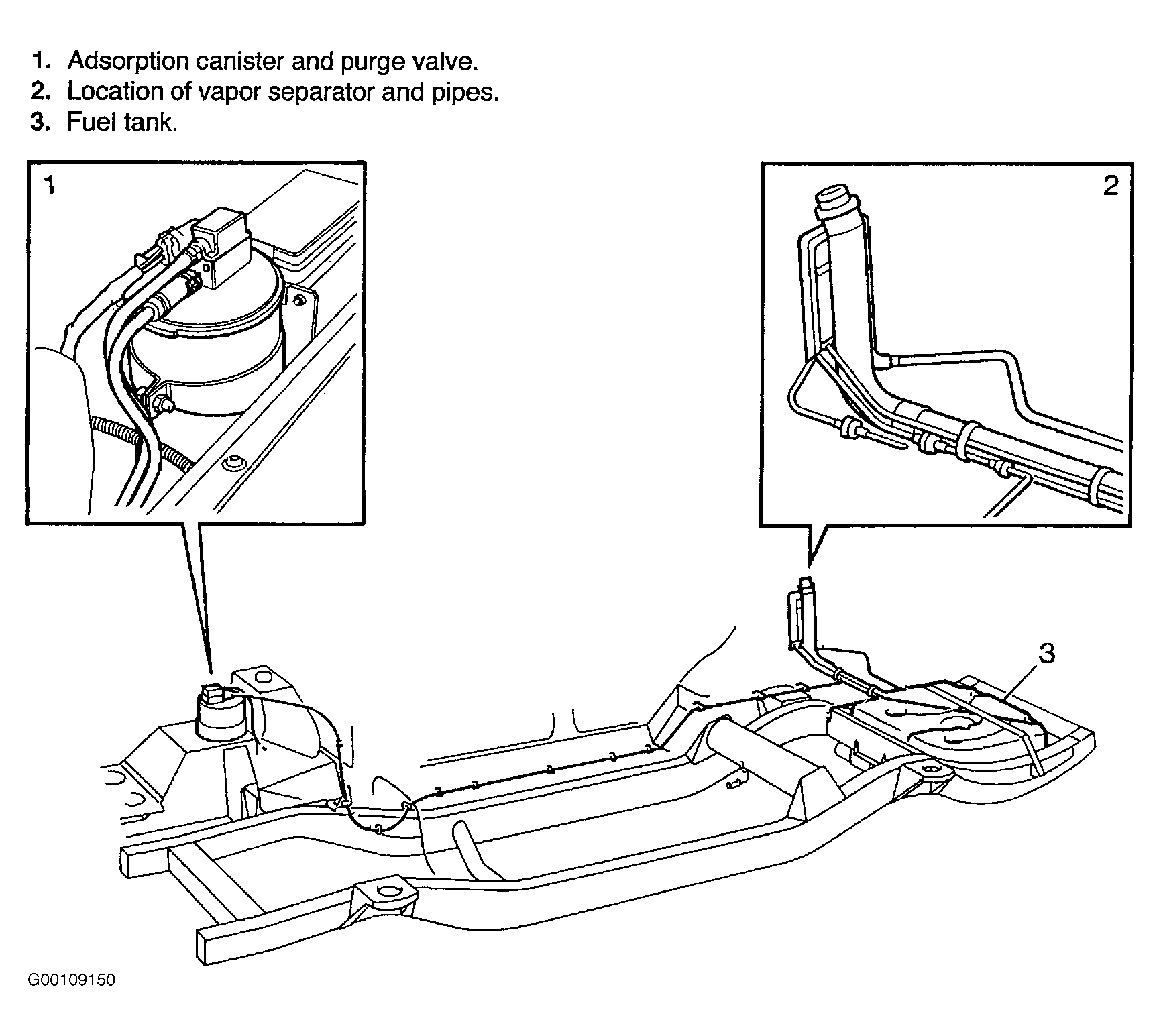

Fig 3: Vacuum Hose Routing (1993-95 Defender, Range Rover County & County LWB)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
