Engine Control Module

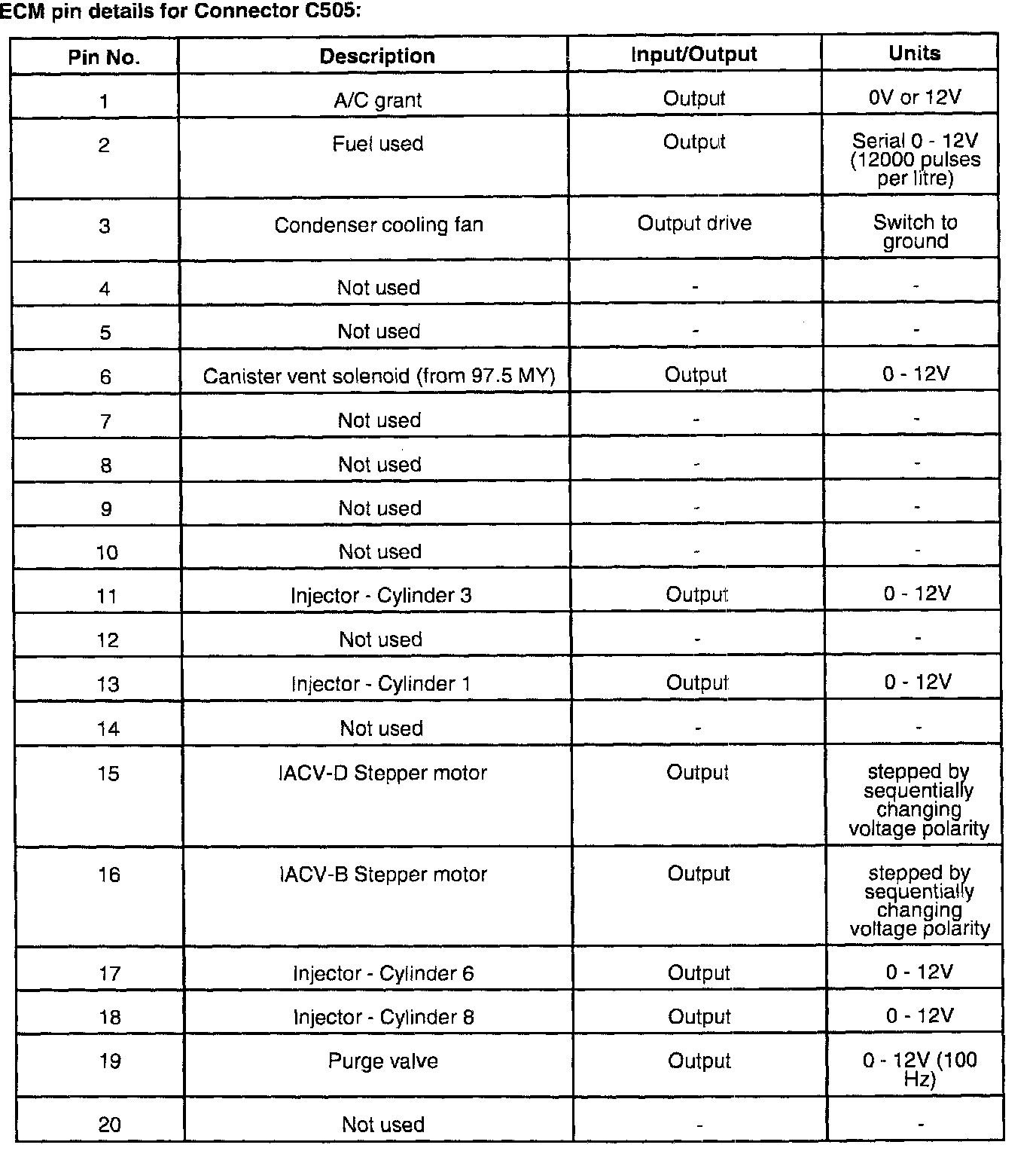

C505, Part 1 Of 2:

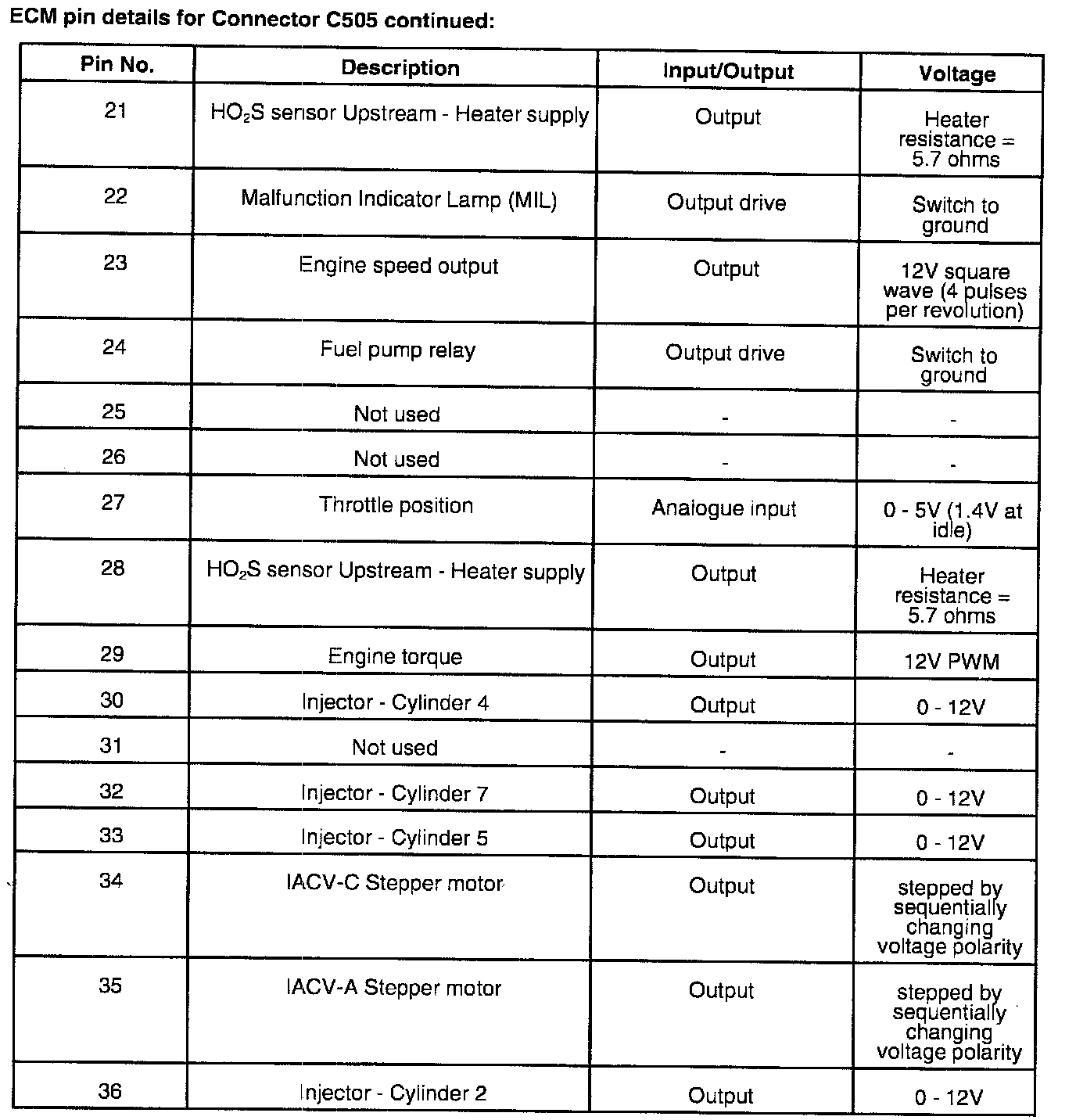

C505 Part 2 Of 2:

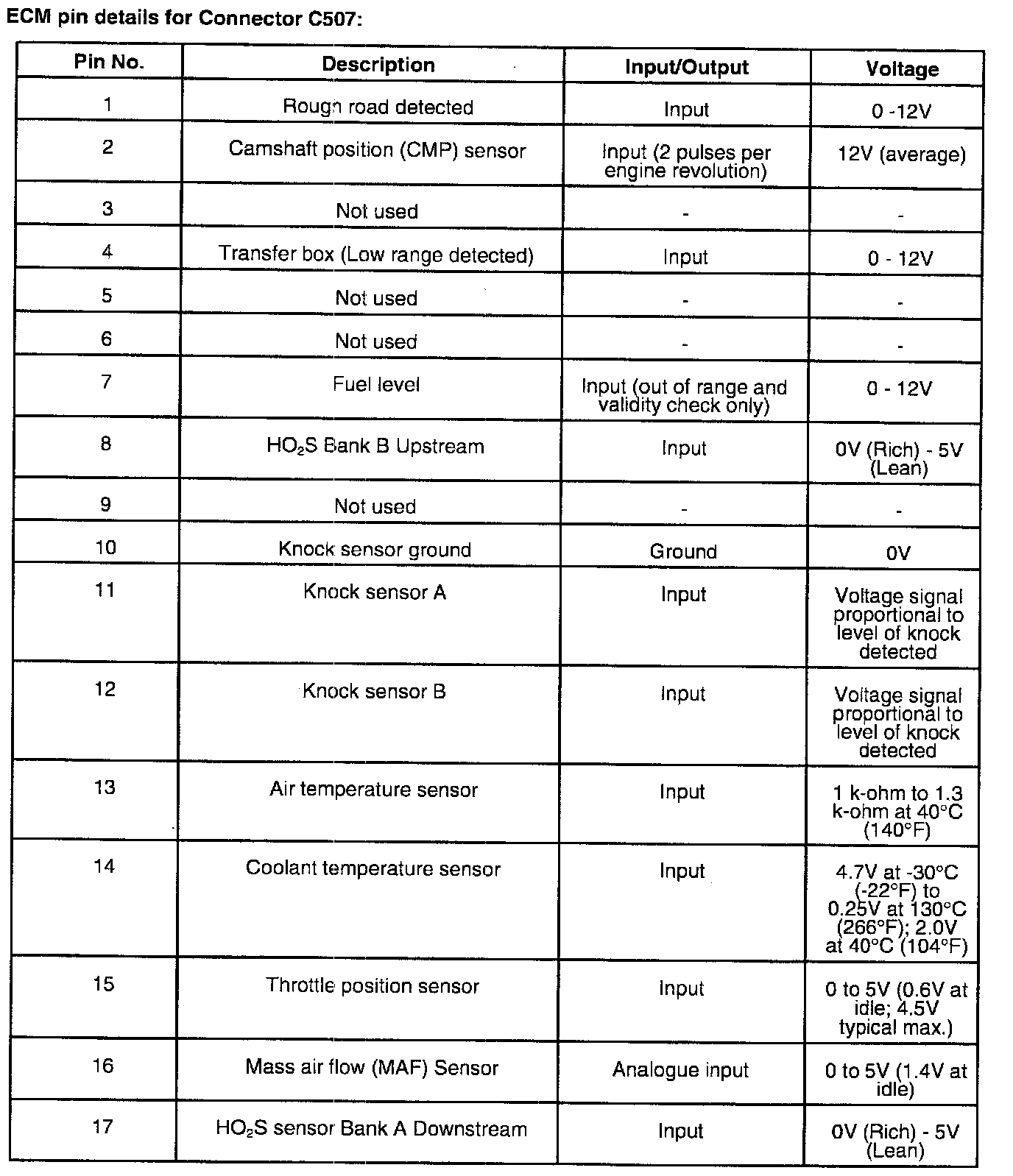

C507 Part 1 Of 2:

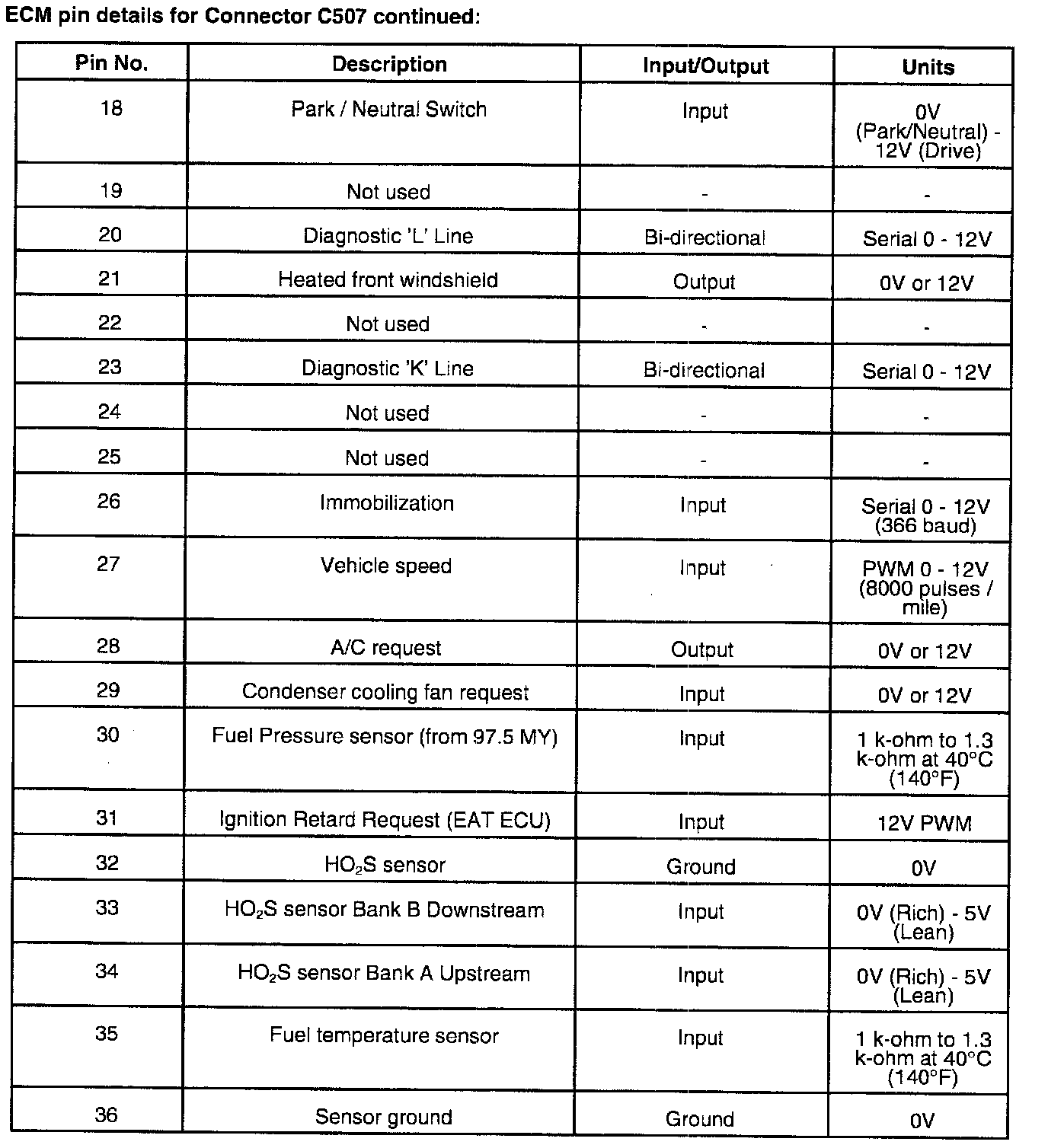

C507 Part 2 Of 2:

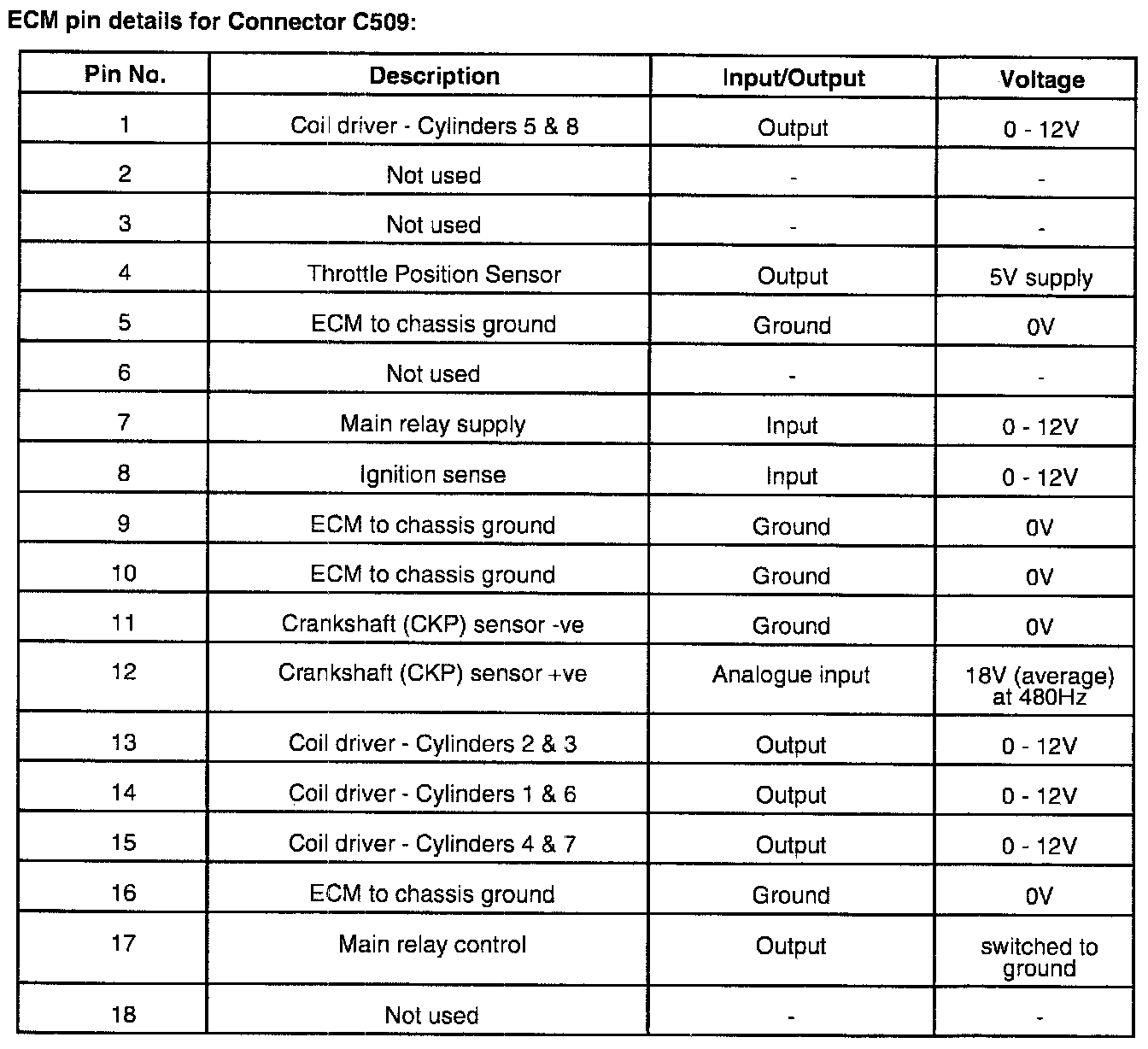

C509:
