Removal & Installation (Defender)

Disconnect negative battery cable. Remove 2 Engine Control Module (ECM) cover screws and remove cover. See Fig 1. Disconnect 3 ECM harness connectors. Remove 2 ECM retaining screws and remove ECM. To install, reverse removal procedure.

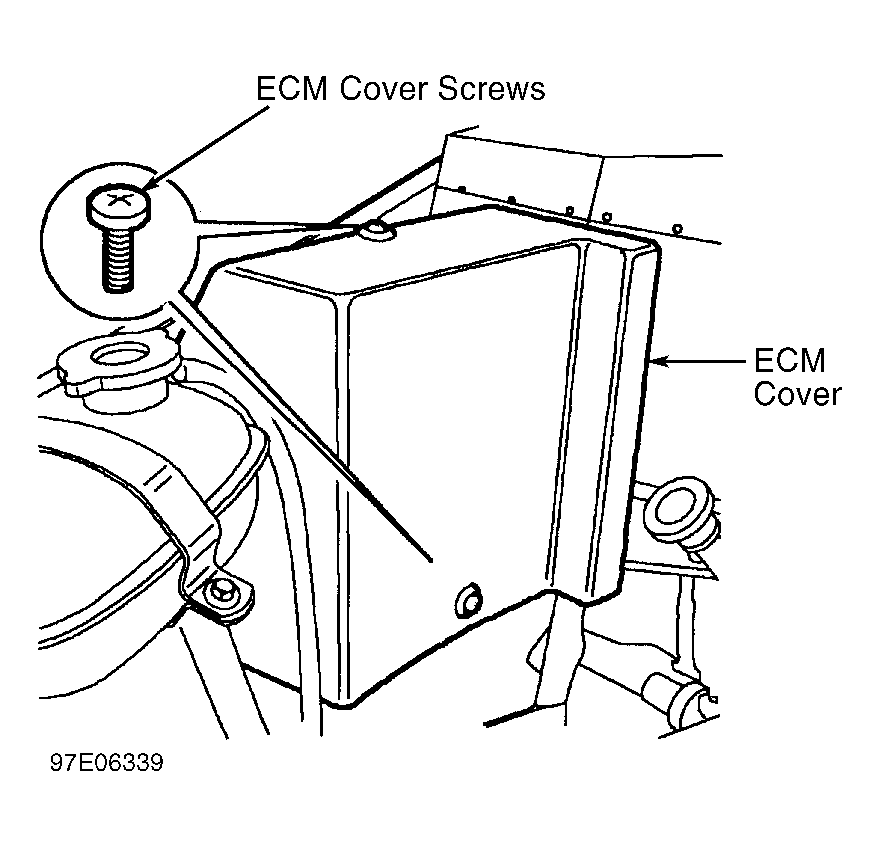

Fig 1: Removing ECM (Defender)
G97E06339Courtesy of LAND ROVER NORTH AMERICA, INC.
