Engine Covers: Freelander

Raise and support vehicle. Remove engine lower cover. See Fig 1. To remove (upper) engine acoustic cover, disconnect air intake hose from acoustic cover. Disconnect air intake hose and air by-pass hose from throttle body. Release 2 acoustic cover fasteners connected to left cylinder head. Release acoustic cover retaining strap. Remove acoustic cover. See Fig 2. To install engine covers, reverse removal procedure.

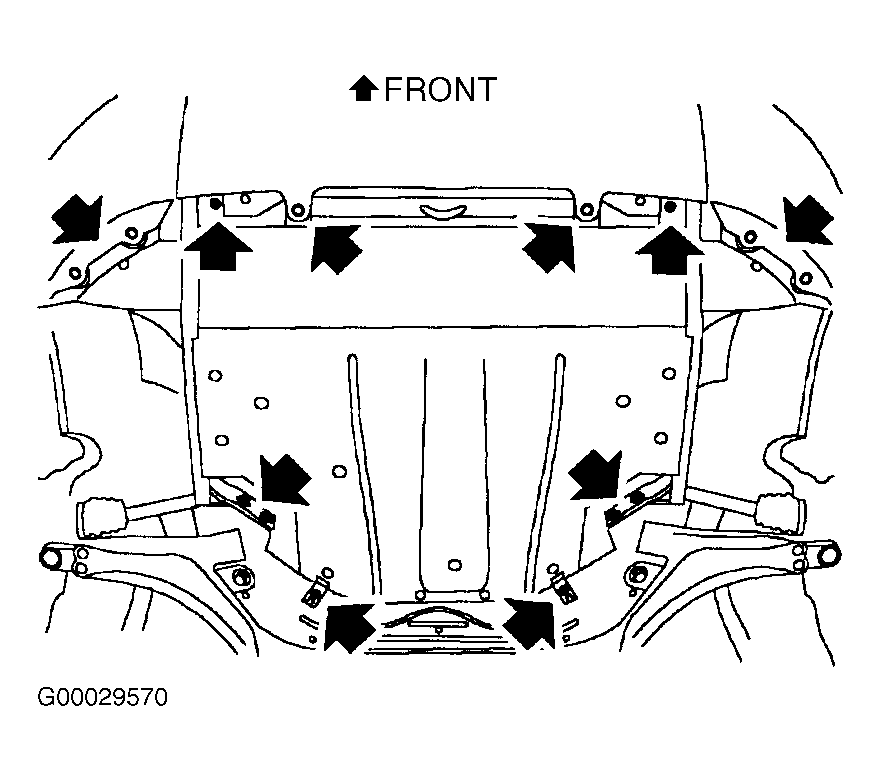

Fig 1: Removing Engine Lower Cover (Freelander)

Courtesy of LAND ROVER NORTH AMERICA, INC.

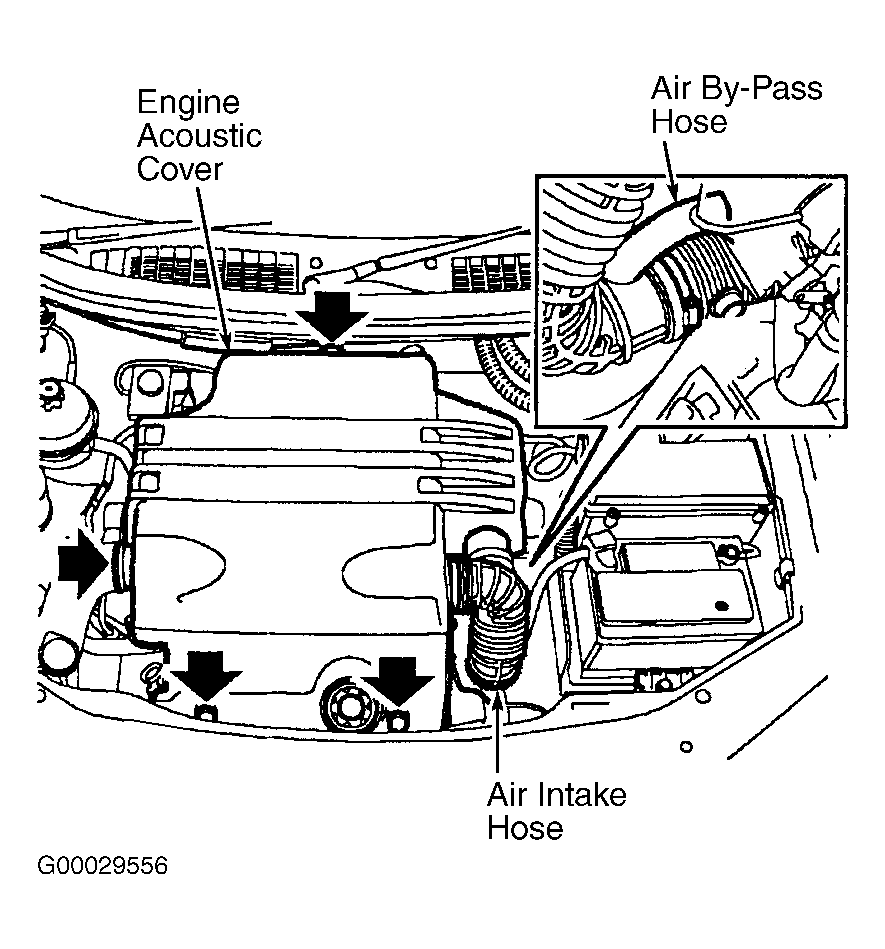

Fig 2: Removing Engine Acoustic Cover (Freelander)

Courtesy of LAND ROVER NORTH AMERICA, INC.
