Programmable Options: Notes

The BCU can be programmed with a number of options to satisfy specific market requirements and customer preferences. The options can be set using TestBook.

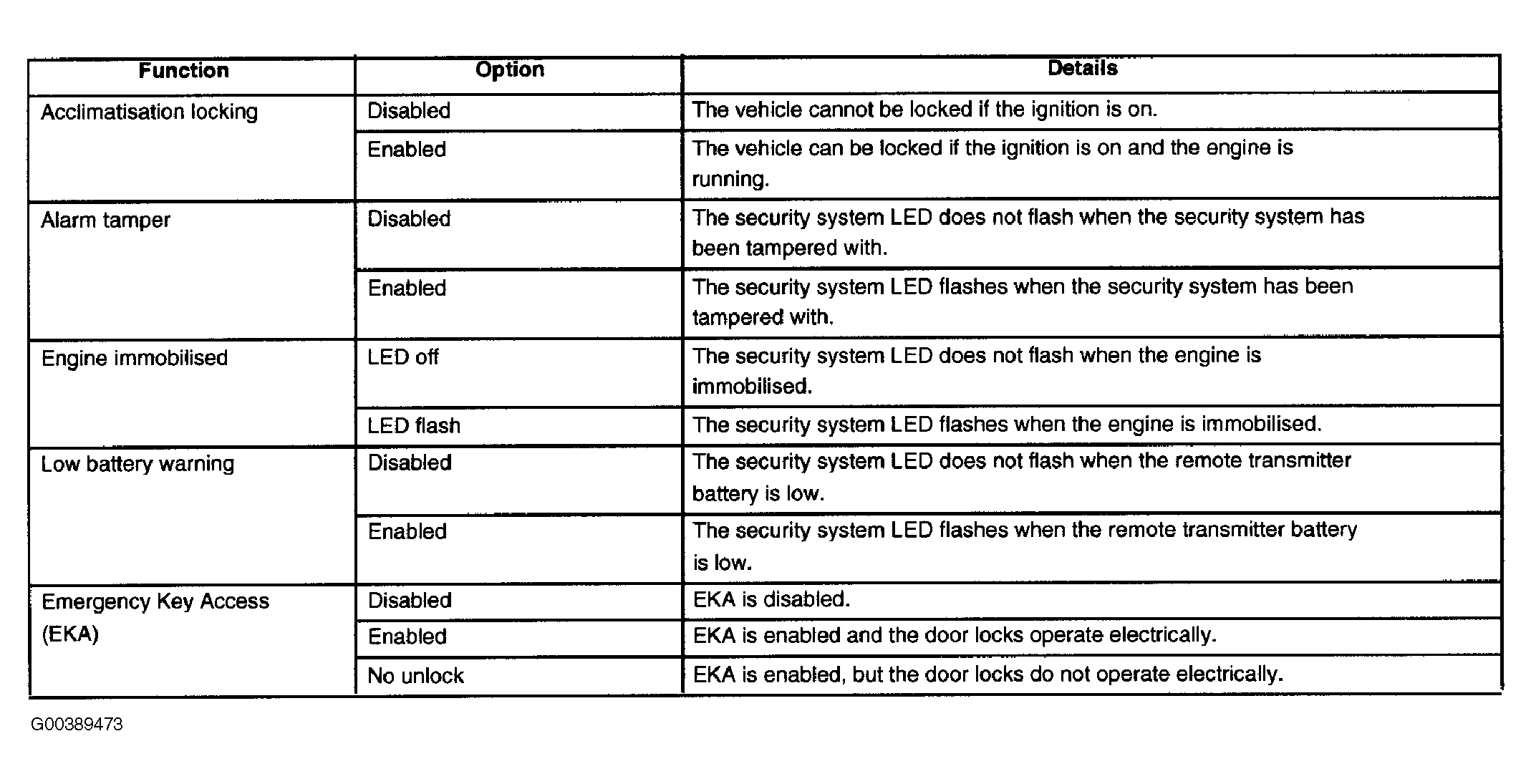

Fig 1: Identifying Programmable Options List (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

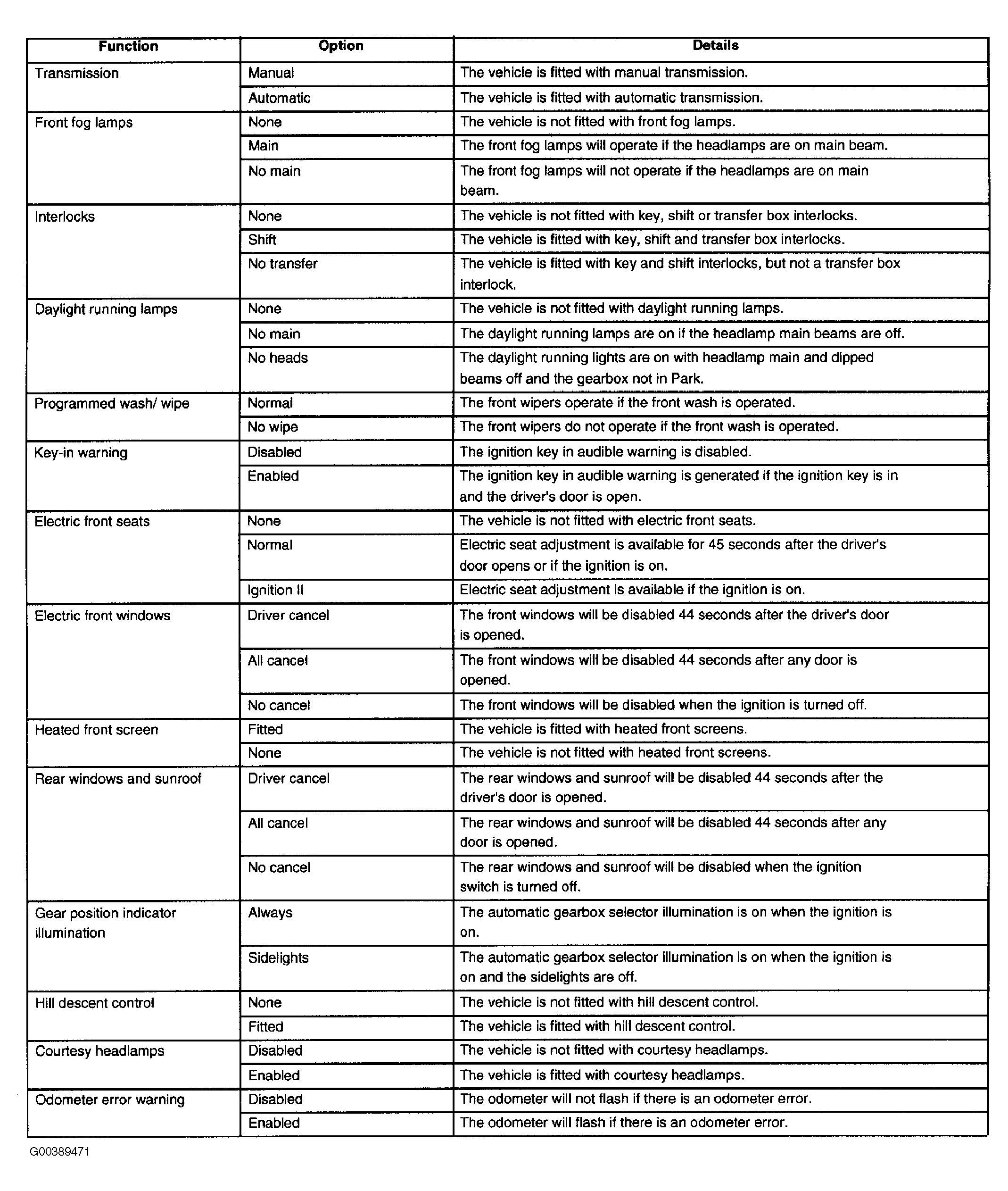

Fig 2: Identifying Programmable Options List (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

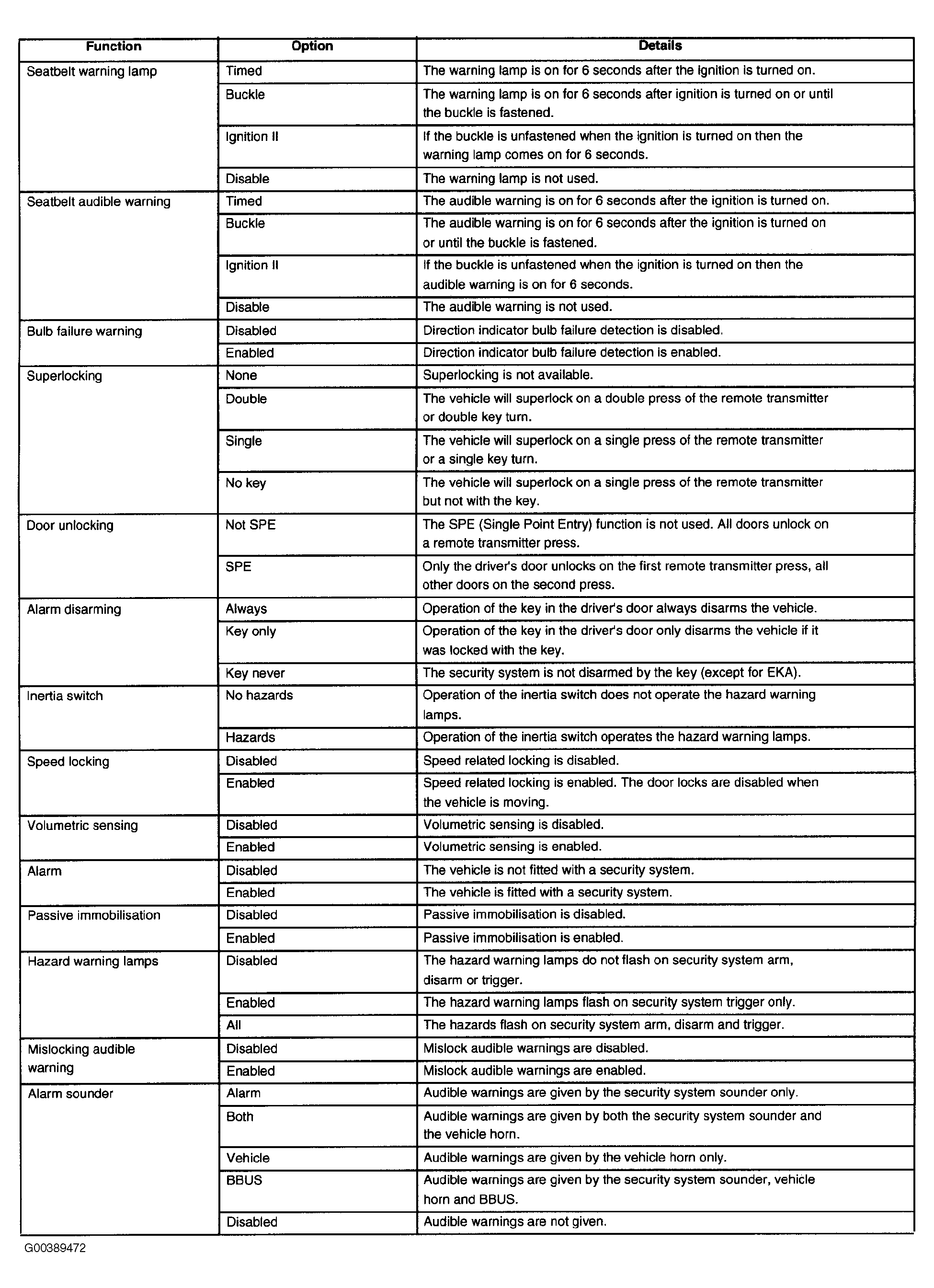

Fig 3: Identifying Programmable Options List (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
