General Data - Discovery II: Electrical
GENERAL DATA - ELECTRICAL
| Applications | Description | |
|---|---|---|
| System | 12 volt, negative earth | |
| Battery | ||
| Type | Delco Freedom | |
| Capacity | 72 amp hour | |
| Alternator | ||
| Type | Bosch NC65/130 | |
| Maximum output | 130 amp | |
| Starter motor | ||
| Type | Nippon Denso | |
| Power | 1.8 kW | |

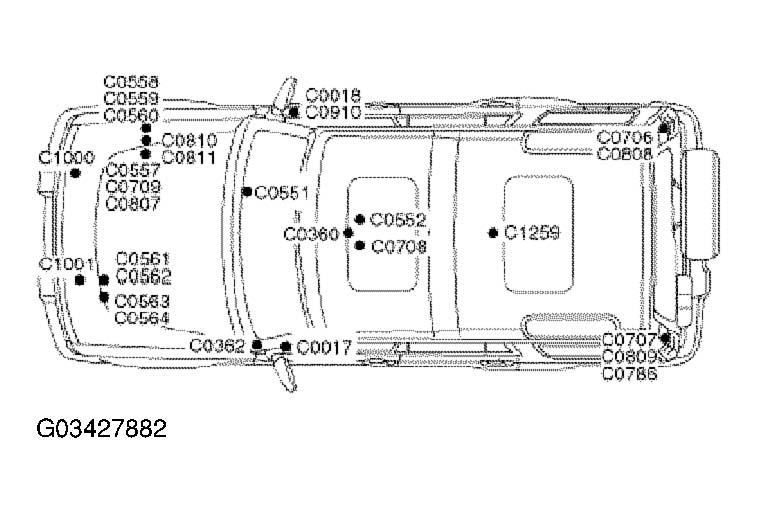

The following illustration indicates the general position of each earth point and earth header on the vehicle:
