Steering Column Assembly & Lock: Removal
- Remove steering column intermediate shaft. See SHAFT - INTERMEDIATE & UNIVERSAL JOINT - STEERING COLUMN .
- Remove rotary coupler:
- Open fascia lower access panel.
- Remove steering column nacelle. See NACELLE - STEERING COLUMN .

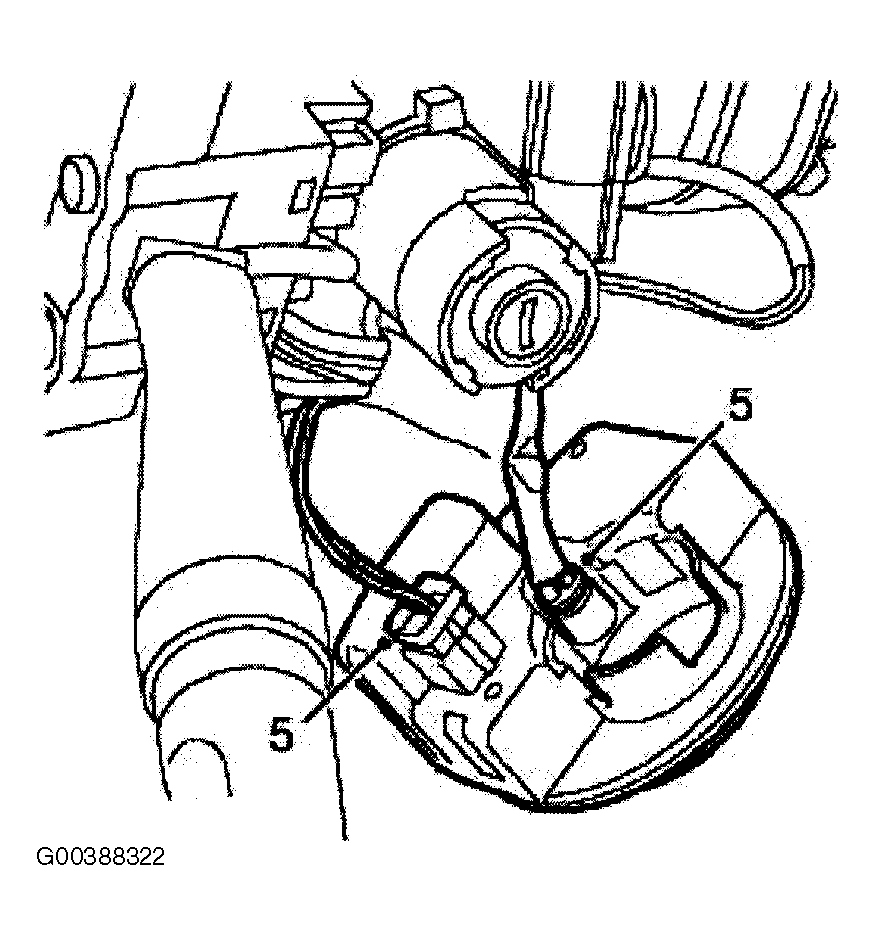

- Disconnect multiplug and illumination bulb from passive coil and remove passive coil. See Fig 1.

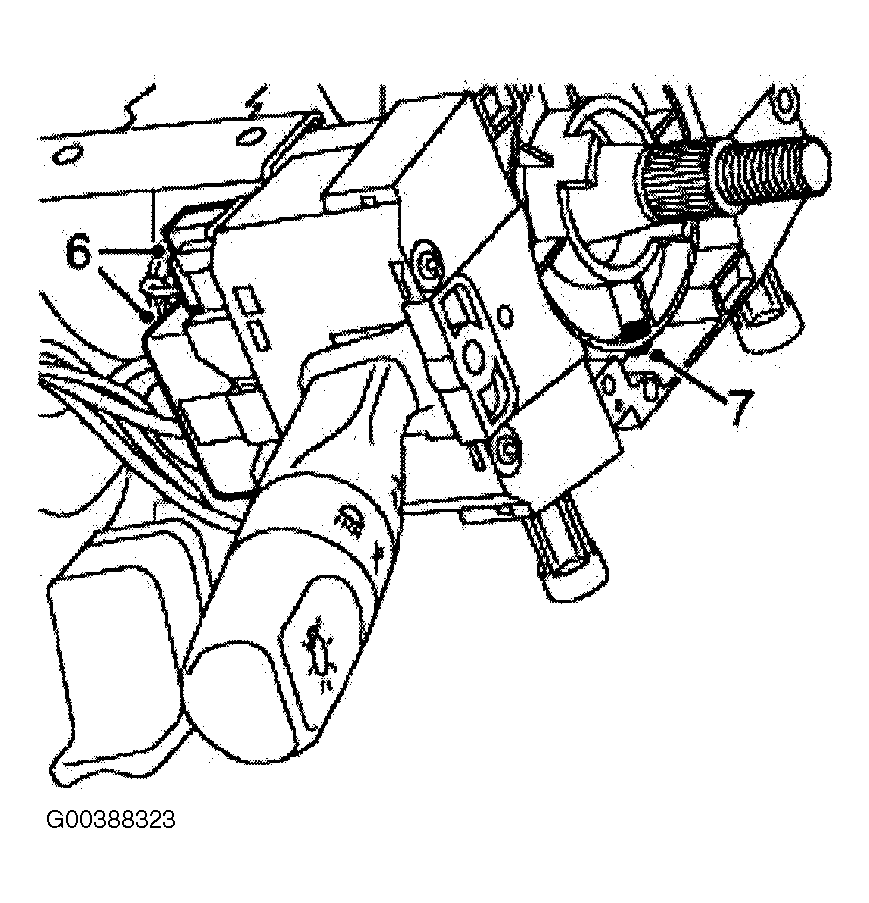

- Disconnect 2 multiplugs from wiper switch assembly. See Fig 2.

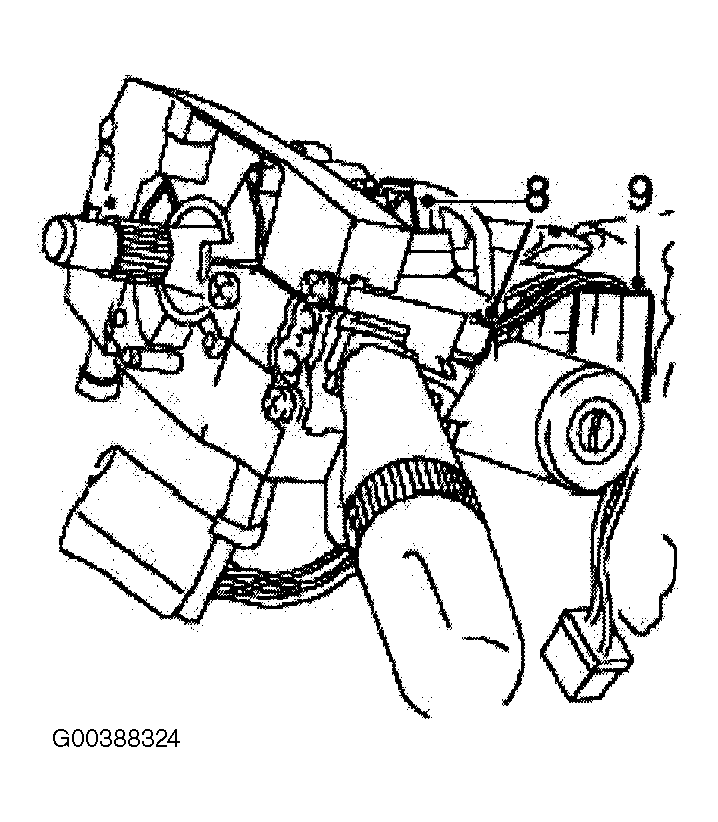

- Disconnect 2 multiplugs from light switch assembly.
- Loosen screw and remove switch assembly. See Fig 3.
- Disconnect ignition switch multiplug.
- Disconnect multiplug from ignition switch housing. See Fig 4.

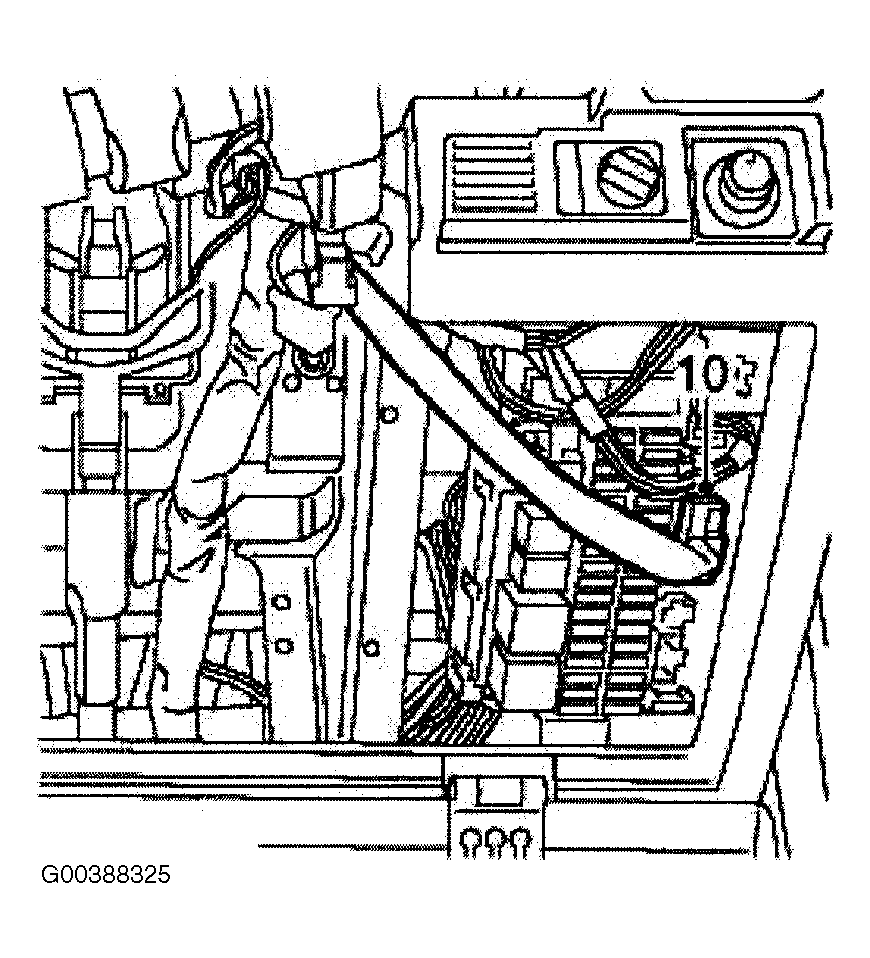

- Release harness from column clip. See Fig 5.

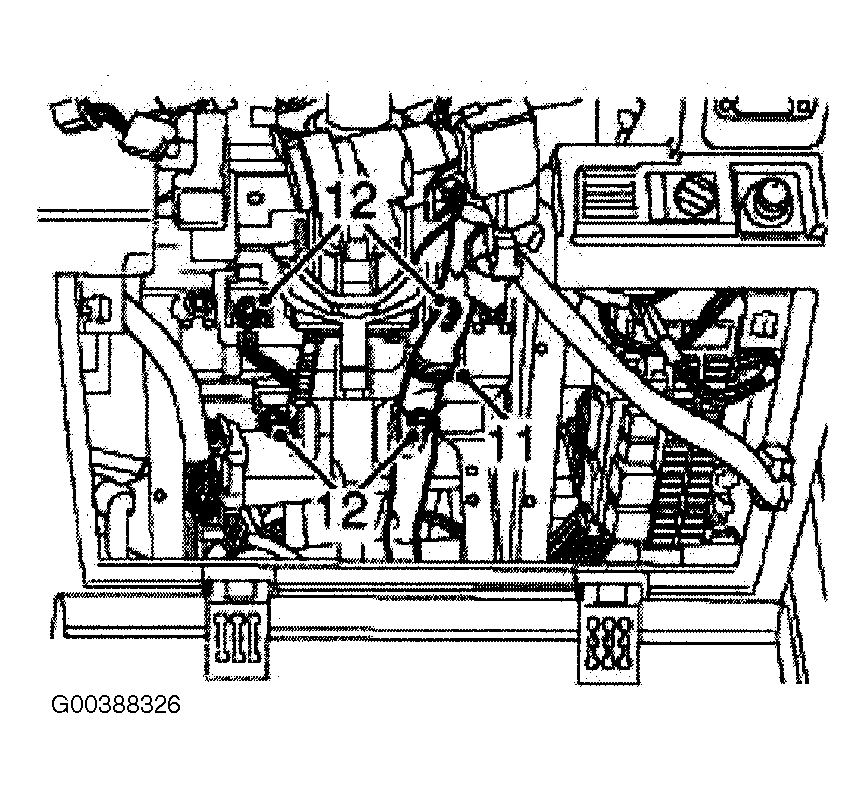

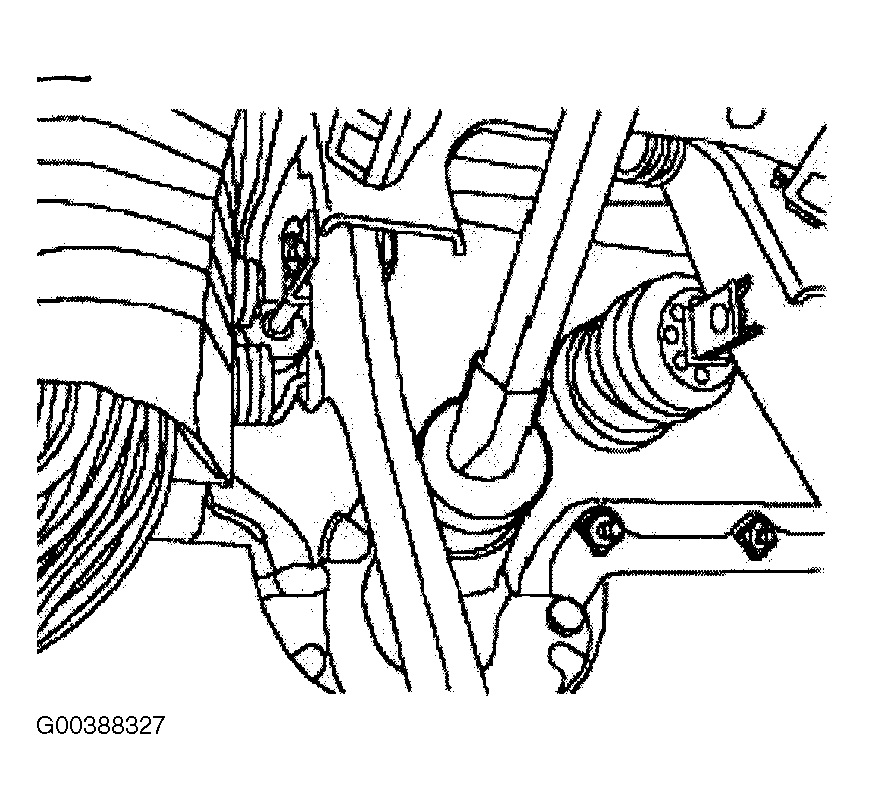

- Remove 4 nuts securing steering column assembly to fascia rail and remove steering column assembly.
- Remove rubber boot from steering column assembly. See Fig 6.
- Position steering column assembly in a vice. See Fig 7.

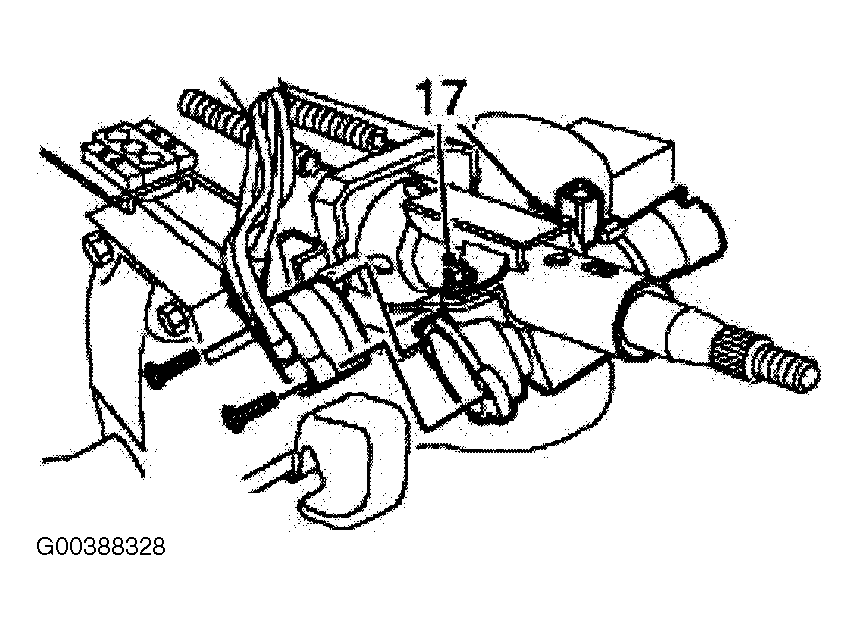

- Remove 2 screws and remove ignition switch.
- Remove cable tie and remove multiplug from ignition switch.
- Centre punch or drill out steering lock shear bolts.
- Remove steering lock.
