Modulator Unit - Abs: Refit

  1. Position mounting rubbers to modulator.
  2. Position modulator to mounting bracket, tighten nuts to 9 Nm (7 Ft. lbs.).
  3. Clean brake pipe unions.

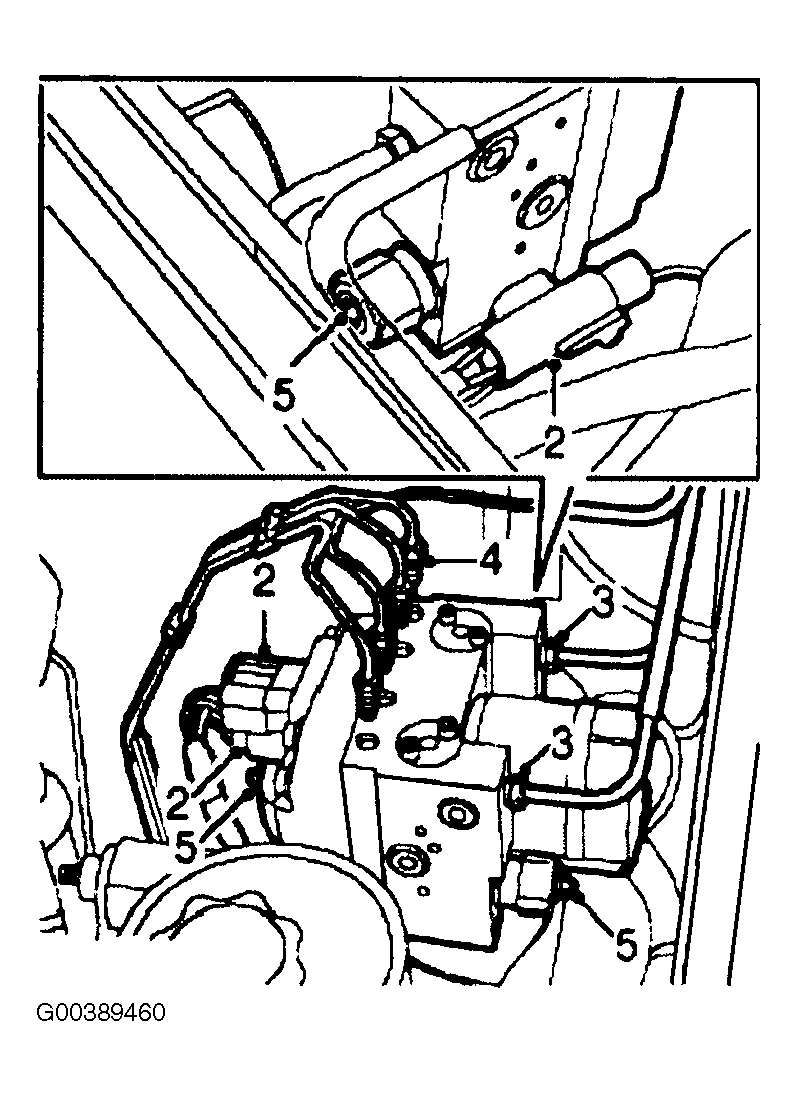

  4. Connect brake pipe unions to modulator ensuring pipes are connected to their correct ports. See Figure.
  5. Tighten 13 mm unions to 22 Nm (16 Ft. lbs.) and 11 mm unions to 14 Nm (10 Ft. lbs.).
  6. Connect multiplugs to modulator.
  7. Bleed brakes. See BLEEDING BRAKE SYSTEM .
  8. To ensure correct operation, the ABS system MUST be tested using Textbook/T4.
