Control Module, A/T

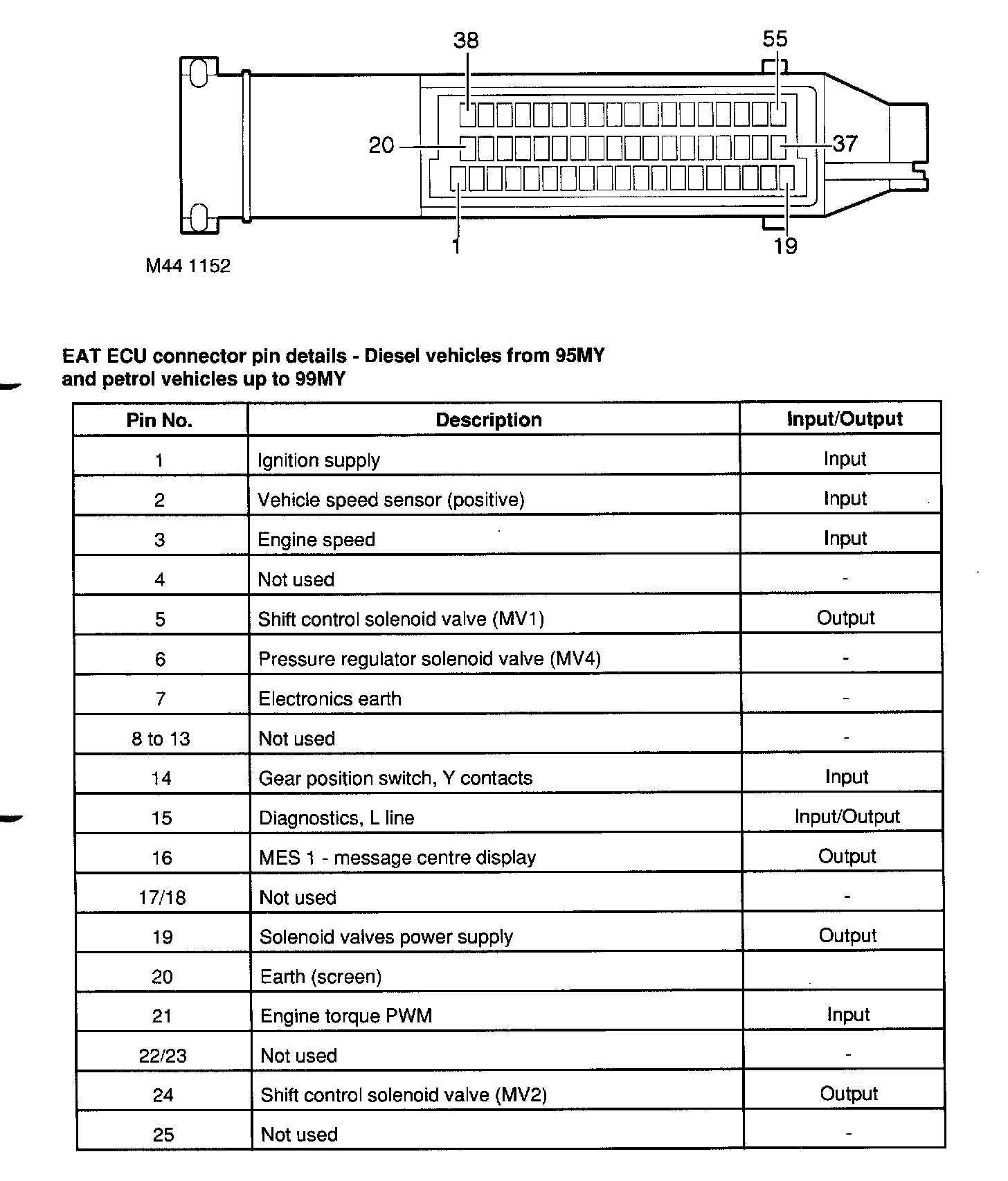

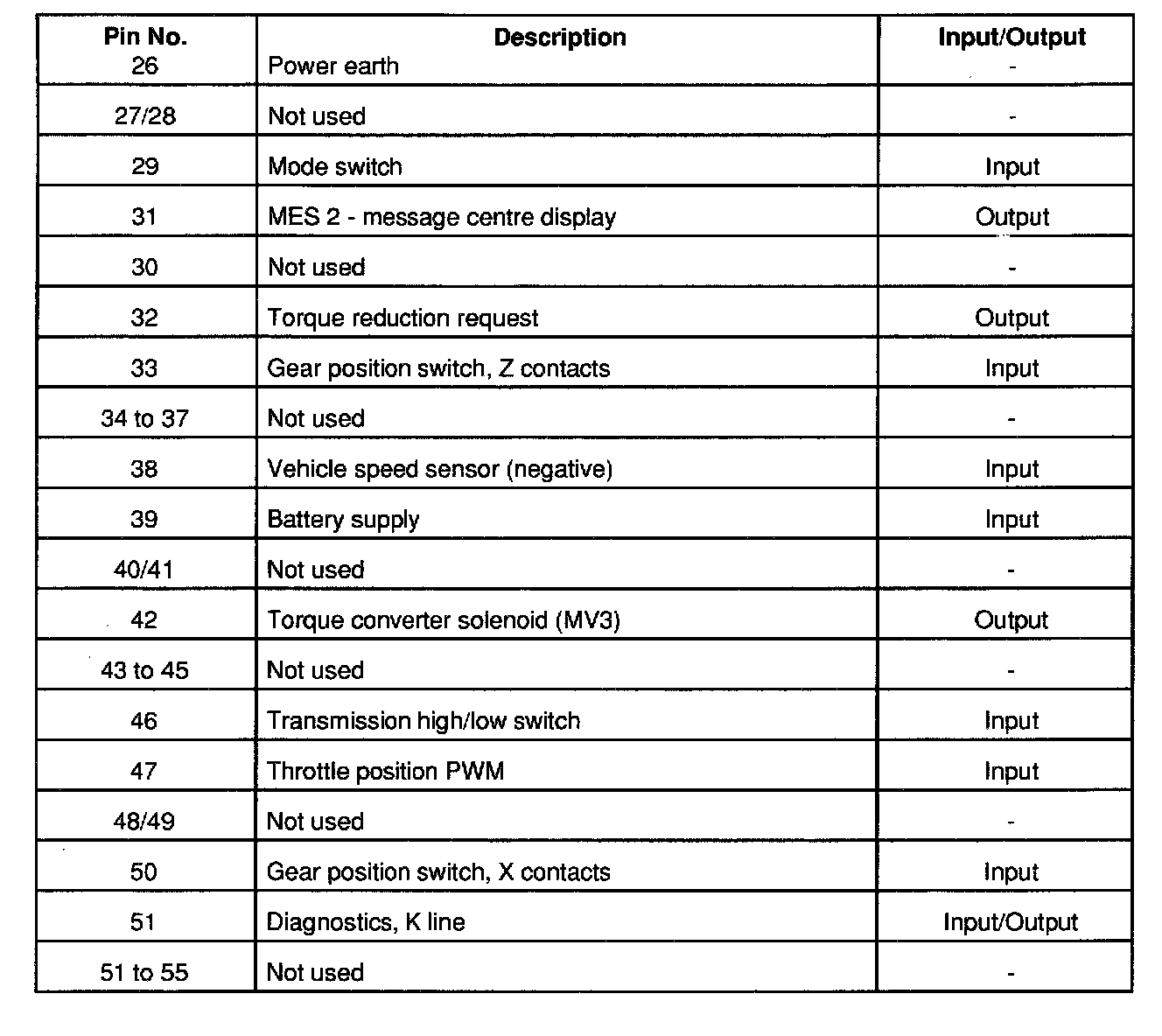

EAT ECU connector - Diesel vehicles from 95MY and petrol vehicles up to 99MY

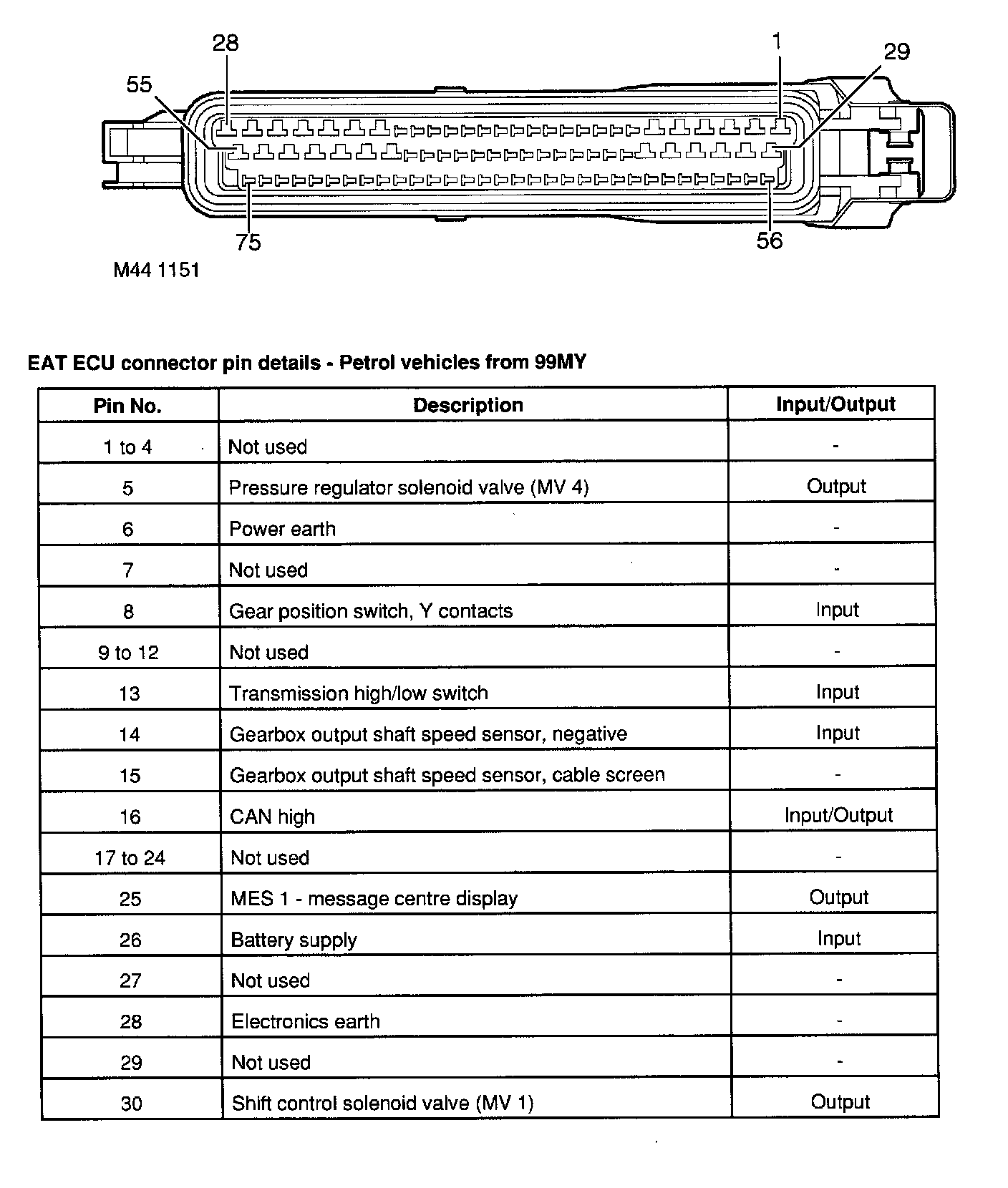

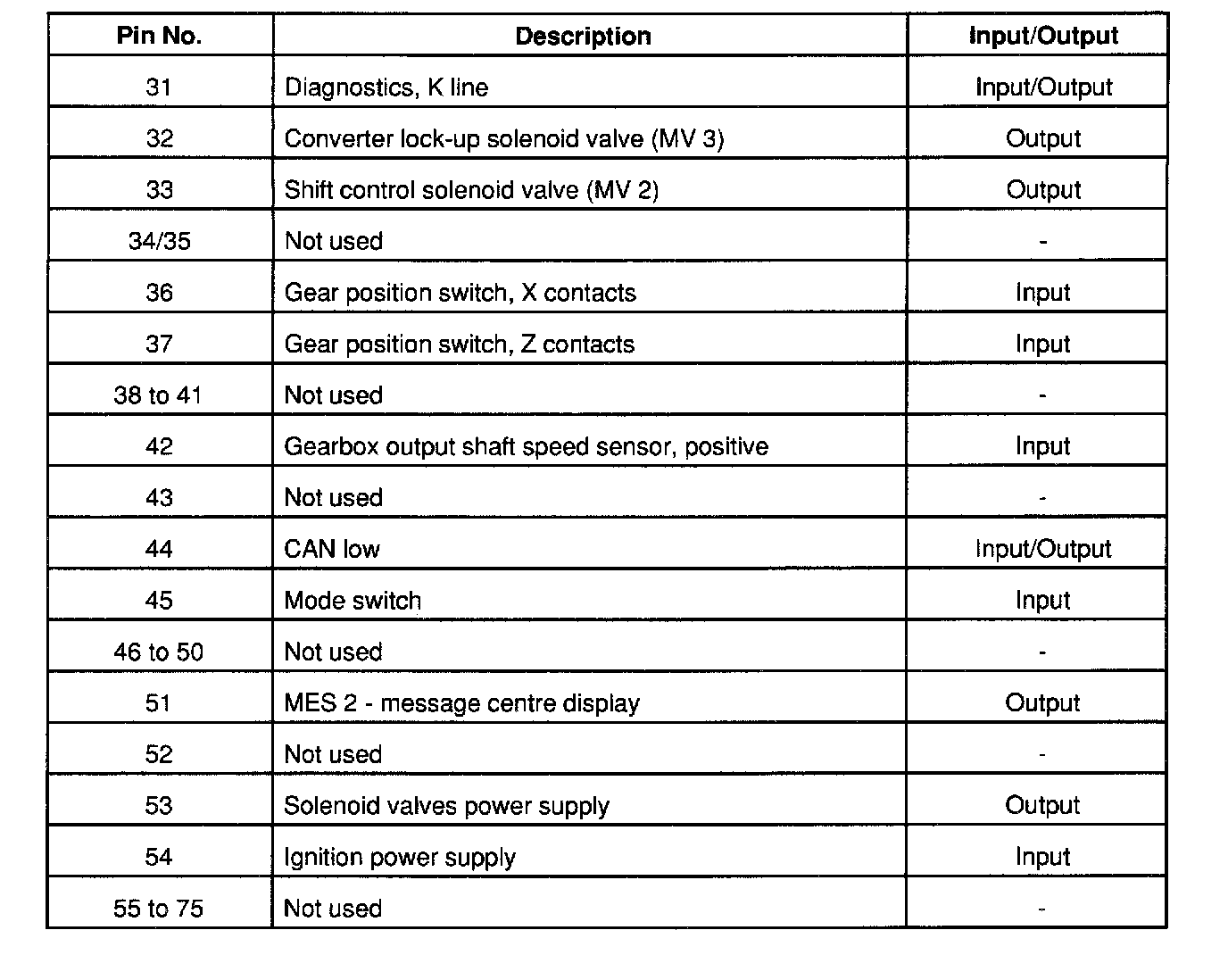

EAT ECU connector - Petrol vehicles from 99MY
