Pinout Values and Diagnostic Parameters



C0634:

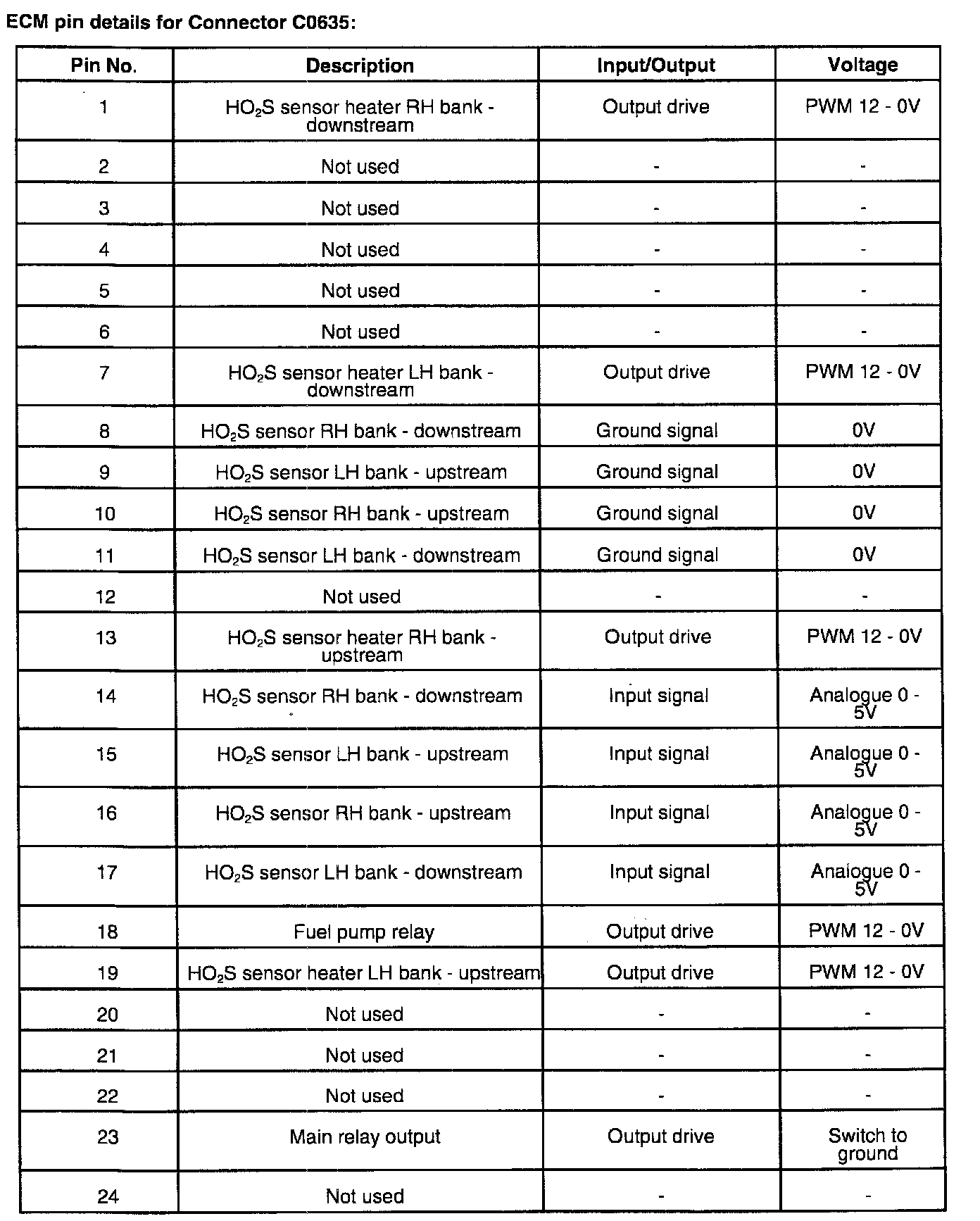

C0635:

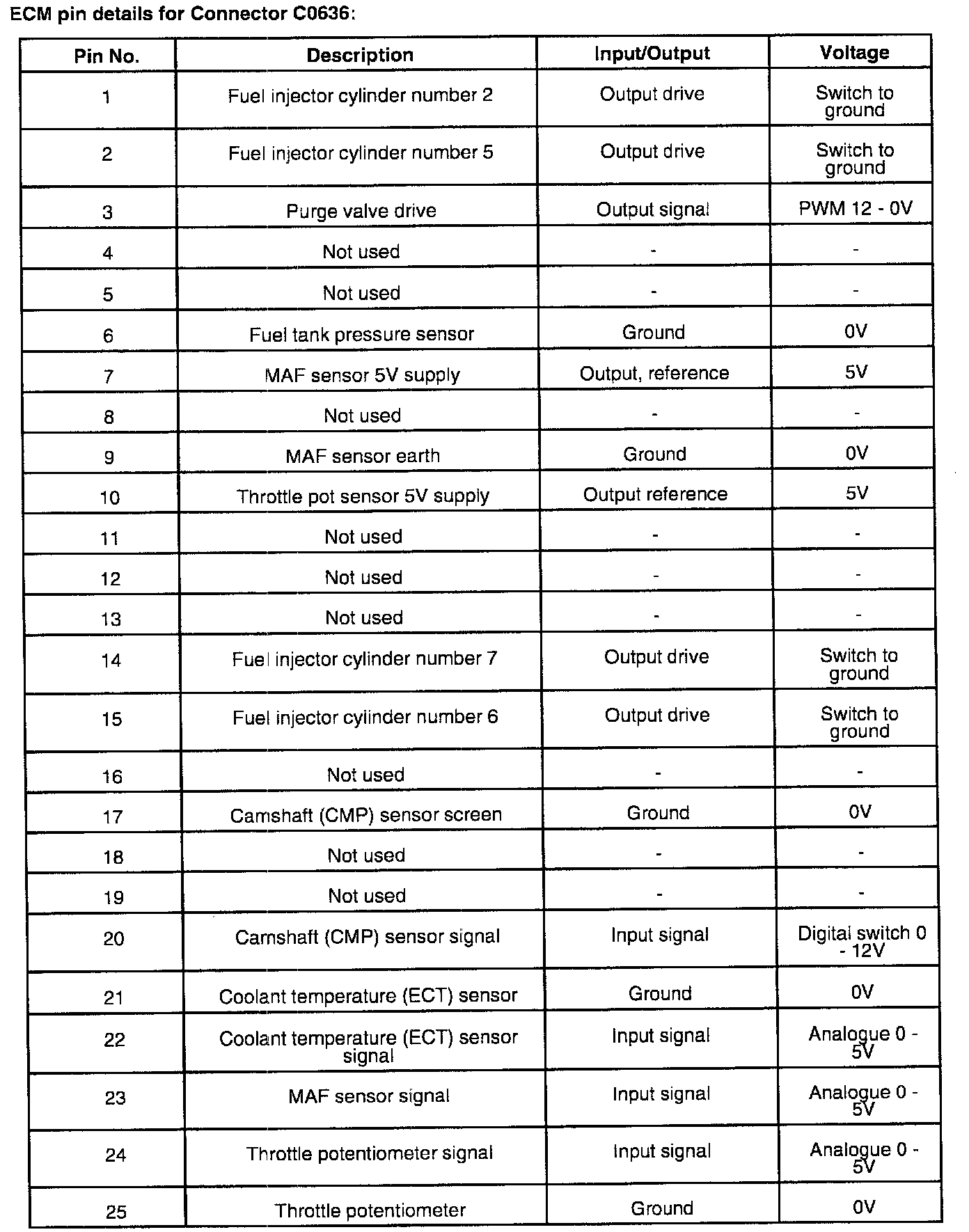

C0636 Part 1 Of 2:

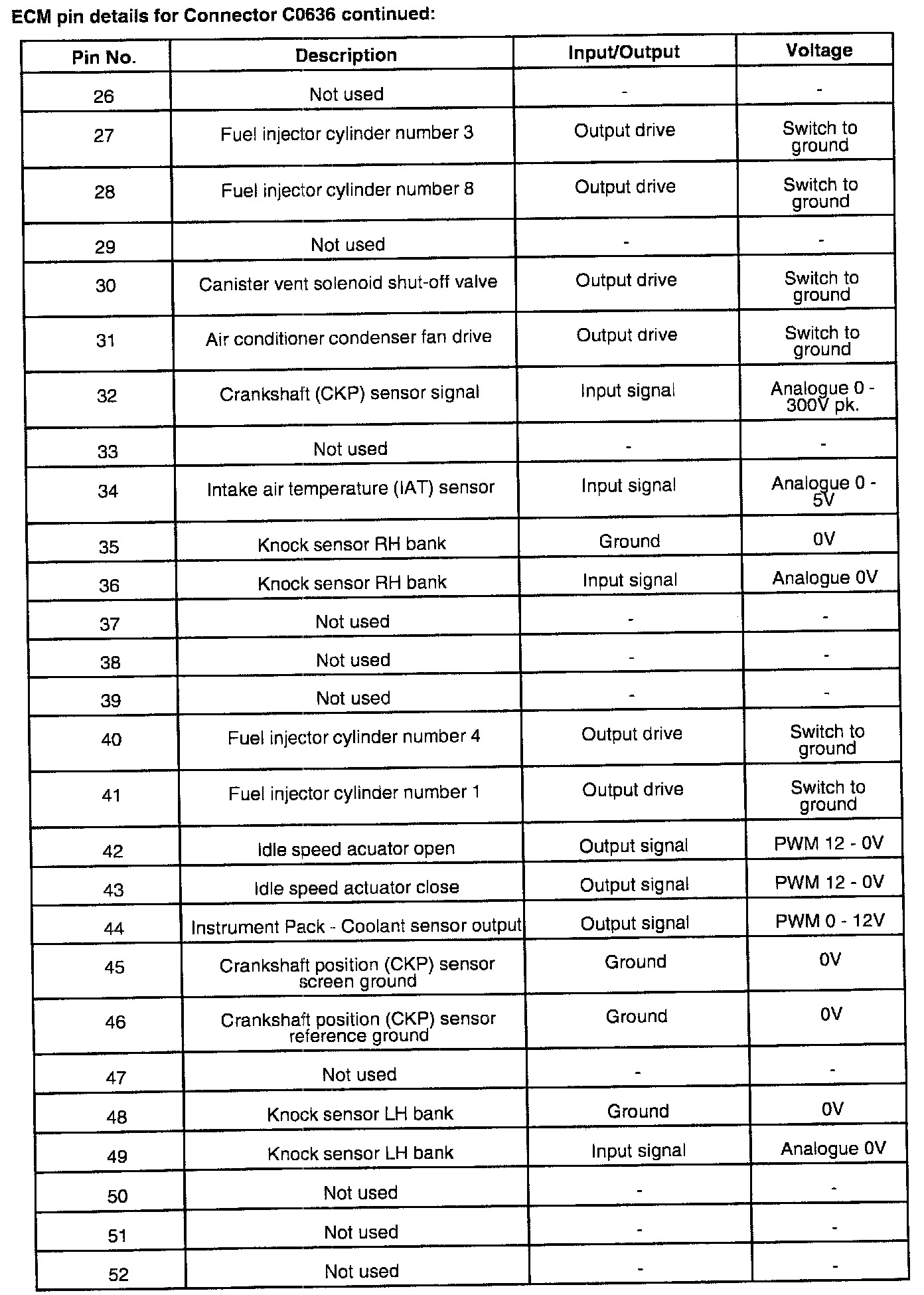

C0636 Part 2 Of 2:

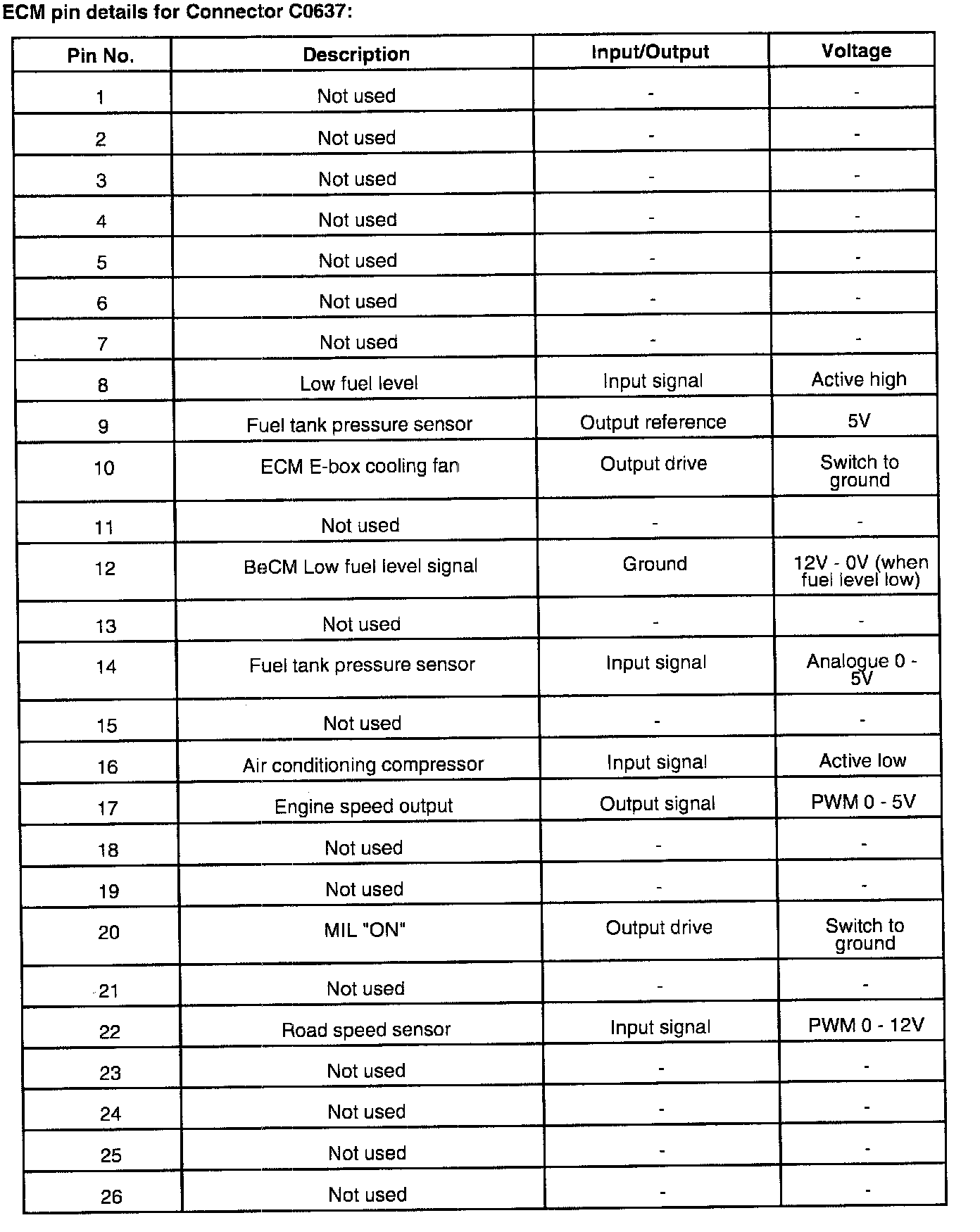

Co637 Part 1 Of 2:

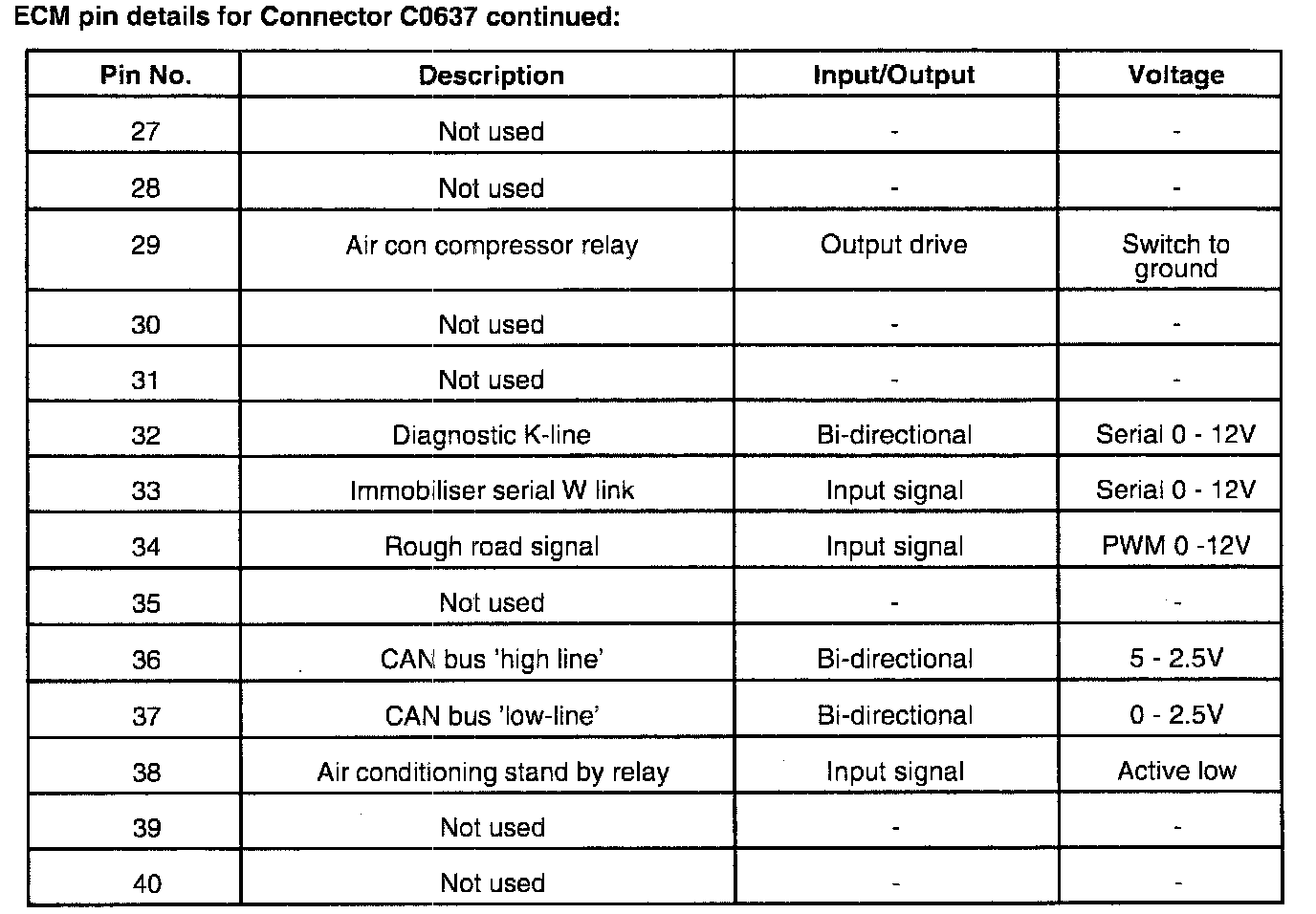

C0637 Part 2 Of 2:



C0638:
