Modulator Unit: Removal
WARNING: This page is about a different car, the 1999 Land Rover Discovery. However, it is still accessible from the selected car via links, so may be relevant.

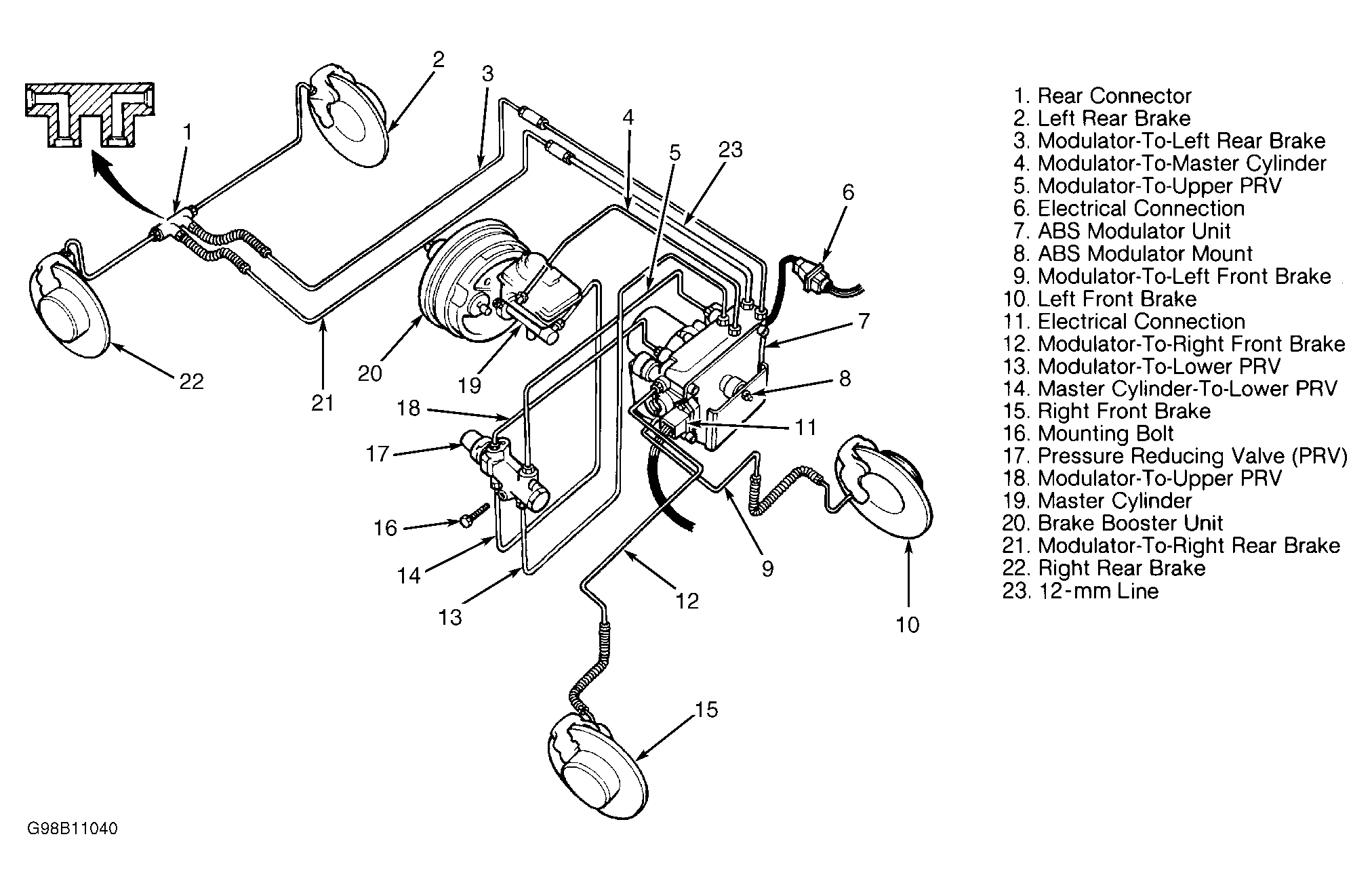

Disconnect negative battery cable. Disconnect modulator unit electrical connectors. Mark all 8 brakelines attached to modulator unit for reassembly. See Figure . Disconnect brakelines. Remove modulator unit mounting nuts, modulator unit, and mounting bushings and cup.
