Engine Control Module (ECM): Removal

WARNING: This page is about a different variant/trim than selected.

Release fixings and remove battery cover.
Disconnect battery earth lead.
Remove fixings securing fascia RH closing panel, release diagnostic socket RH drive models, and remove panel. See Fig 1.
Remove 2 fixings and remove "A" post lower trim. See Fig 2.
Remove 2 nuts and release ECM from studs and location on "A" post lower panel.
Lower ECM into footwell and disconnect 5 multiplugs. See Fig 3.
Remove ECM.

Fig 1: Removing RH Fascia Closing Panel

Courtesy of LAND ROVER NORTH AMERICA, INC.

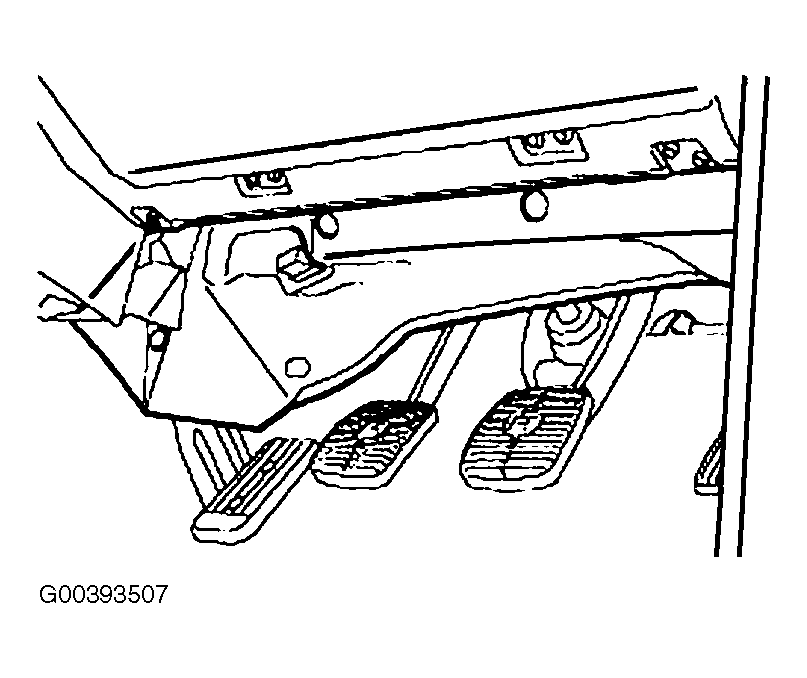

Fig 2: Removing "A" Post Lower Trim

Courtesy of LAND ROVER NORTH AMERICA, INC.

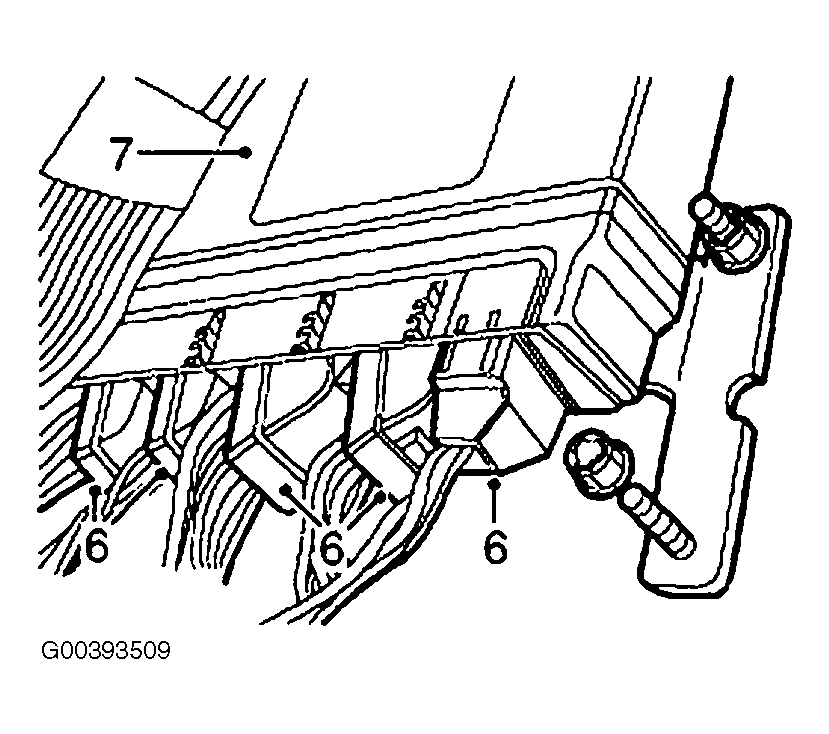

Fig 3: Removing ECM

Courtesy of LAND ROVER NORTH AMERICA, INC.
