Connector Identification

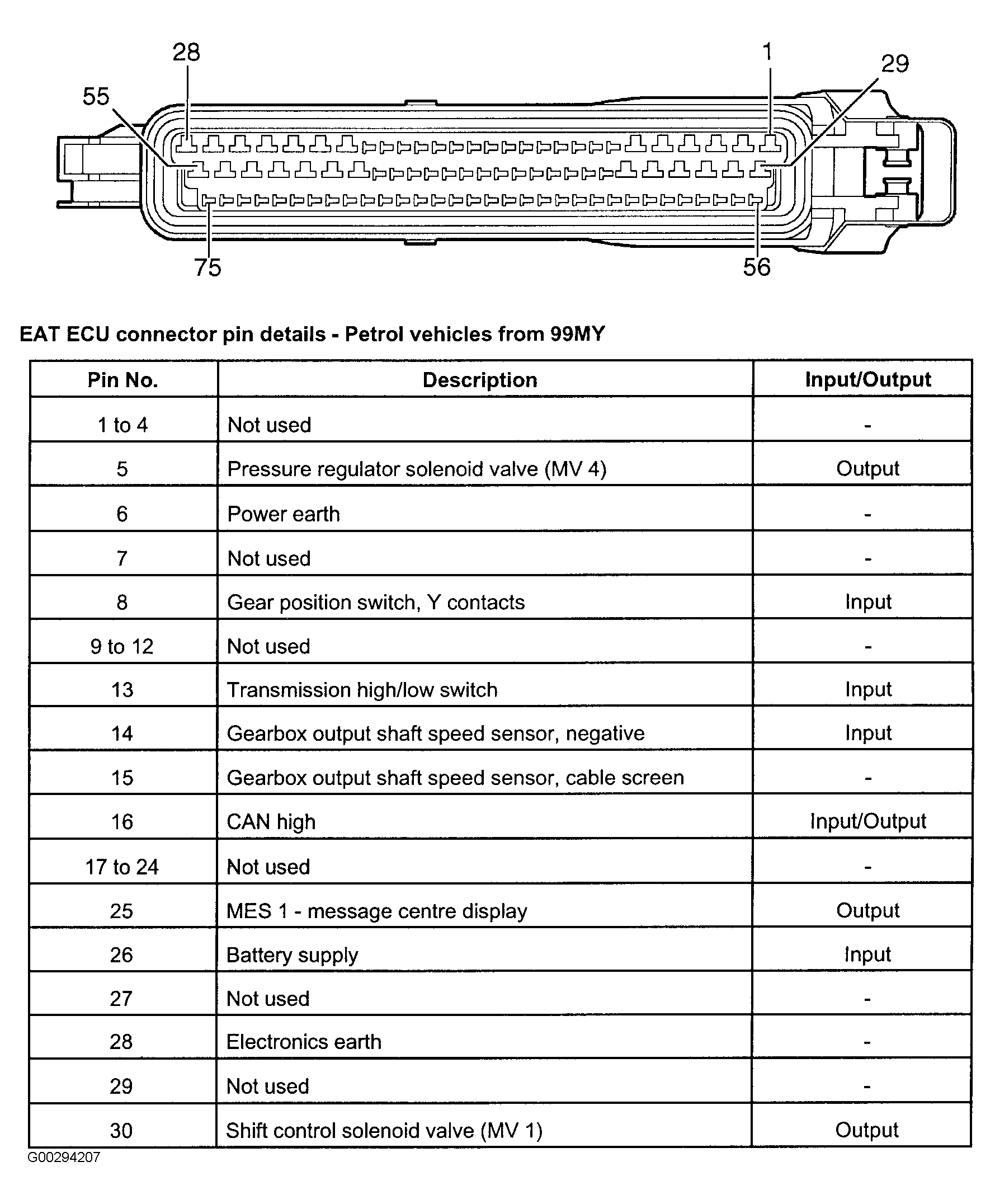

Fig 1: Identifying Auto Gear Box Control Unit Harness Connector Terminals (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

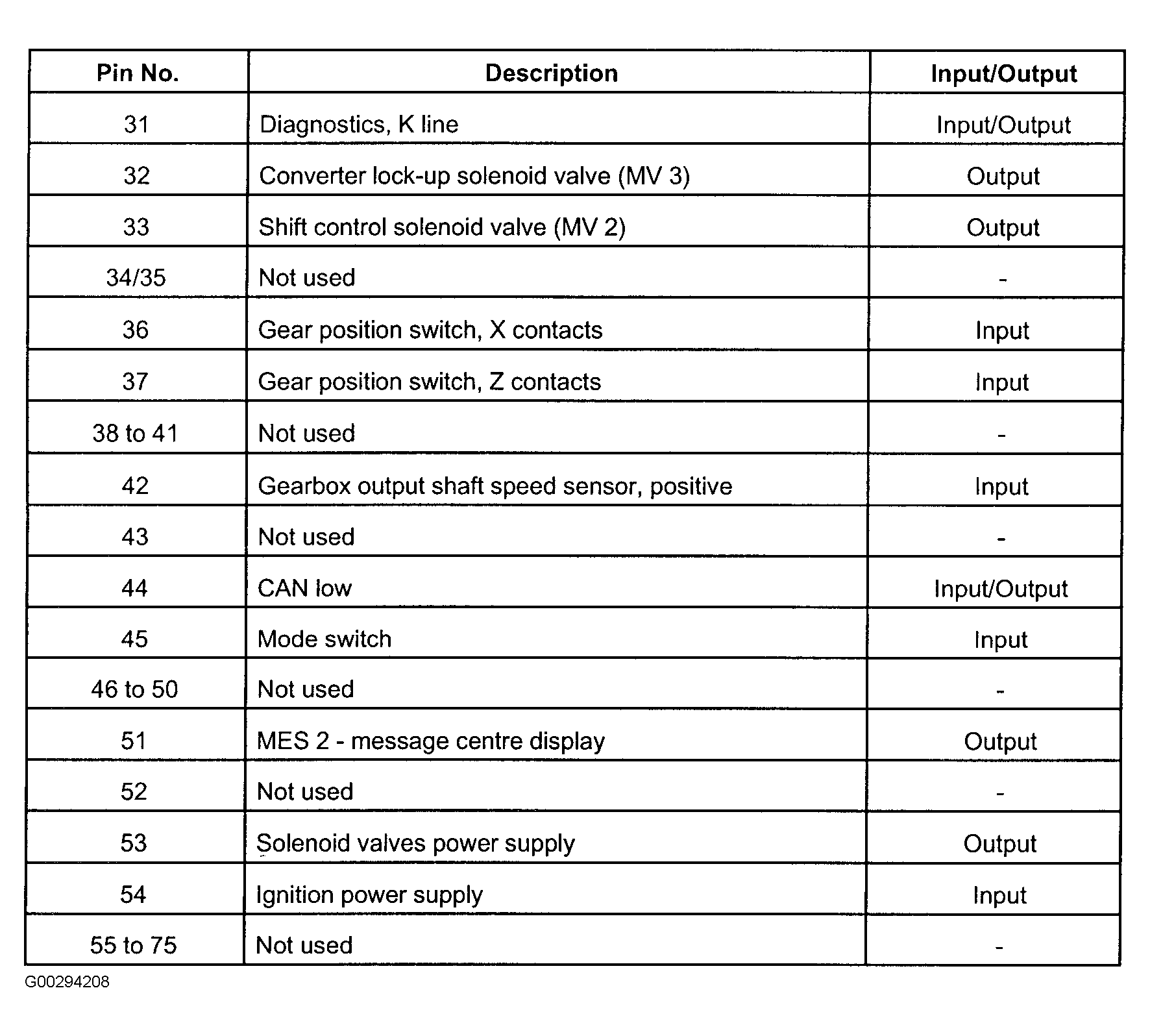

Fig 2: Identifying Auto Gear Box Control Unit Harness Connector Terminals (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 3: Identifying Gear Position Switch Harness Connector Terminals
Courtesy of LAND ROVER NORTH AMERICA, INC.
