Control Units

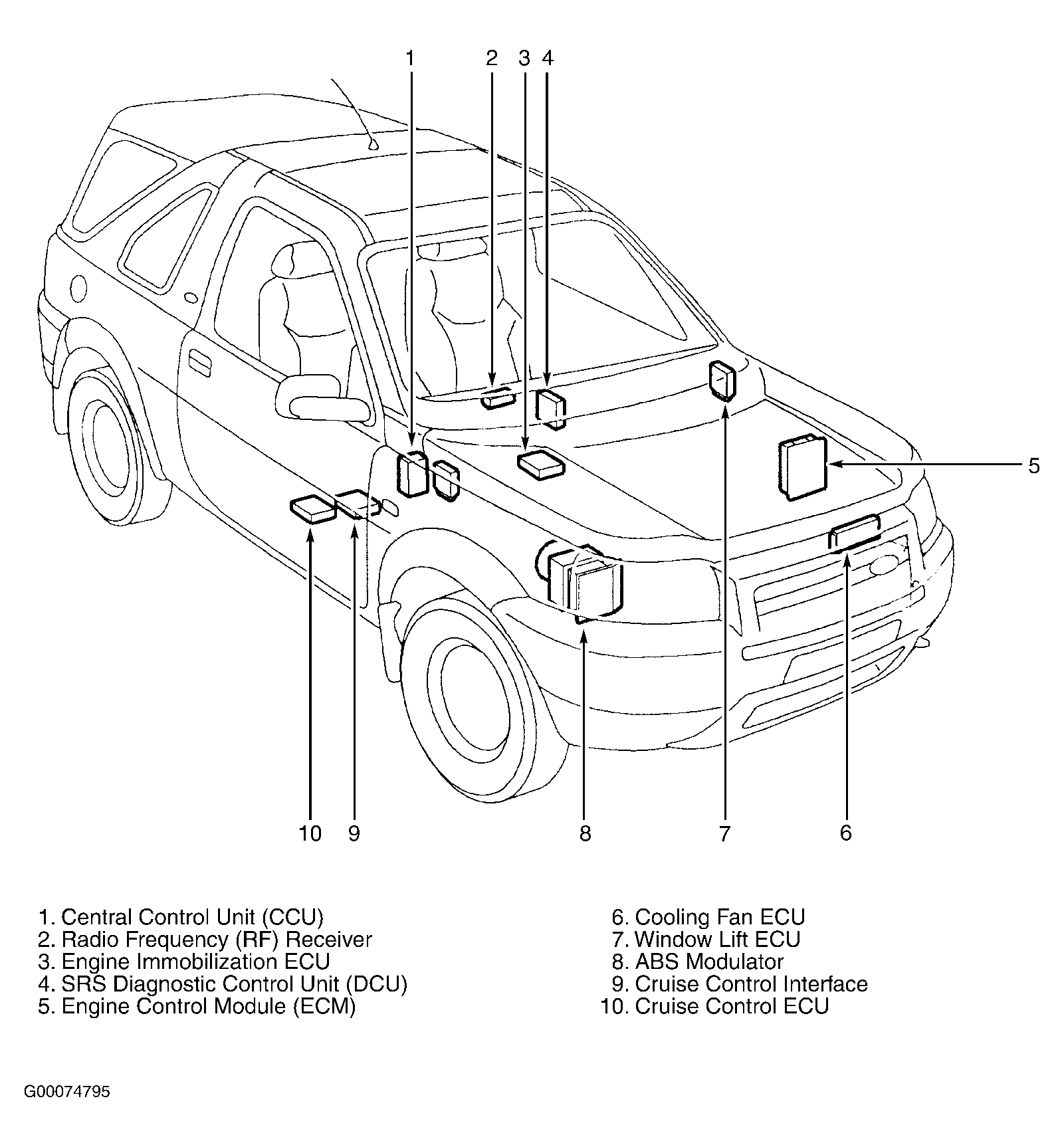

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Air Bag DCU | Under center console, on transmission tunnel. |
| Central Control Unit (CCU) | Behind passenger compartment fuse box. See Figure . |
| Cooling Fan ECU | On top left corner of cooling fan assembly. See Figure . |
| Cruise Control ECU | Under passenger seat. See Figure . |
| Cruise Control Interface | Under passenger seat. See Figure . |
| Electric Throttle Unit | At top rear of engine, on intake manifold. See Figure . |
| Electronic Automatic Transmission ECU | Inside engine control module box. |
| Engine Control Module (ECM) | Inside engine control module box. See Figure . |
| Engine Immobilization ECU | Behind center of dash. See Figure . |
| Folding Mirror ECU | At base of left "A" pillar. |
| Remote Control Interface Unit | Under center console, forward of gear selector lever. |
| SRS Diagnostic Control Unit (DCU) | On transmission tunnel, below heater assembly. See Figure . |
| Window Lift ECU | At left "A" pillar, level with bottom of dash. See Figure . |
