86.53.15 Interface Unit-Remote Control: Remove

  1. Remove front console.

    See 76.25.01 CONSOLE - FRONT - UP TO 04MY or 76.25.01 CONSOLE ASSEMBLY FRONT - FROM 04MY .

  2. Release interface ECU from bracket, disconnect multiplugs and remove ECU.

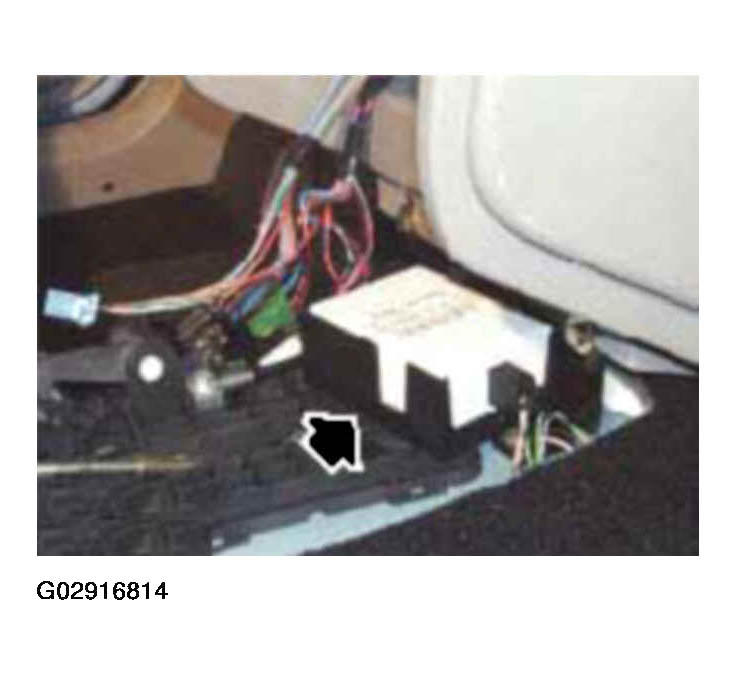

    Fig 1: Releasing Interface ECU From Bracket
    G02916814Courtesy of LAND ROVER NORTH AMERICA, INC.
