Wheel Alignment Procedure: Front: Adjusting

Mark position of steering ball joints for reference. Loosen track rod and ball joint pinch bolts. See Fig 1 .

CAUTION: Both track rods must be rotated an equal amount.

Rotate turnbuckle to obtain correct alignment. Ensure ball joint is not rotated.
Recheck front wheel alignment. See WHEEL ALIGNMENT SPECIFICATIONS .
Ensure slots in turnbuckle clamps are aligned. See Fig 2 .
Tighten track rod and ball joint pinch bolts to 28 Nm (21 lbs. ft.).

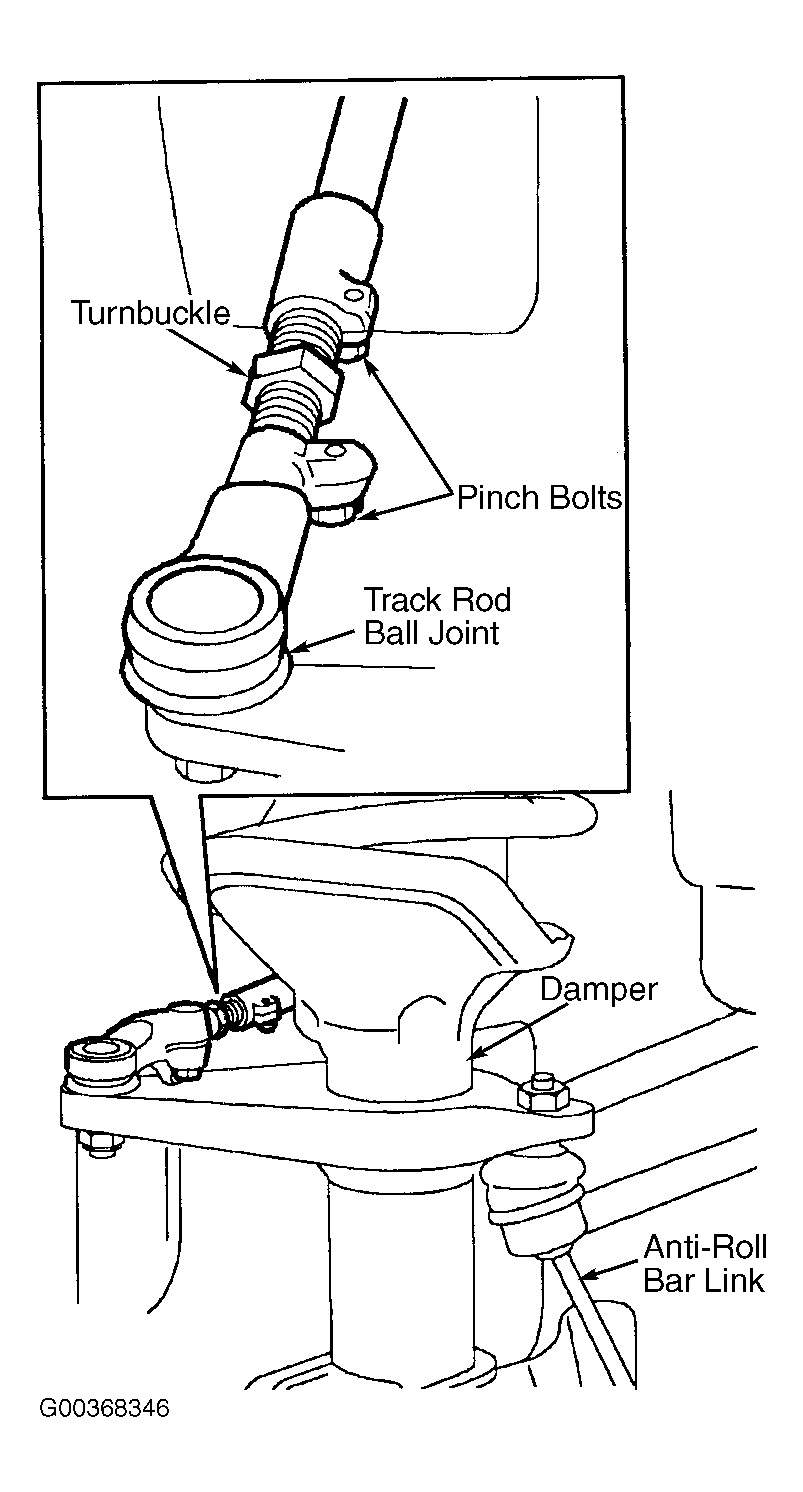

Fig 1: Adjusting Front Alignment

Courtesy of LAND ROVER NORTH AMERICA, INC.

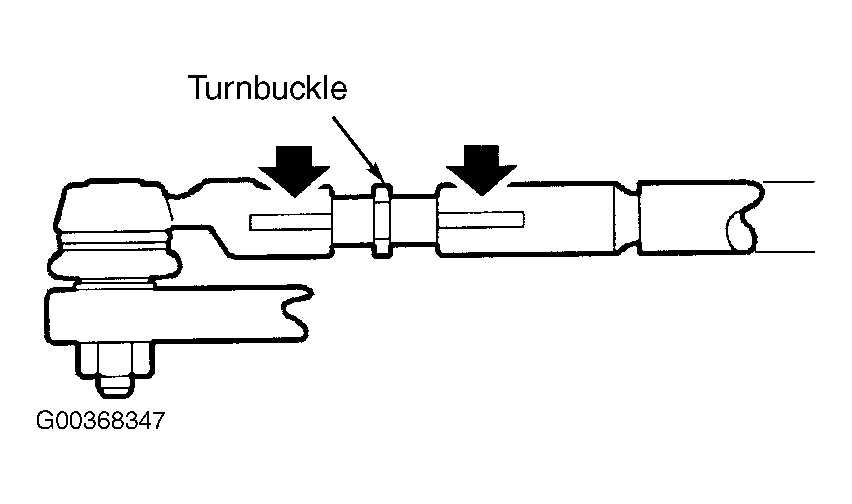

Fig 2: Aligning Slots In Turnbuckle Clamps

Courtesy of LAND ROVER NORTH AMERICA, INC.
