Windows Control Diagram

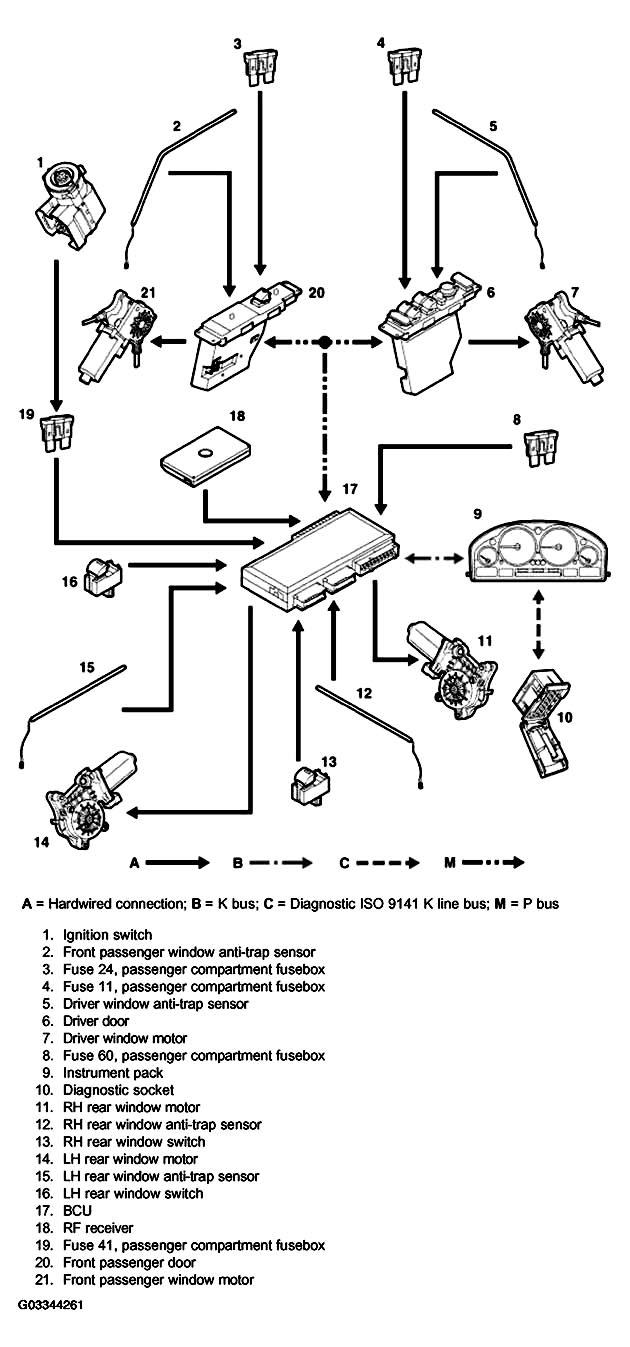

Fig 1: Identifying Windows Control Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
