Checking Alignment

WARNING: This page is about a different car, the 2005 Land Rover Range Rover, 2004 Land Rover Range Rover, and 2003 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the "O" ring from the differential drive tube. See Fig 1 . Thoroughly clean differential drive tube splines and drive shaft splines, ensuring ALL grease is removed. Install drive shaft to the differential drive tube.
  2. Slide drive shaft forwards and install centering flange to drive shaft. See Fig 2 . Temporarily secure centering flange with a suitable nut and bolt.
  3. Rotate centering flange to allow Alignment Tool LRT-54-032 to be placed in position. See Fig 3 . Remove one slider from alignment tool and set aside. Position alignment tool into the bushing opening in the transfer gearbox front output flange. See Fig 4 .
    4. NOTE: It may be necessary to slide drive shaft, together with alignment tool, slightly forwards. This will allow alignment tool to be slightly extracted from the locating bushing in transfer gearbox front output flange, to allow clearance.
  4. Using a 2-mm Allen wrench, loosen slider screw so slider moves freely along ruler. Slide drive shaft rearwards until centering flange nipple is nearly in contact with alignment tool surface. See Fig 4 . Position alignment tool vertically with slider below centering flange nipple.
    5. NOTE: Alignment tool may have to be rotated into a horizontal position to indicate measurement.
  5. Gently pull drive shaft down to its lowest position. Tighten slider screw to identify extent of movement. Record measurement on alignment tool, at inside edge of slider. See Fig 4 .
  6. Loosen the slider screw so that slider moves freely along ruler. Position alignment tool vertically with slider above centering flange nipple. Gently push drive shaft up to its highest position and move slider down to top of centering flange nipple.
    7. NOTE: The alignment tool may have to be rotated into a horizontal position to note the measurement.
  7. Tighten slider screw using Allen wrench. Record measurement on alignment tool, at inside edge of slider. See Fig 5 .
  8. If recorded measured distances above and below locating bushing are equal within 0.039" (1.0 mm), differential is correctly aligned to transfer box front output flange. Install front drive shaft. See FRONT DRIVE SHAFT in DRIVE AXLES article.
  9. If the measured distances are not equal within 0.039" (1.0 mm), adjust differential alignment. See ADJUSTING DIFFERENTIAL  .

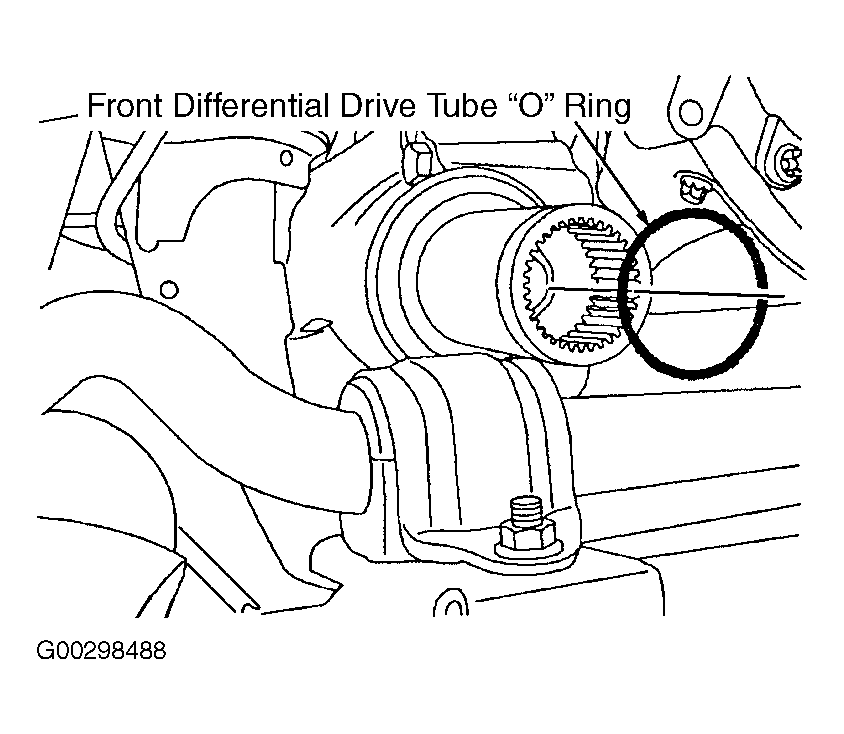

Fig 1: Locating Front Differential Drive Tube "O" Ring
G00298488Courtesy of LAND ROVER NORTH AMERICA, INC.

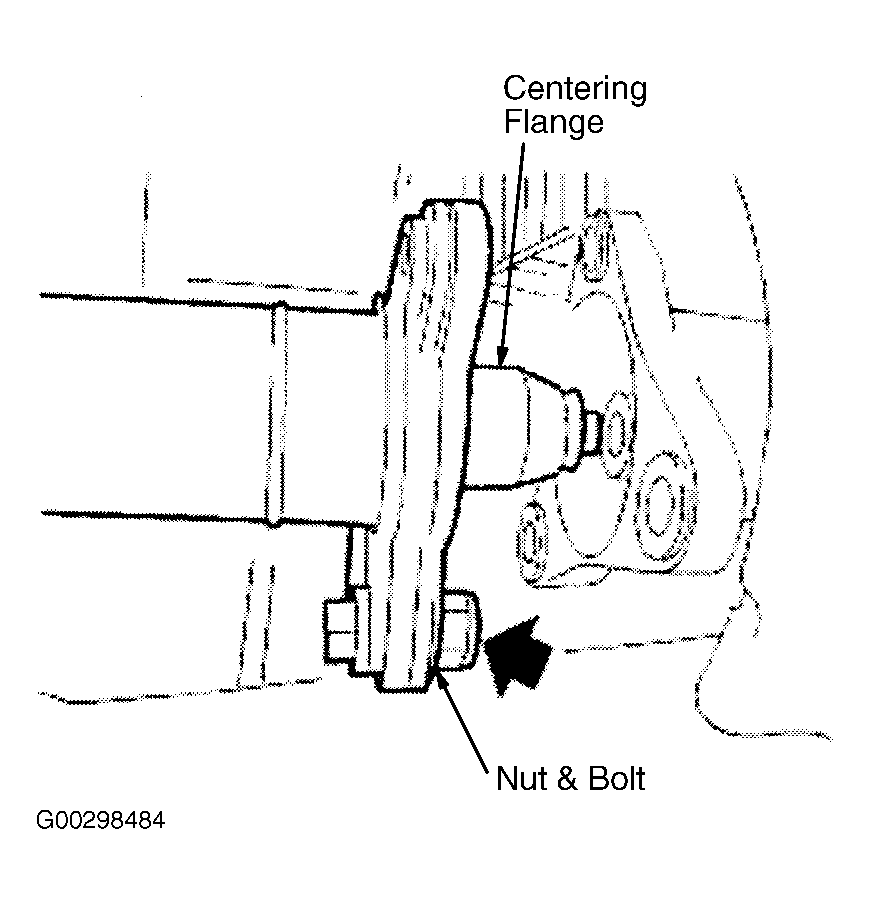

Fig 2: Installing Centering Flange To Drive Shaft
G00298484Courtesy of LAND ROVER NORTH AMERICA, INC.

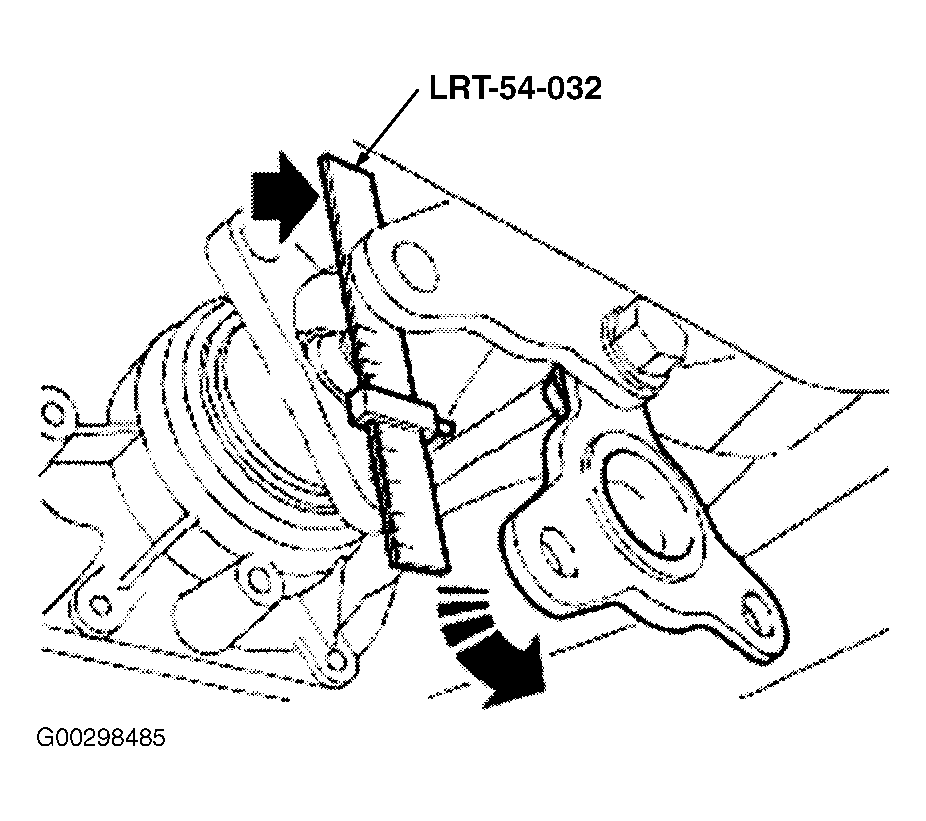

Fig 3: Installing Differential Alignment Tool LRT-54-032
G00298485Courtesy of LAND ROVER NORTH AMERICA, INC.

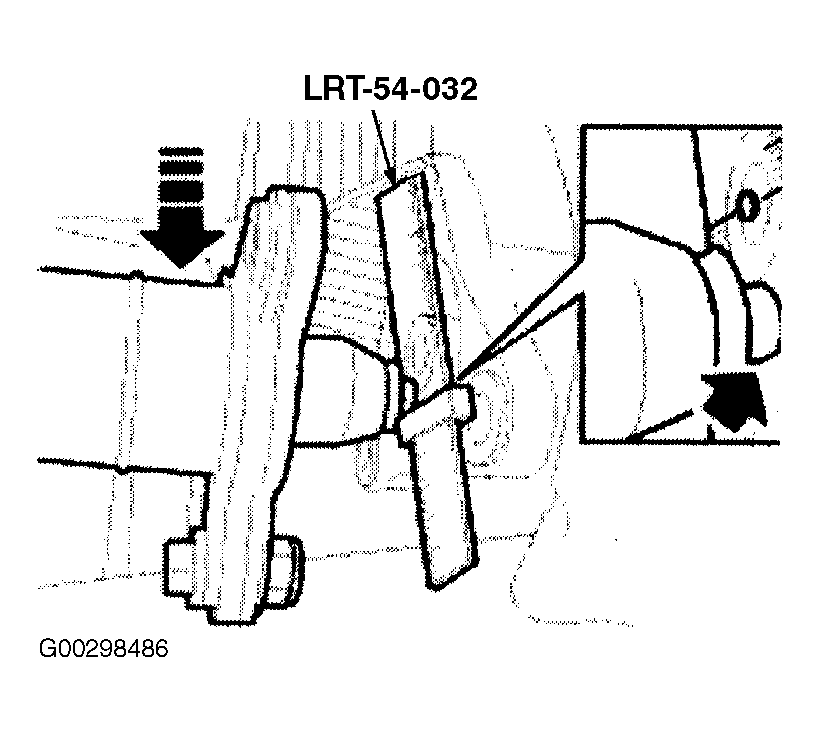

Fig 4: Positioning Drive Shaft To Alignment Tool LRT-54-032
G00298486Courtesy of LAND ROVER NORTH AMERICA, INC.

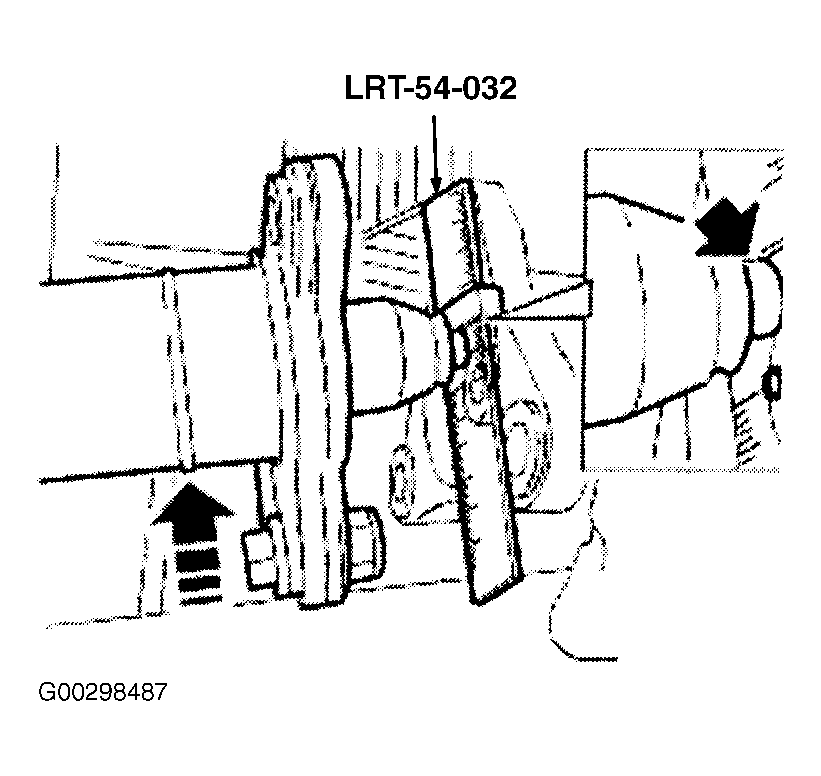

Fig 5: Measuring Front Differential Alignment
G00298487Courtesy of LAND ROVER NORTH AMERICA, INC.

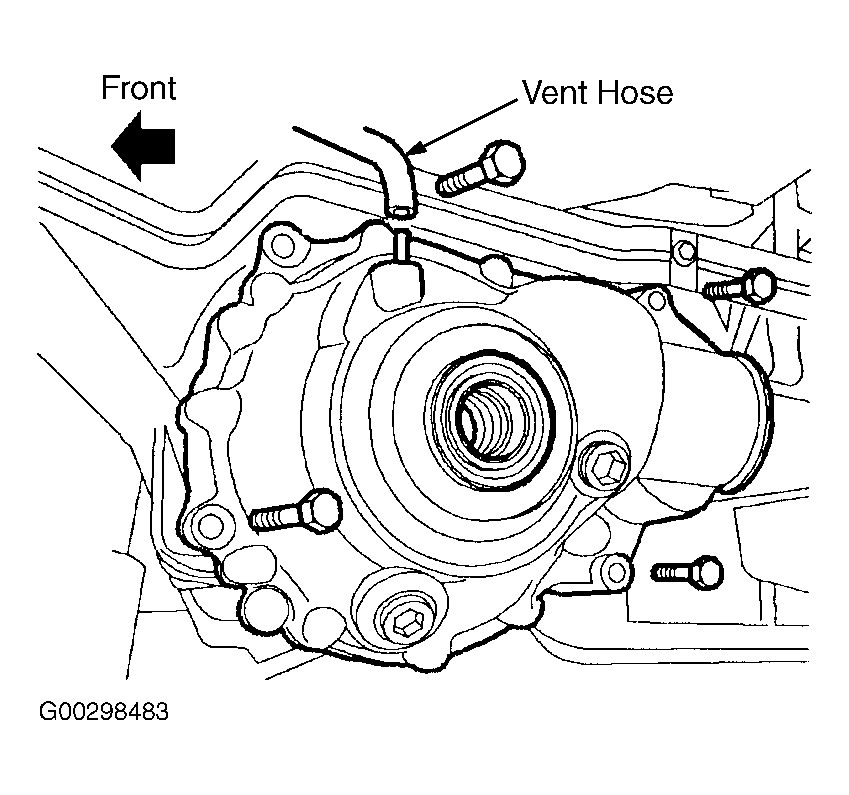

Fig 6: Locating Front Differential Mounting Bolts
G00298483Courtesy of LAND ROVER NORTH AMERICA, INC.
