70.65.49 Modulator unit: Remove

Td4 and KV6 models: Remove engine acoustic cover if fitted.
Refer to REMOVAL .

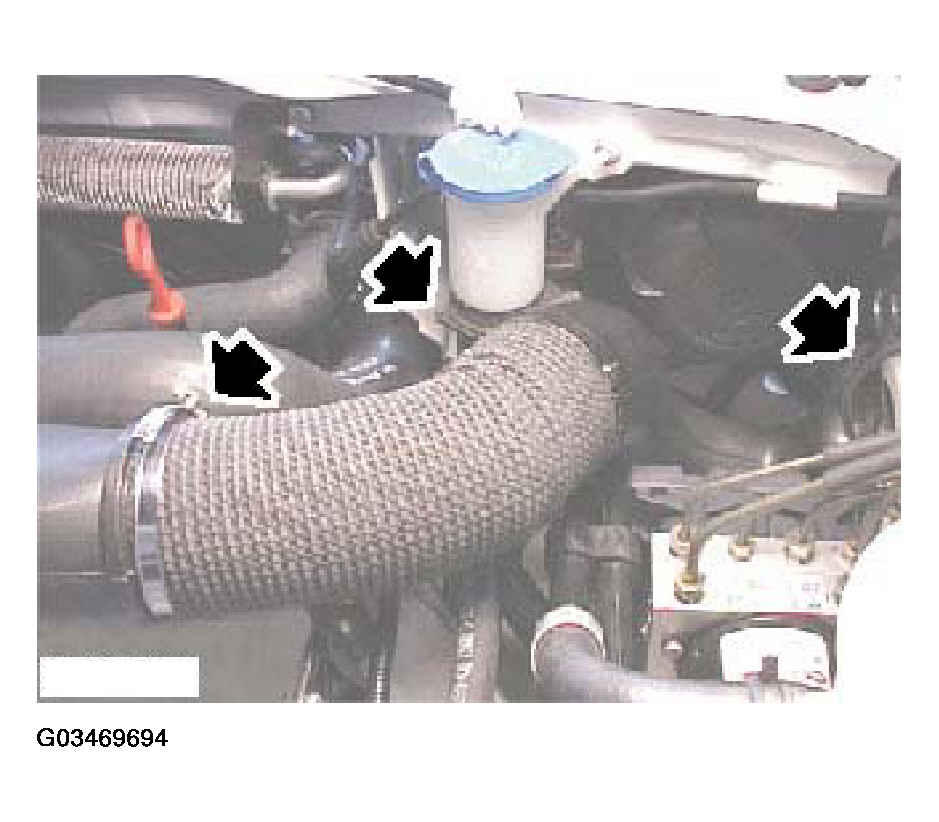

Fig 1: Releasing Clip Securing Harness And Intake Duct To Body
Courtesy of LAND ROVER NORTH AMERICA, INC.
Td4 and KV6 models: Release and remove air intake hose.
Td4 and KV6 models: Release clip securing harness and intake duct to body.
Td4 and KV6 models: Lift duct from body, release clip from washer reservoir filler hose.
Td4 and KV6 models: Release and remove air intake duct.

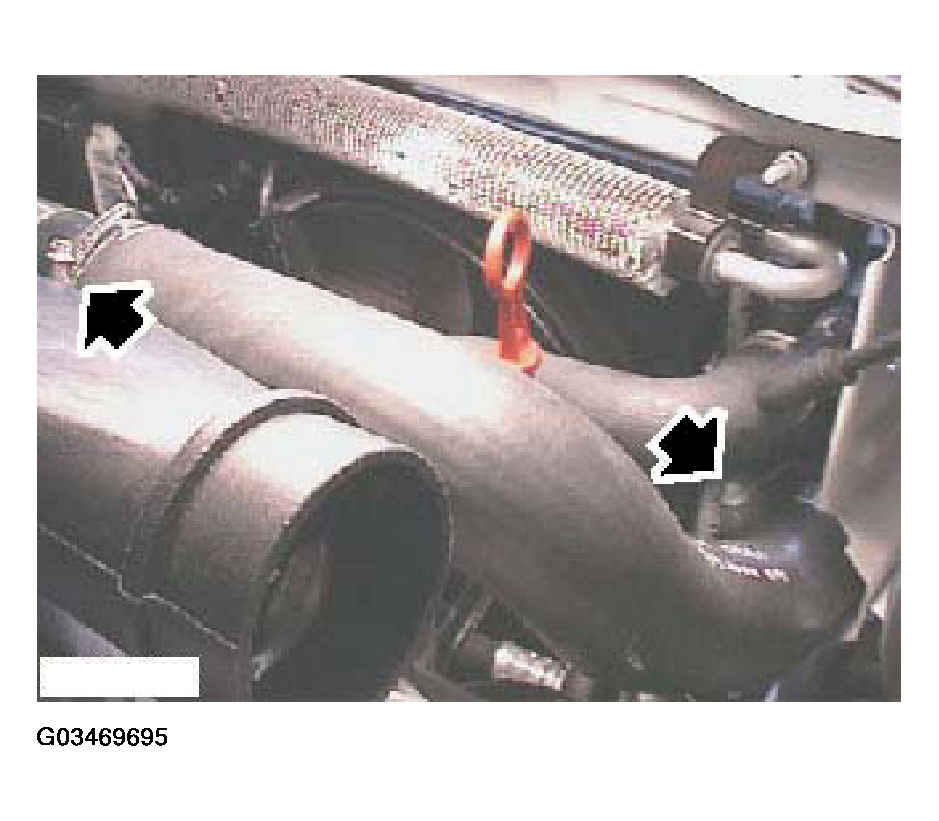

Fig 2: Removing Intercooler Outlet Hose
Courtesy of LAND ROVER NORTH AMERICA, INC.
Td4 models: Loosen 2 clips and remove intercooler outlet hose.

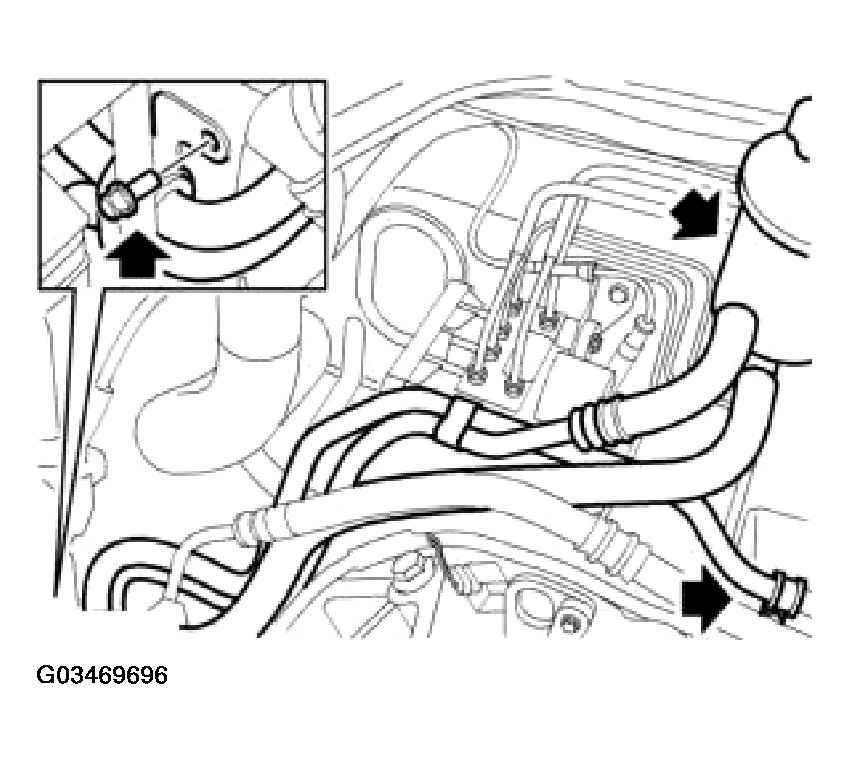

Fig 3: Removing 2 Bolts Securing PAS Oil Cooler Pipes
Courtesy of LAND ROVER NORTH AMERICA, INC.
Remove 2 bolts securing PAS oil cooler pipes.
Release PAS reservoir from mounting bracket and position aside.

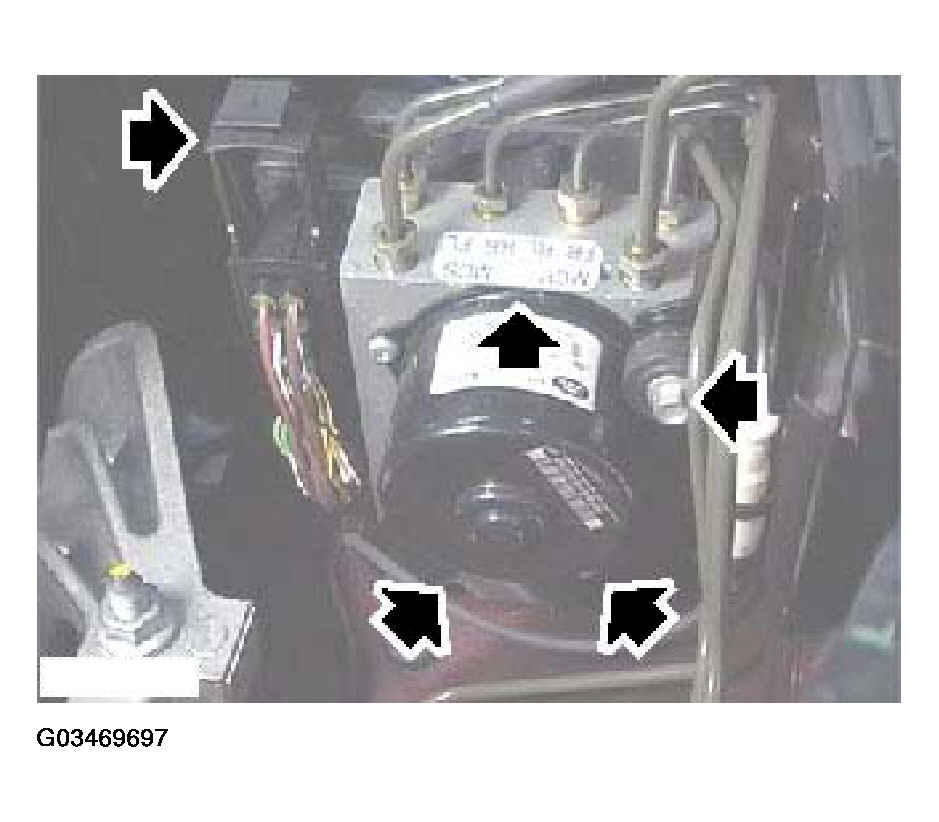

Fig 4: Disconnecting ABS Modulator Multiplug
Courtesy of LAND ROVER NORTH AMERICA, INC.
Release catch and disconnect ABS modulator multiplug.
Position cloth under modulator to absorb fluid spillage.
CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove fluid and clean area with water.
Disconnect 2 inlet brake pipes unions from ABS modulator.
Disconnect 4 outlet brake pipes unions from ABS modulator.
CAUTION: Always fit plugs to open connections to prevent contamination.
Remove 3 bolts securing ABS modulator to mounting bracket.
Release and remove ABS modulator from mounting bracket.
