Touch Screen Display
The Touch Screen Display (TSD) forms the basis of the audio system. It communicates with the rest of the audio/infotainment system on the MOST ring and allows control of the audio system and other infotainment systems from a single point.
The TSD communicates with the Integrated Head Unit (IHU) on the MOST ring and provides the driver interface and driver display of the audio system. The TSD also provides driver display and control of the telephone, the rear view camera, the Venture Cam, the navigation system, the Traffic Message Channel and the rear seat entertainment.

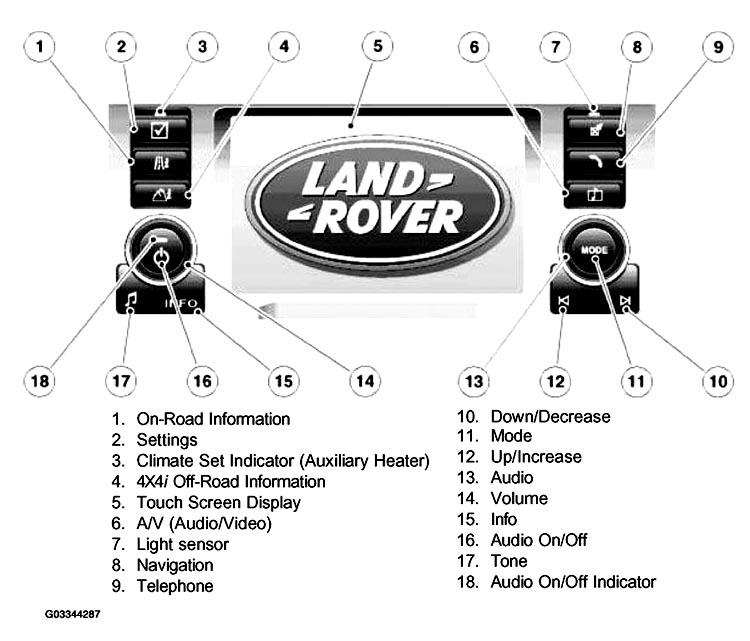

The audio system and other systems are operated by a combination of the physical buttons located on each side of the screen and the 'virtual' buttons displayed on the touch screen. For clarification, the physical buttons are referred to as 'buttons' and the touch screen virtual buttons are referred to as 'icons'.
The TSD is a touch sensitive, 800 X 600 pixels LCD VGA screen which displays in a 15.9:1 format.
Care should be taken with the TSD to ensure its correct operation:
- The screen should be cleaned with a lightly, water moistened cloth. Do not use chemical agents or domestic products to clean the screen or any part of the surround.
- Only use your finger to operate the touch screen. Ensure you only use one finger to avoid incorrect entries.
- A short light press of the touch screen is sufficient. Excessive pressure can damage the screen.
Six connectors provide the interface between the TSD and the other system components.
