Interior Trim Components: Description: General: Notes
The interior mirror incorporates either manual or automatic dimming and has the security system alarm LED installed on the underside of the mirror housing. Manual dimming is performed by rotating the cover of the alarm LED. Automatic dimming is performed by electrochromic mirror glass.
On vehicles with a central door locking system operated by an infrared remote handset, the infrared receiver is also incorporated into the mirror housing.
NAS vehicles all have automatic dimming and also incorporate a HomeLink® universal transmitter in the mirror housing.

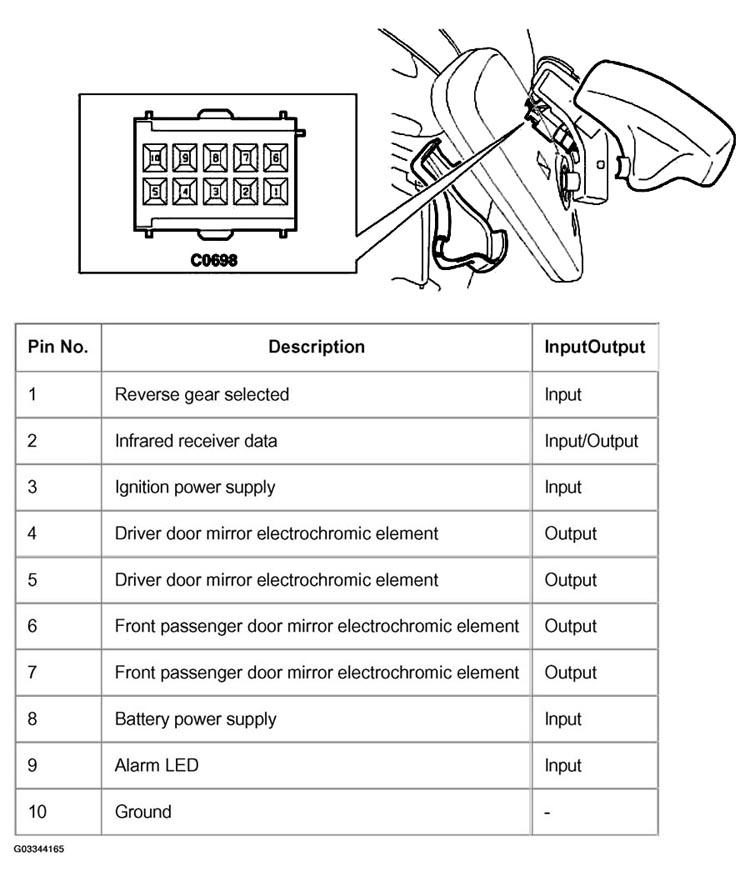

The interior mirror is connected to the vehicle wiring by an electrical connector concealed by the finishers covering the mounting stem. A permanent power feed from the passenger compartment fusebox supplies the alarm LED and, where fitted, the infrared receiver, which are controlled by the Body Control Unit (BCU). When the ignition switch is in position II, a second power feed, also from the passenger compartment fusebox, supplies the electrochromic mirror circuits and the universal transmitter.
