Dynamic Stability Control System Control Diagram

Fig 1: Dynamic Stability Control System Control Diagram

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Hardwired connection; C= DS2; D = CAN bus

1. HDC lamp
2. Hand brake warning lamp
3. Brake assist/brake warning lamp
4. Steering angle sensor
5. ECM
6. EAT ECU
7. Air suspension ECU
8. Transfer box ECU
9. Diagnostic socket
10. Parking brake switch
11. Fuse
12. Light check module (LCM)
13. Brake light switch
14. Brake pressure sensor
15. Wheel speed sensors
16. Wheel speed sensors
17. Wheel speed sensors
18. Wheel speed sensors
19. Fuse
20. DSC sensor

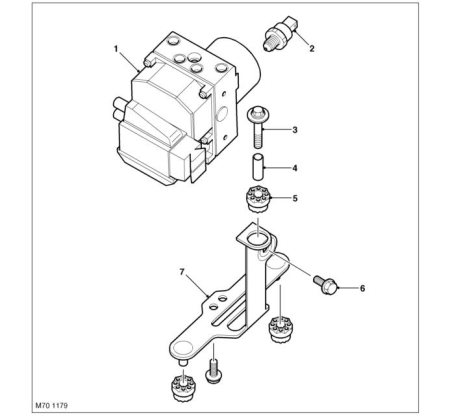

21. DSC hydraulic unit
22. HDC switch
23. Main relay
24. DSC switch
25. ABS lamp
26. DSC lamp
27. Instrument pack
