Fuel Delivery System Component Locations

For fuel delivery system component locations see Fig 1 or Fig 2 .

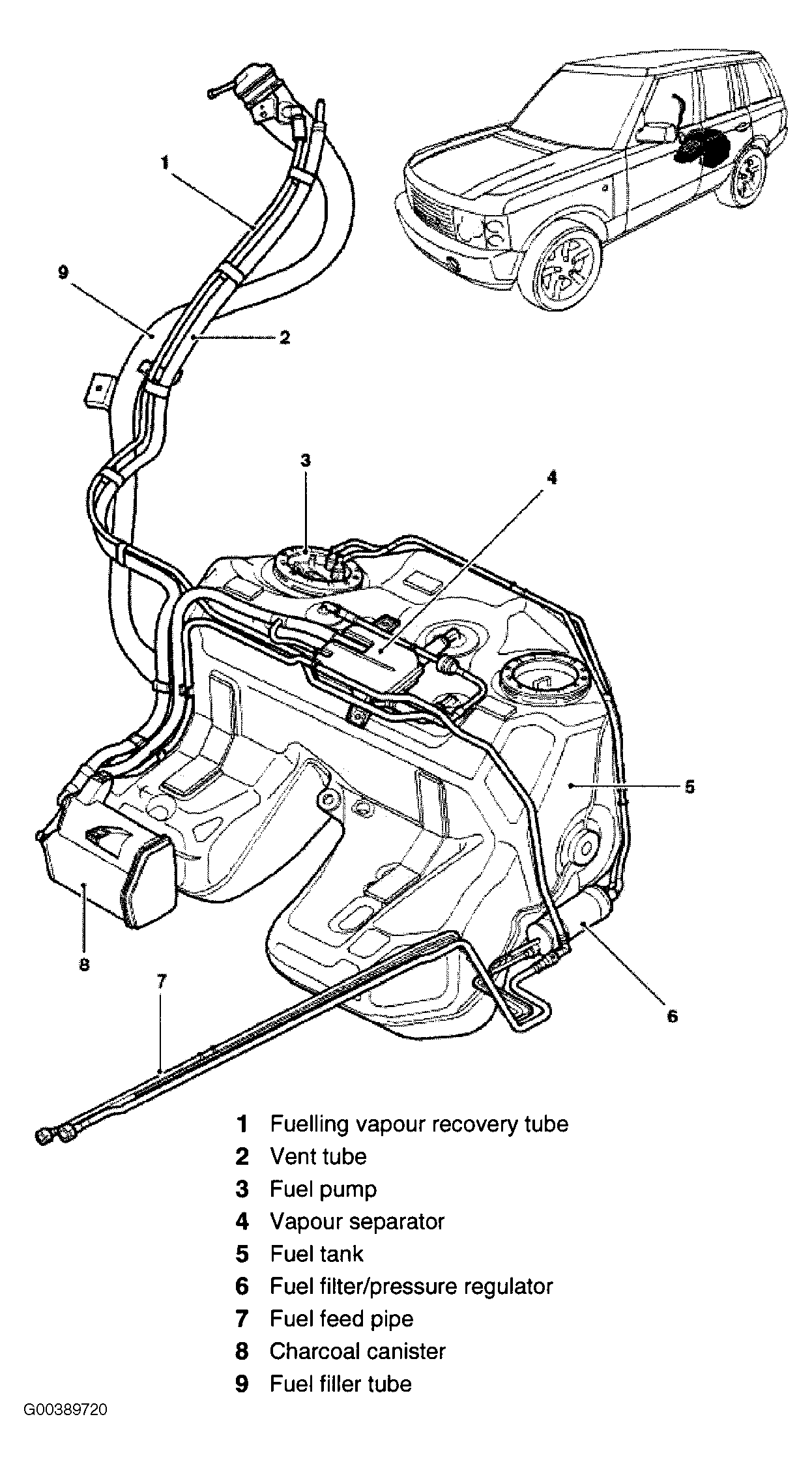

Fig 1: Fuel Delivery System Component Location (All Except NAS)

Courtesy of LAND ROVER NORTH AMERICA, INC.

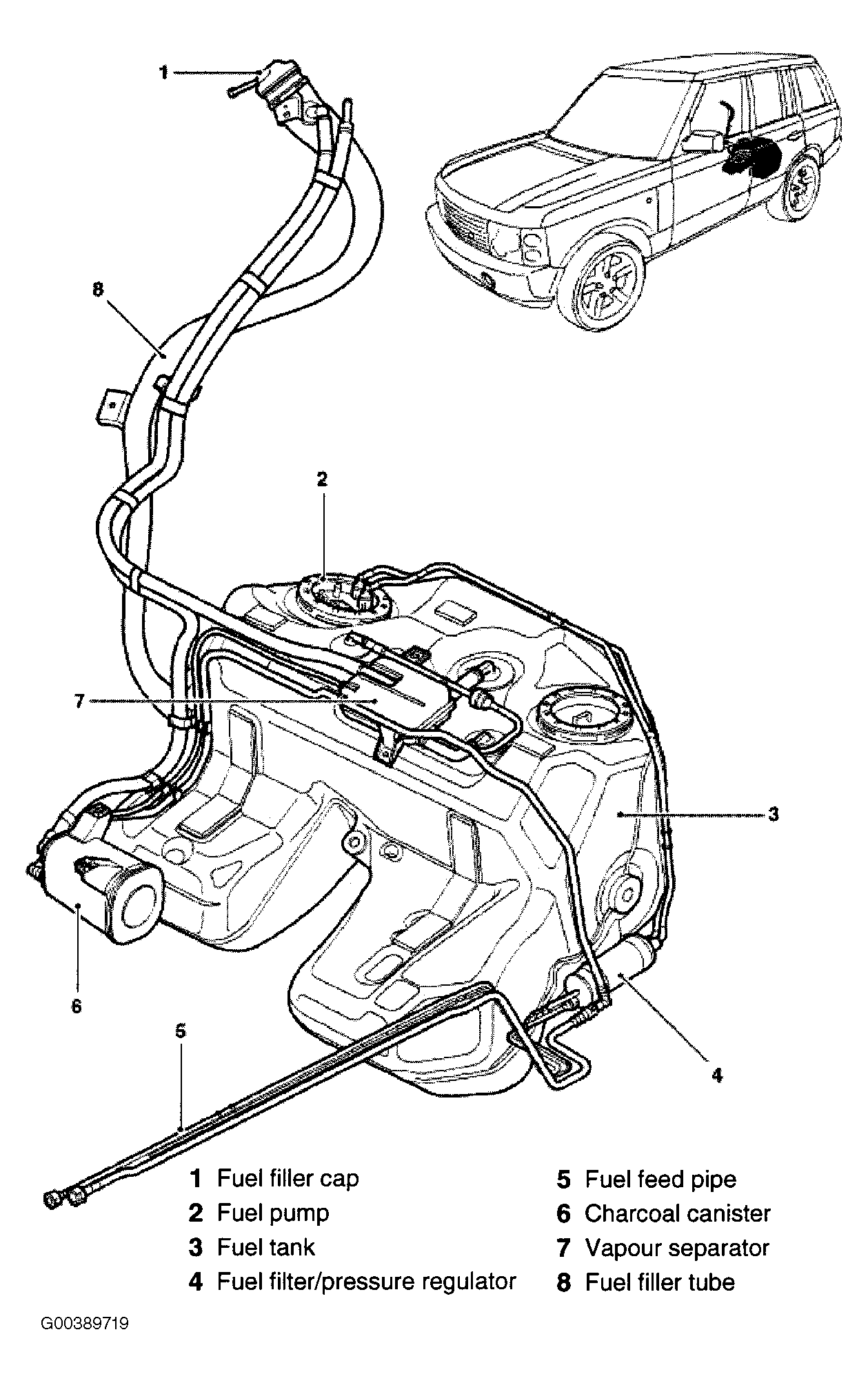

Fig 2: Fuel Delivery System Component Location (NAS)

Courtesy of LAND ROVER NORTH AMERICA, INC.
