Specifications & Procedures: Specifications

Use illustration for wheel alignment specifications. See Fig 1.

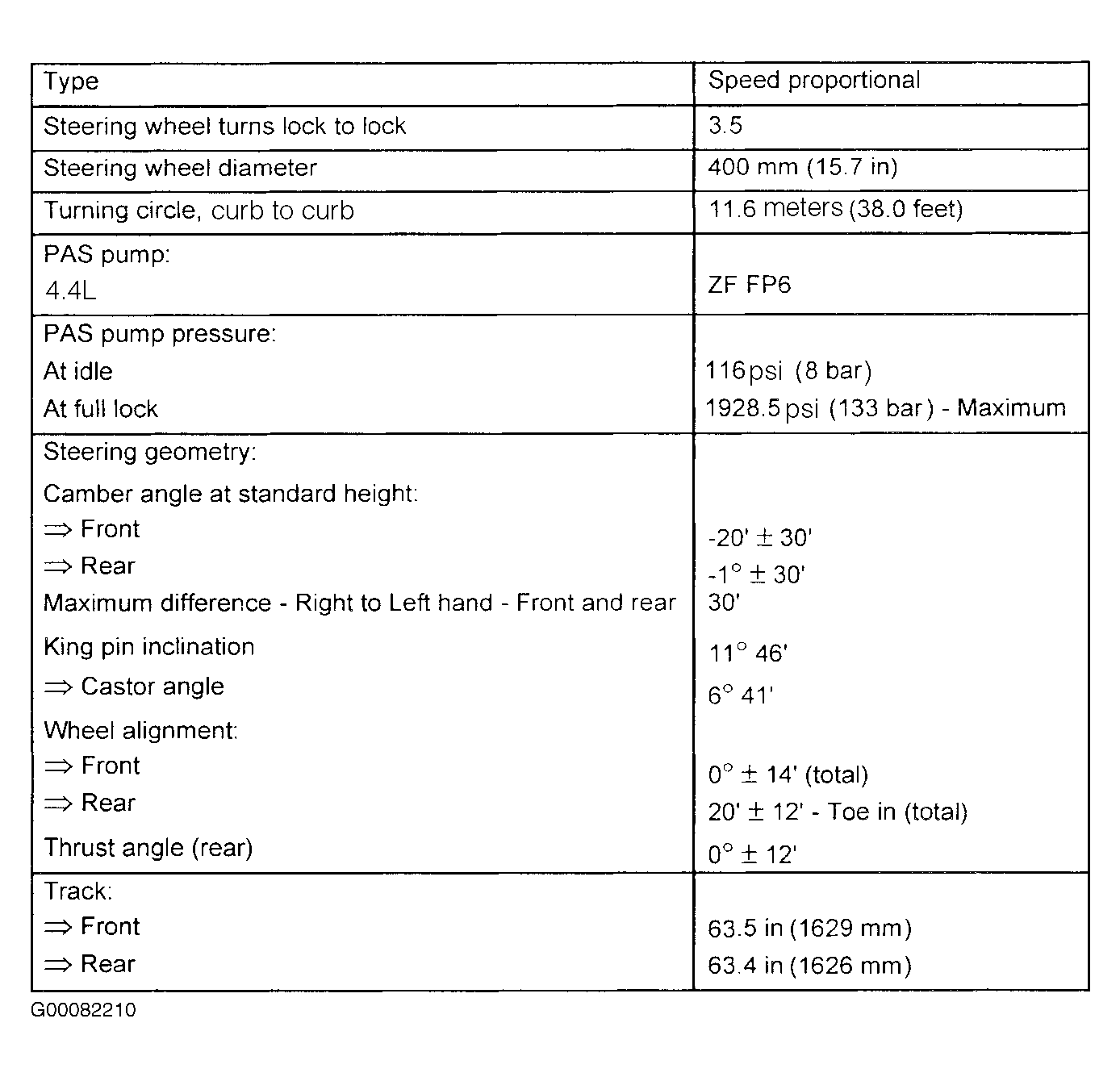

Fig 1: Front & Rear Wheel Alignment Specifications

Courtesy of LAND ROVER NORTH AMERICA, INC.
