KV6 Engine - Cylinder Block Components

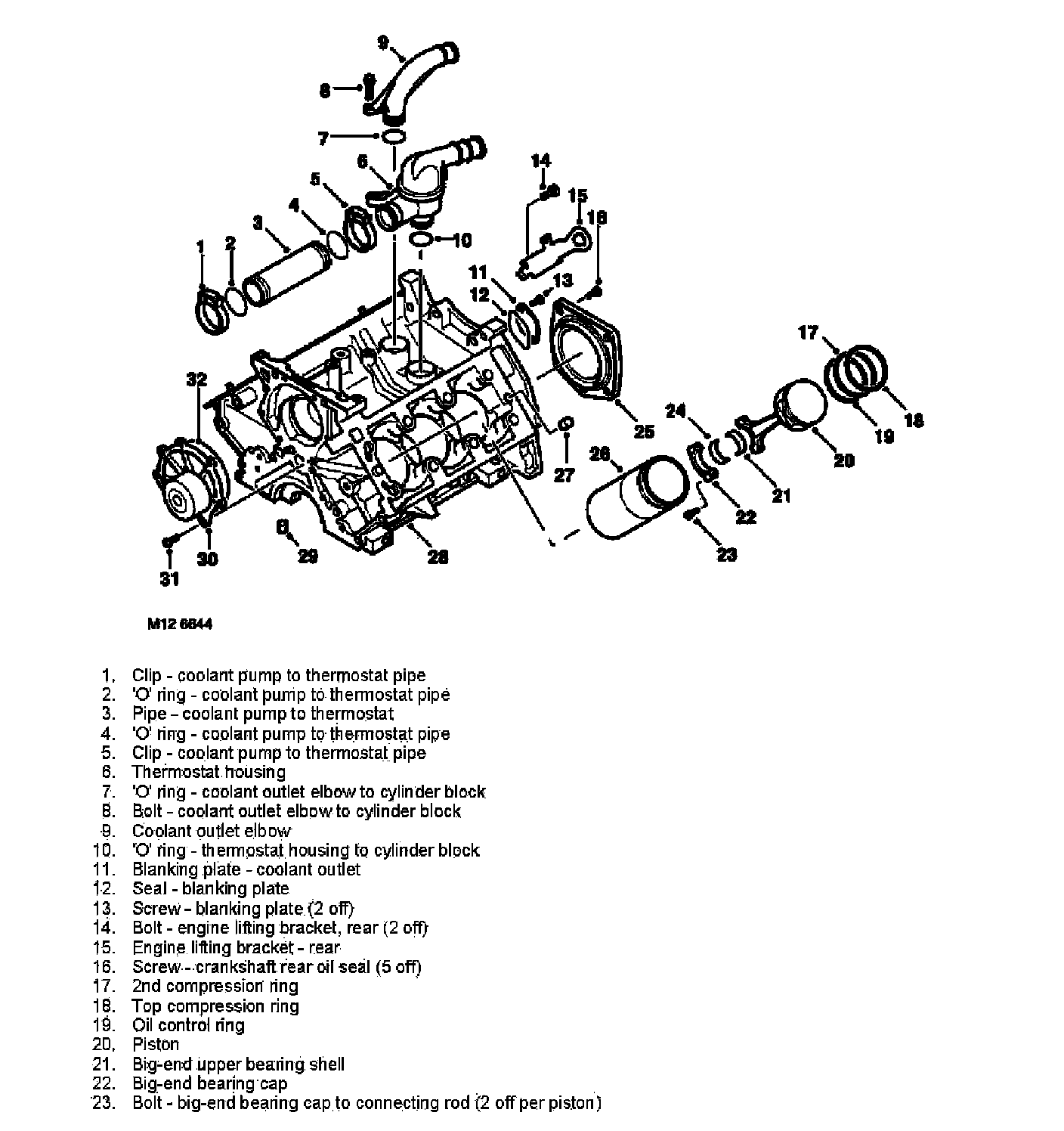

KV6 Engine - Cylinder Block Components (part 1):



KV6 Engine - Cylinder Block Components (part 2):
