Cylinder Head Assembly



KV6 Engine - Cylinder Head Components

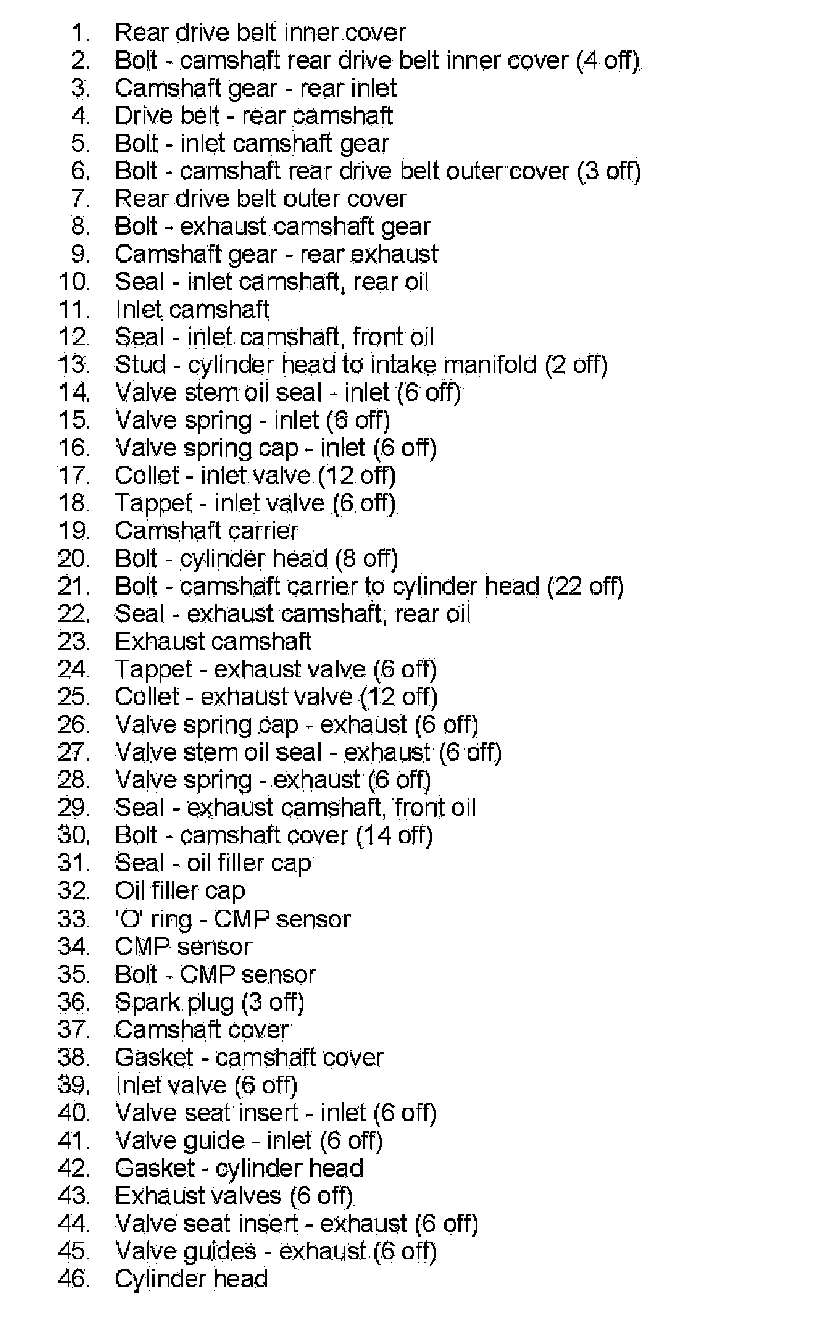

KV6 Engine - Cylinder Head Components (part 1):

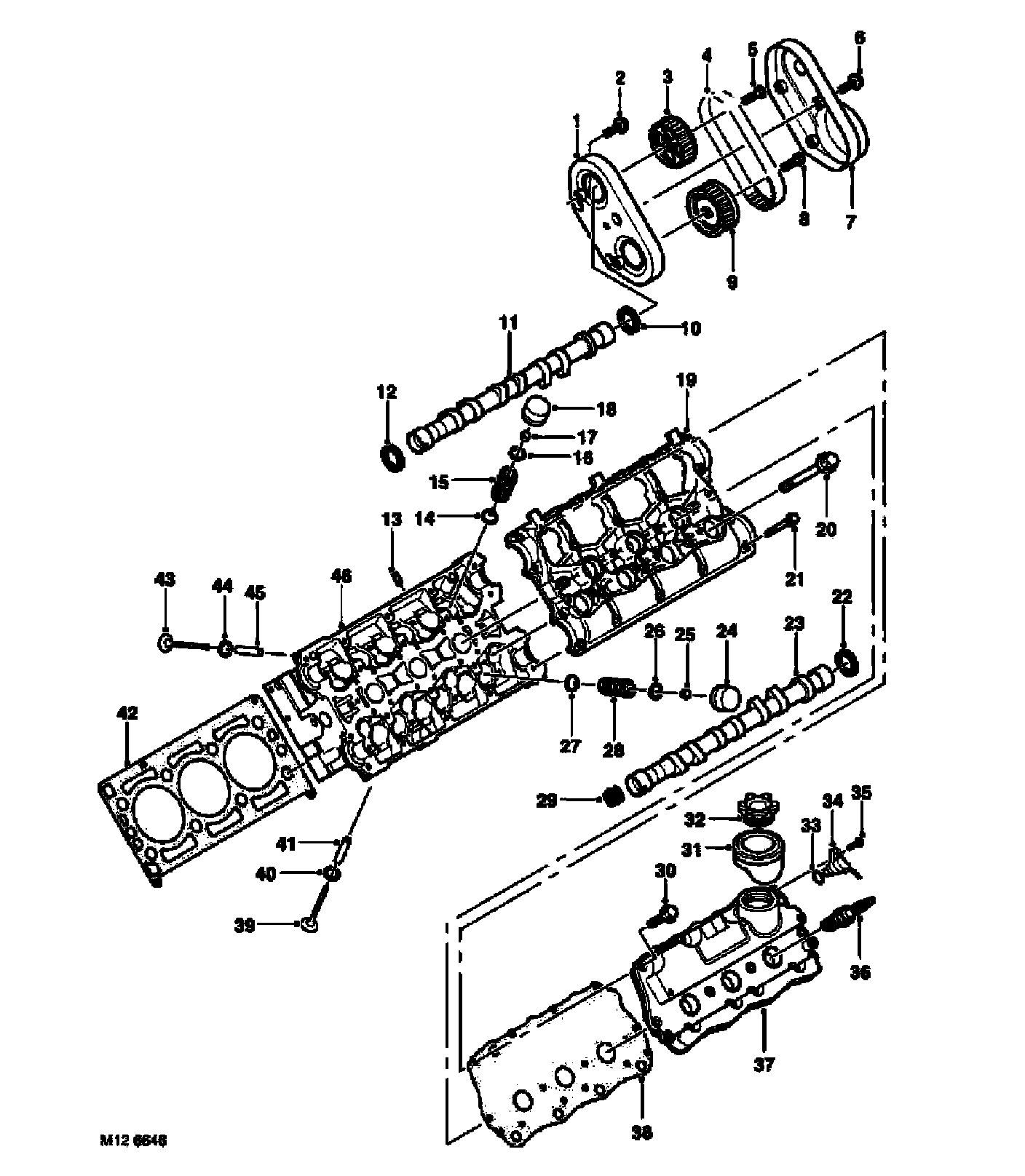

KV6 Engine - Cylinder Head Components (part 2):





LH cylinder bank shown, RH cylinder bank similar
