System Diagram

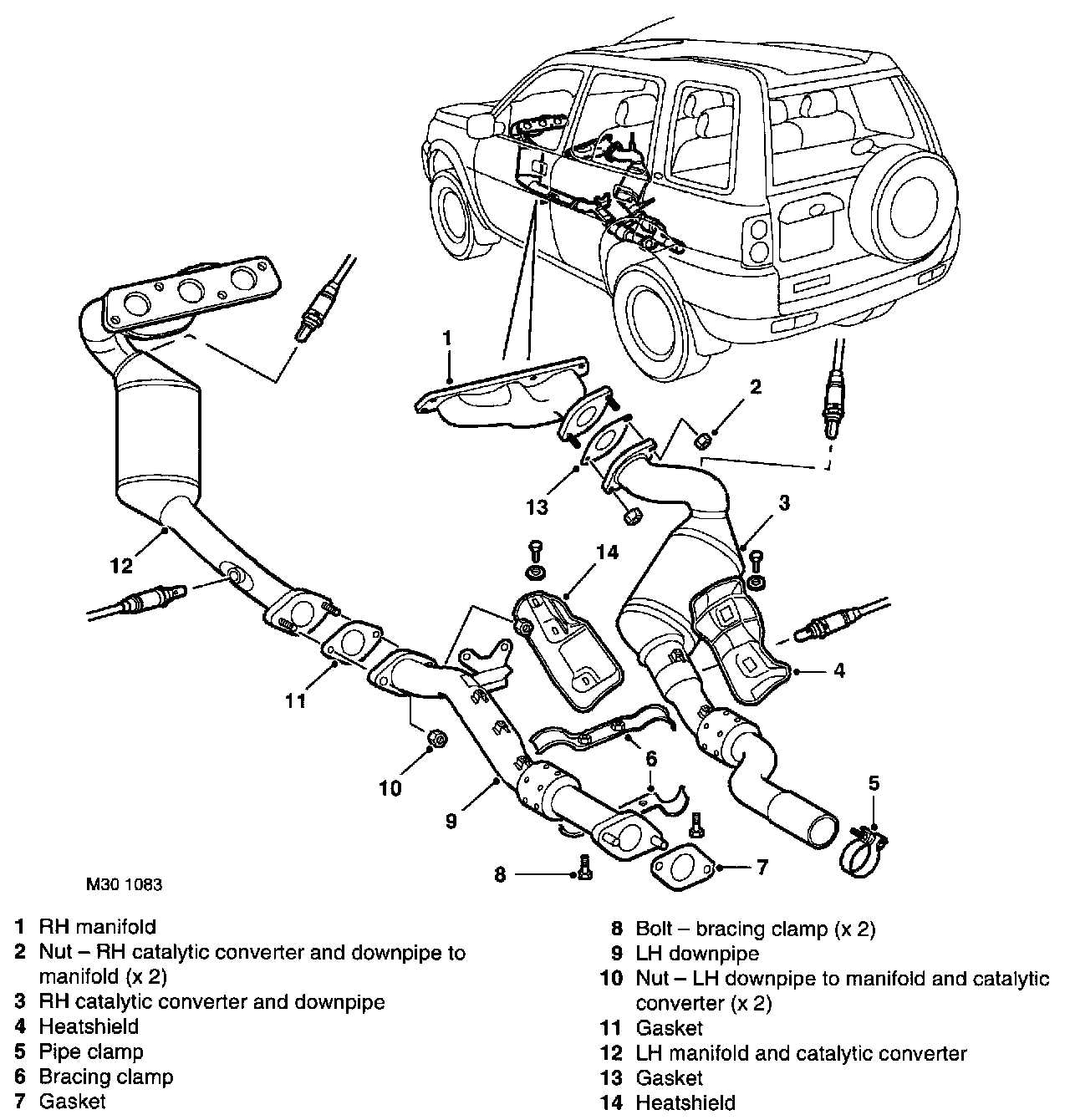

Exhaust System
Component Layout Sheet 1 of 2 (NAS)

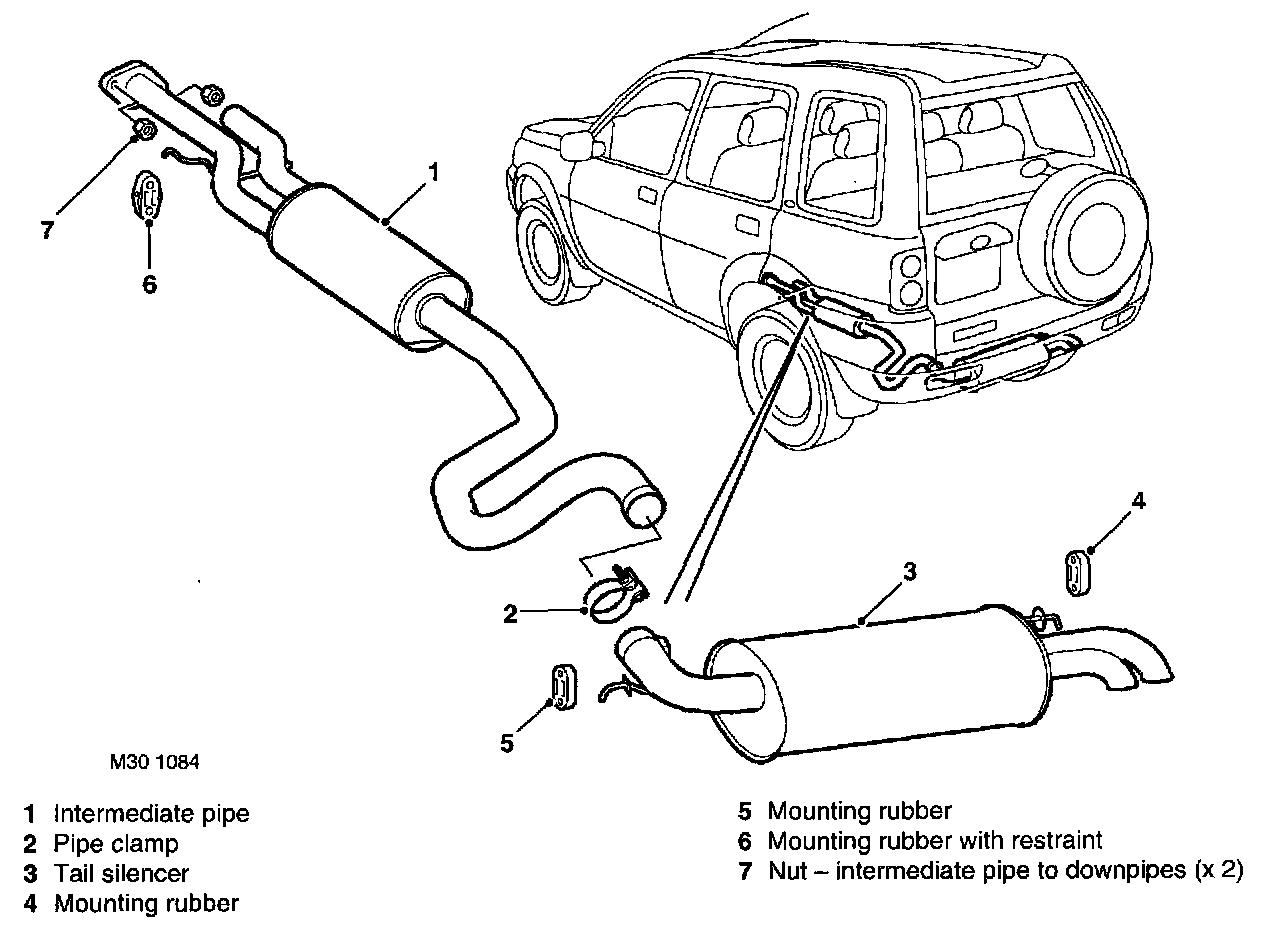

Exhaust System
Component Layout Sheet 2 of 2 (NAS)
