Manifold Pressure/Vacuum Sensor: Service and Repair

Sensor - Combined - Manifold Absolute Pressure/Intake Air Temperature (MAP/IAT)

Service Repair No - 18.22.26

Remove
1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

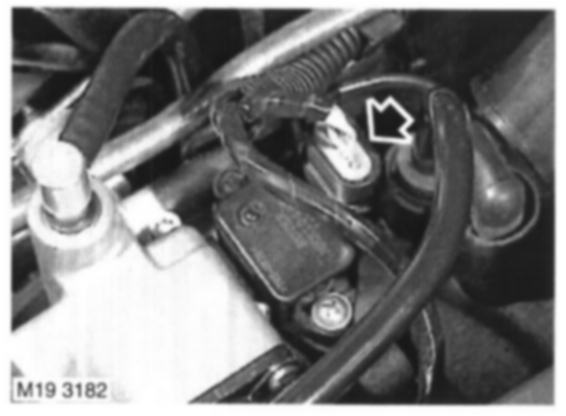

3. Disconnect multiplug from MAP/IAT sensor.





4. Remove 2 screws securing MAP/IAT sensor to inlet manifold chamber, remove sensor.

Refit
1. Clean MAP/IAT sensor and mating face on inlet manifold chamber.
2. Position MAP/IAT sensor, fit and tighten screws.
3. Connect multiplug to MAP/IAT sensor.
4. Fit engine acoustic cover.
5. Connect battery earth lead.
