Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

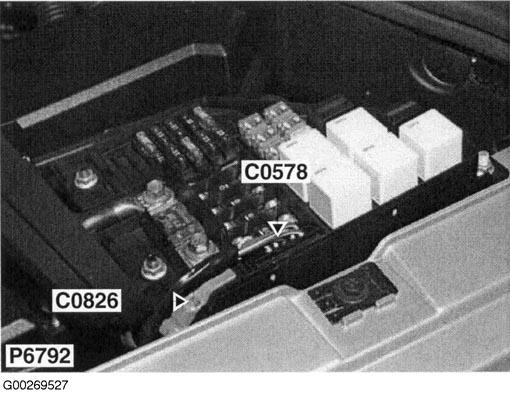

Engine Compartment Fuse Box Connector (C0578) Left rear of engine compartment. See Figure .
Engine Compartment Fuse Box Connector (C0826) Left rear of engine compartment. See Figure .

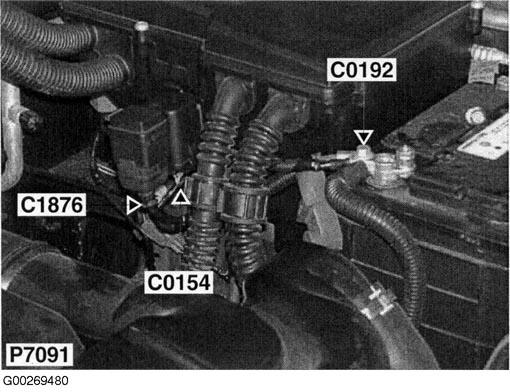

Fuse Holder Connector (C1876) At left side of engine compartment. See Figure .

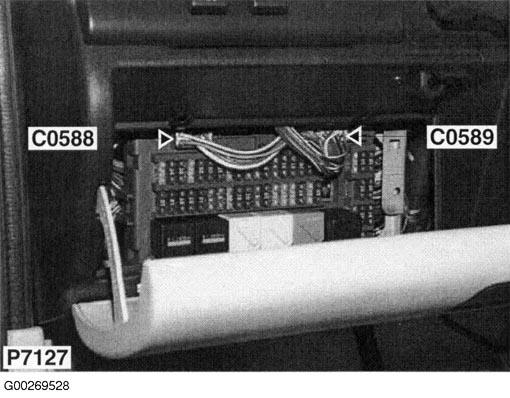

Passenger Compartment Fuse Box (P7127) Behind left side of dash. See Figure .
