Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

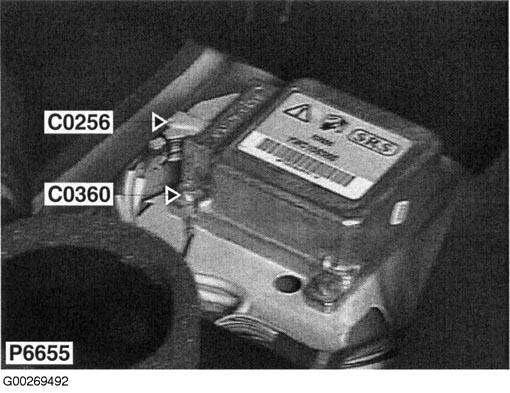

| Air Bag DCU Connector (C0256) | Behind center console. See Figure . |

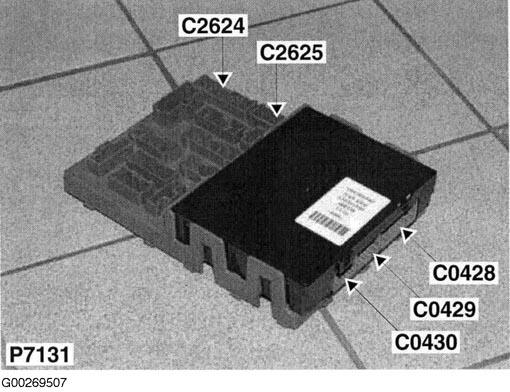

| Central Control Unit Connector (C0428) | Behind passenger compartment fuse box. See Figure . |
| Central Control Unit Connector (C0429) | Behind passenger compartment fuse box. See Figure . |
| Central Control Unit Connector (C0430) | Behind passenger compartment fuse box. See Figure . |

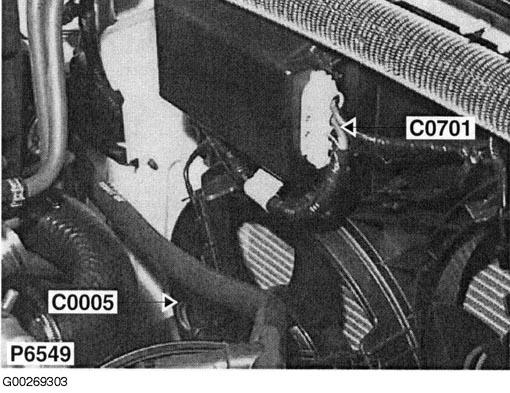

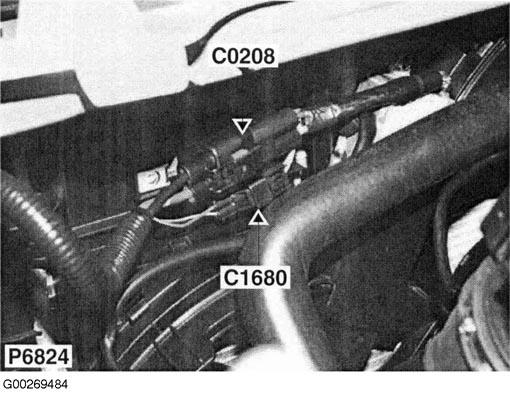

| Cooling Fan Control Unit Connector (C0208) | At left side of engine compartment. See Figure . |
| Cooling Fan Control Unit Connector (C0701) | At left side of engine compartment. See Figure . |
| Cooling Fan Control Unit Connector (C1680) | At left side of engine compartment. See Figure . |

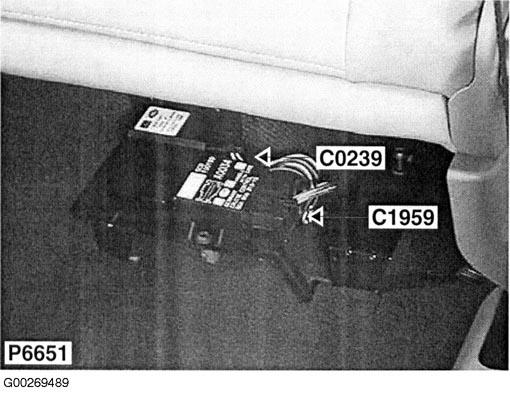

| Cruise Control ECU Connector (C0239) | Under right front seat. See Figure . |

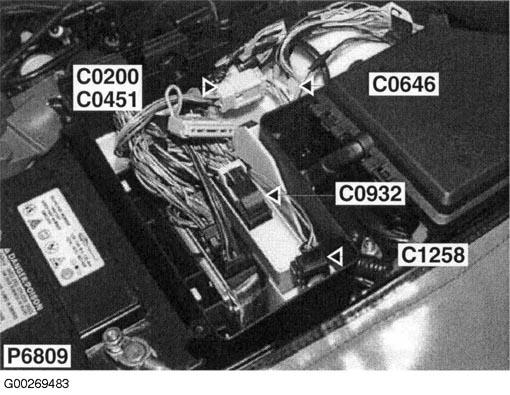

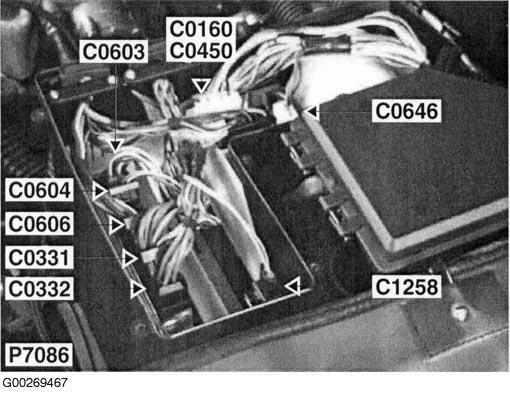

| Electronic Automatic Transmission ECU Connector (C0932) | Inside "E" box. See Figure . |
| Engine Control Module Connector (C0331) | Inside "E" box. See Figure . |
| Engine Control Module Connector (C0332) | Inside "E" box. See Figure . |
| Engine Control Module Connector (C0603) | Inside "E" box. See Figure . |
| Engine Control Module Connector (C0604) | Inside "E" box. See Figure . |
| Engine Control Module Connector (C0606) | Inside "E" box. See Figure . |

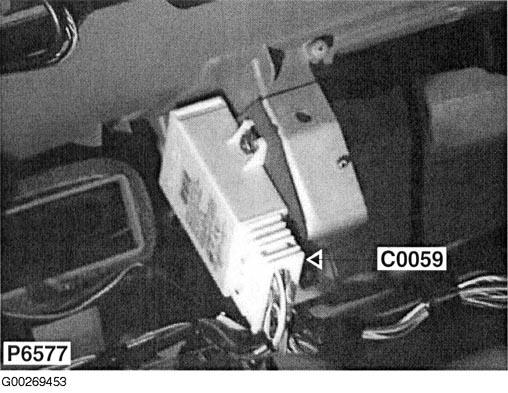

| Engine Immobilization ECU Connector (C0052) | Behind center of dash. See Figure . |
| ICE Interface Module Connector (C1897) | Behind center console. |

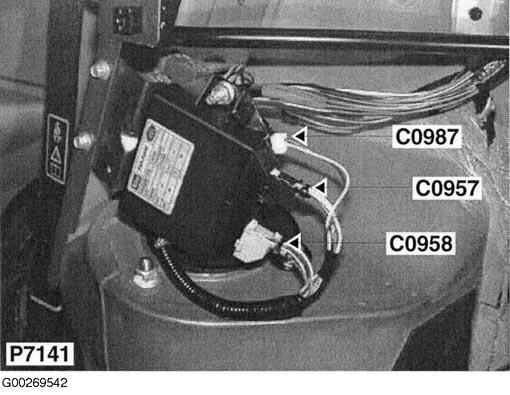

| PDC ECU Connector (P7141) | At right side of luggage compartment. See Figure . |

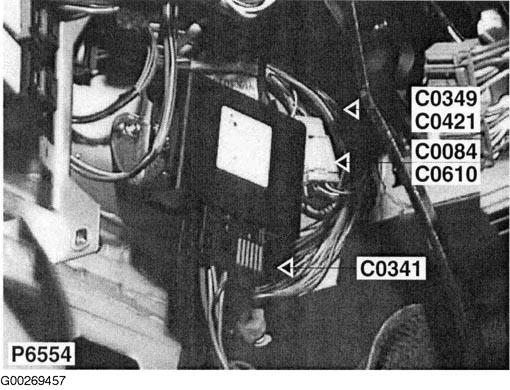

| Window Lift ECU Connector (C0341) | Behind left side of dash. See Figure . |
