General Data: Electrical-Td6

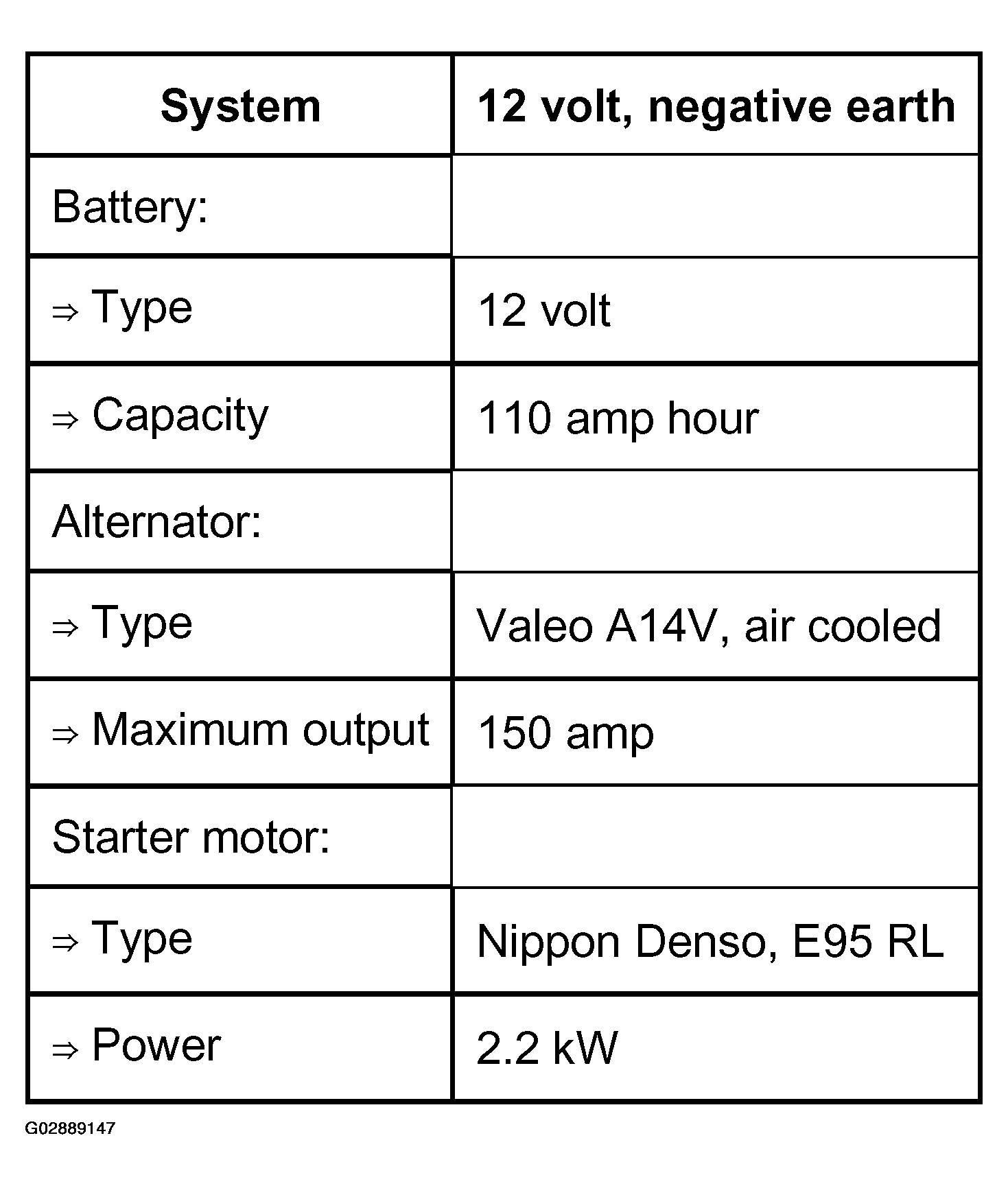

Fig 1: Electrical-V8 Specifications
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
