General Data: Engine-V8

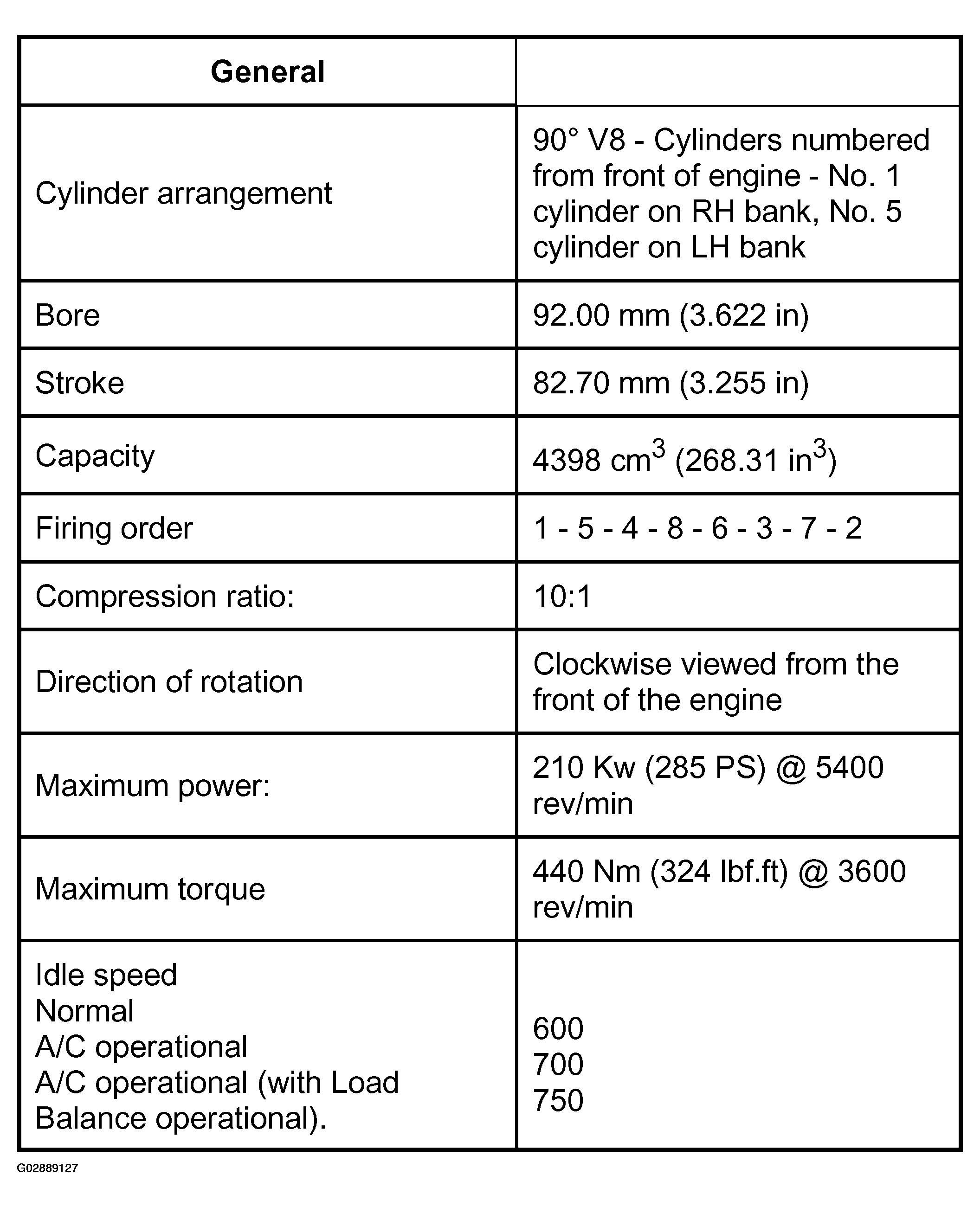

Fig 1: Engine-V8 Specifications(1 Of 7)

G02889127

Courtesy of LAND ROVER NORTH AMERICA, INC.

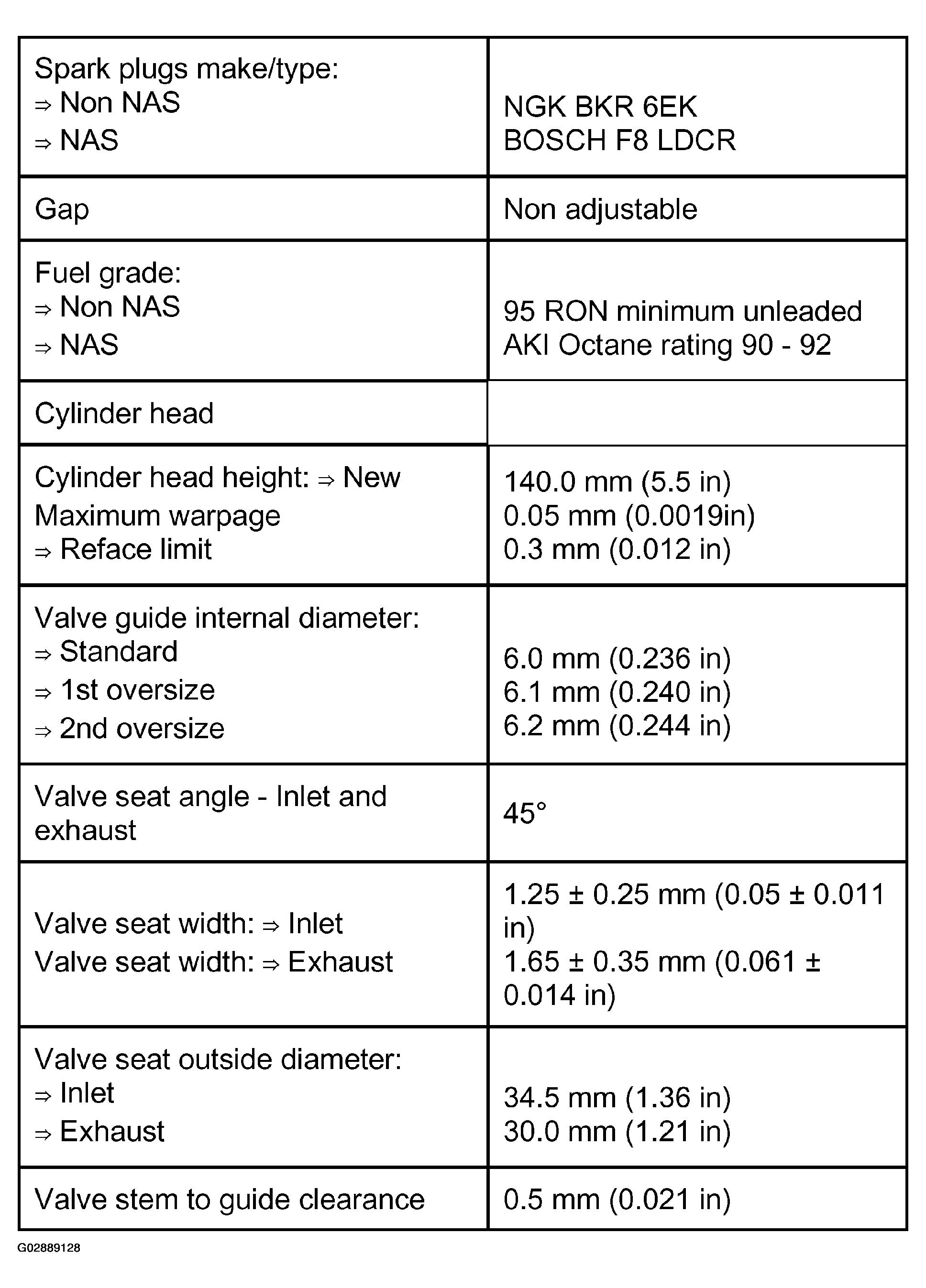

Fig 2: Engine-V8 Specifications(2 Of 7)

G02889128

Courtesy of LAND ROVER NORTH AMERICA, INC.

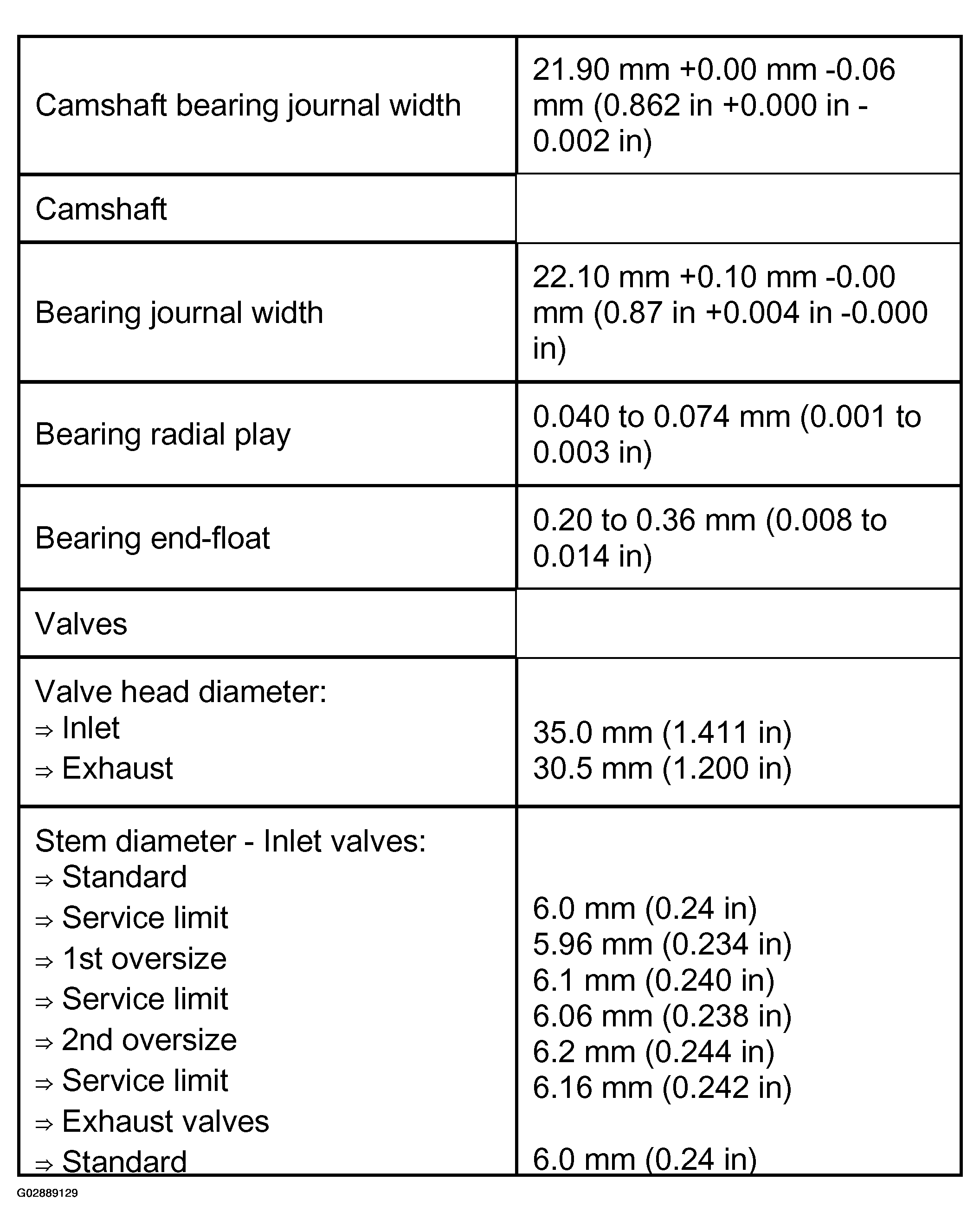

Fig 3: Engine-V8 Specifications(3 Of 7)

G02889129

Courtesy of LAND ROVER NORTH AMERICA, INC.

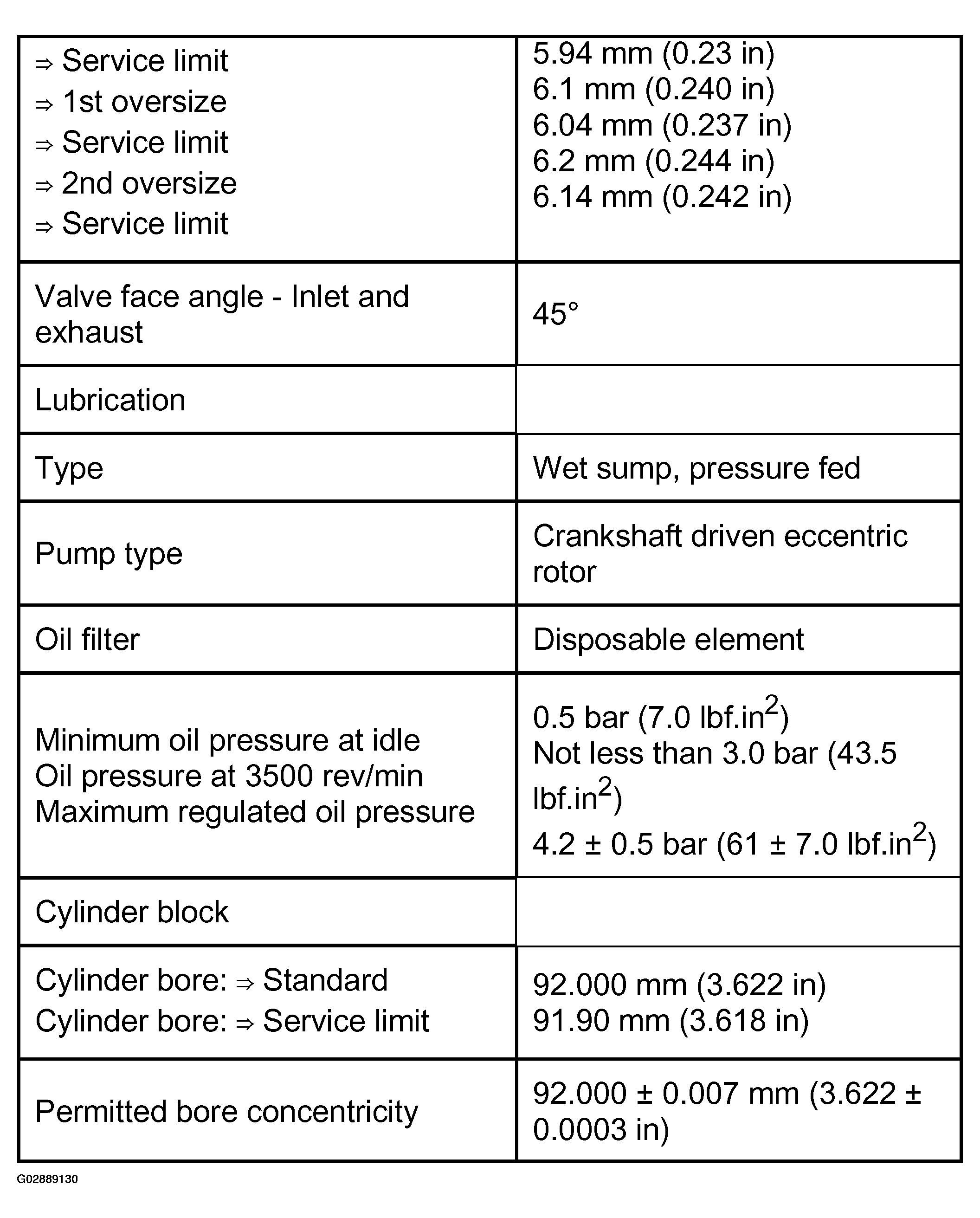

Fig 4: Engine-V8 Specifications(4 Of 7)

G02889130

Courtesy of LAND ROVER NORTH AMERICA, INC.

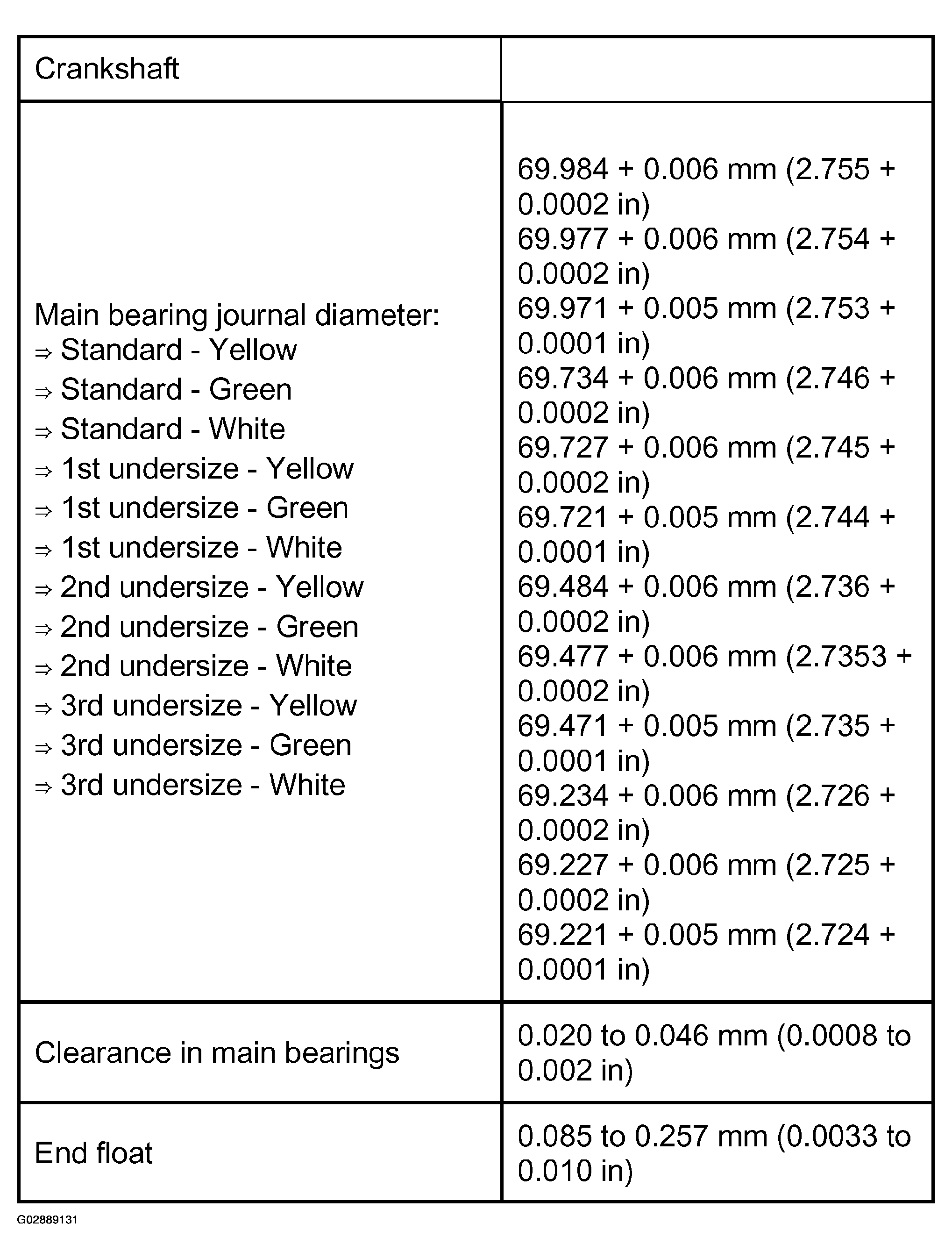

Fig 5: Engine-V8 Specifications(5 Of 7)

G02889131

Courtesy of LAND ROVER NORTH AMERICA, INC.

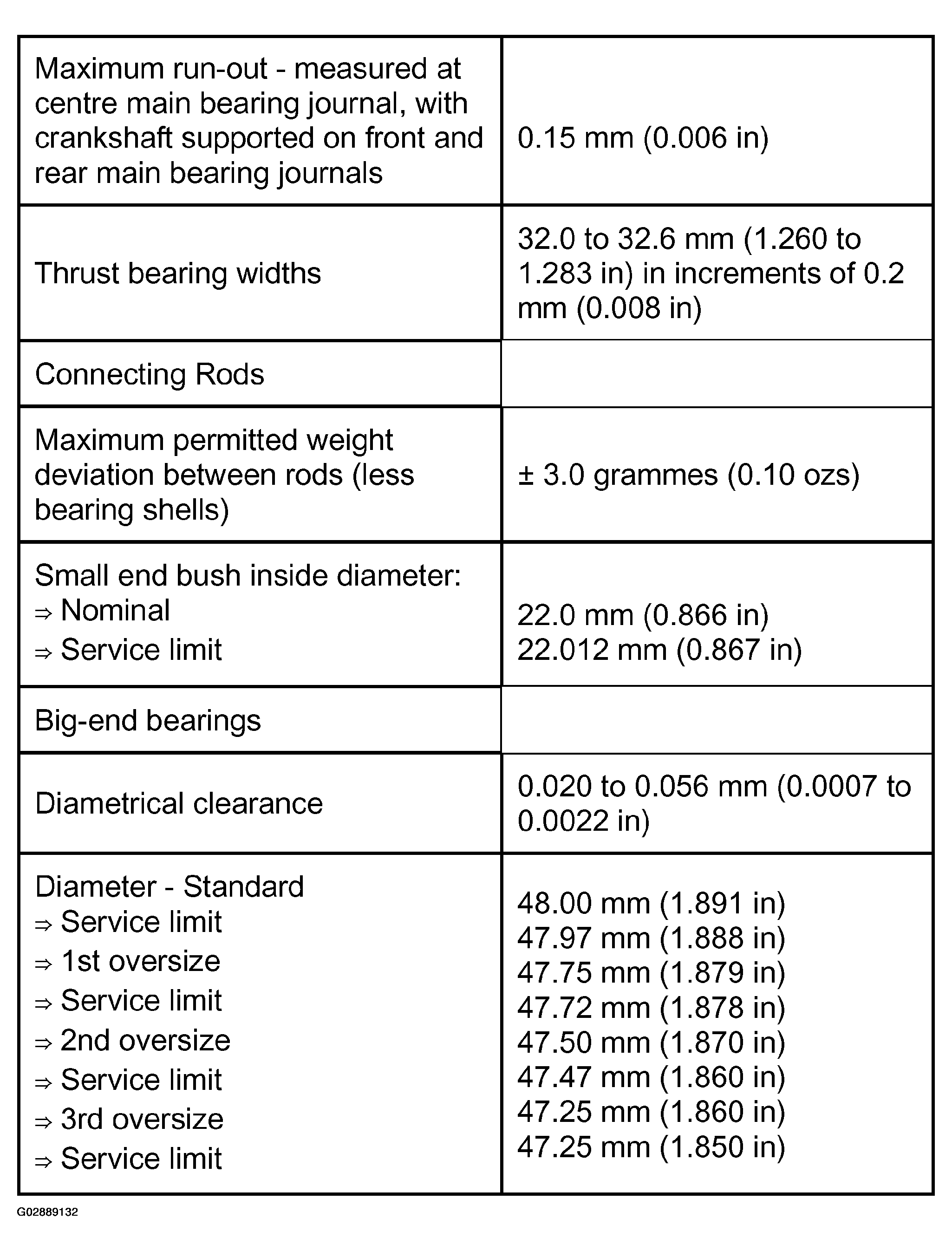

Fig 6: Engine-V8 Specifications(6 Of 7)

G02889132

Courtesy of LAND ROVER NORTH AMERICA, INC.

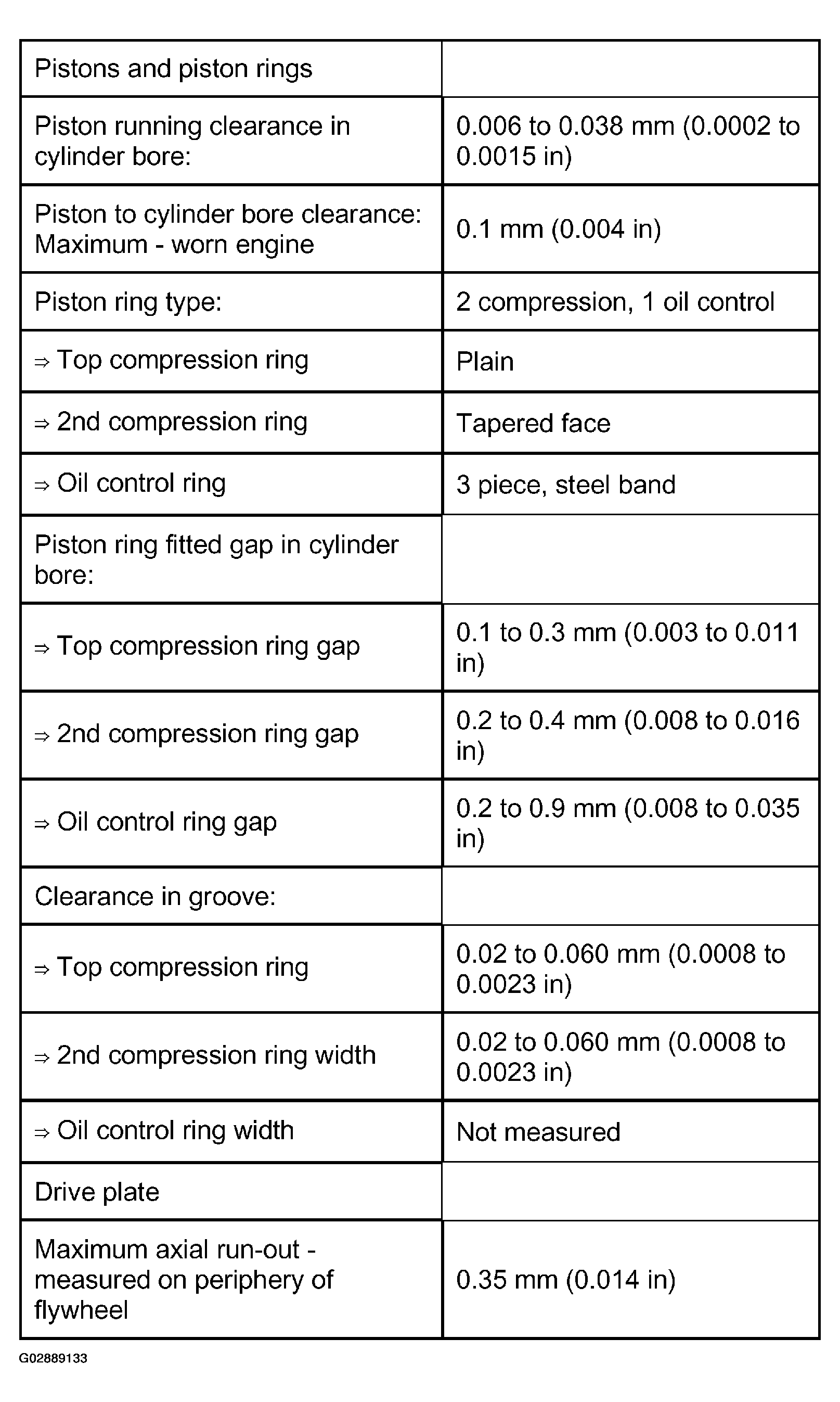

Fig 7: Engine-V8 Specifications(7 Of 7)

G02889133

Courtesy of LAND ROVER NORTH AMERICA, INC.
