Column Adjustment - With Memory

For control diagram of column adjustment with memory, see Fig 1.

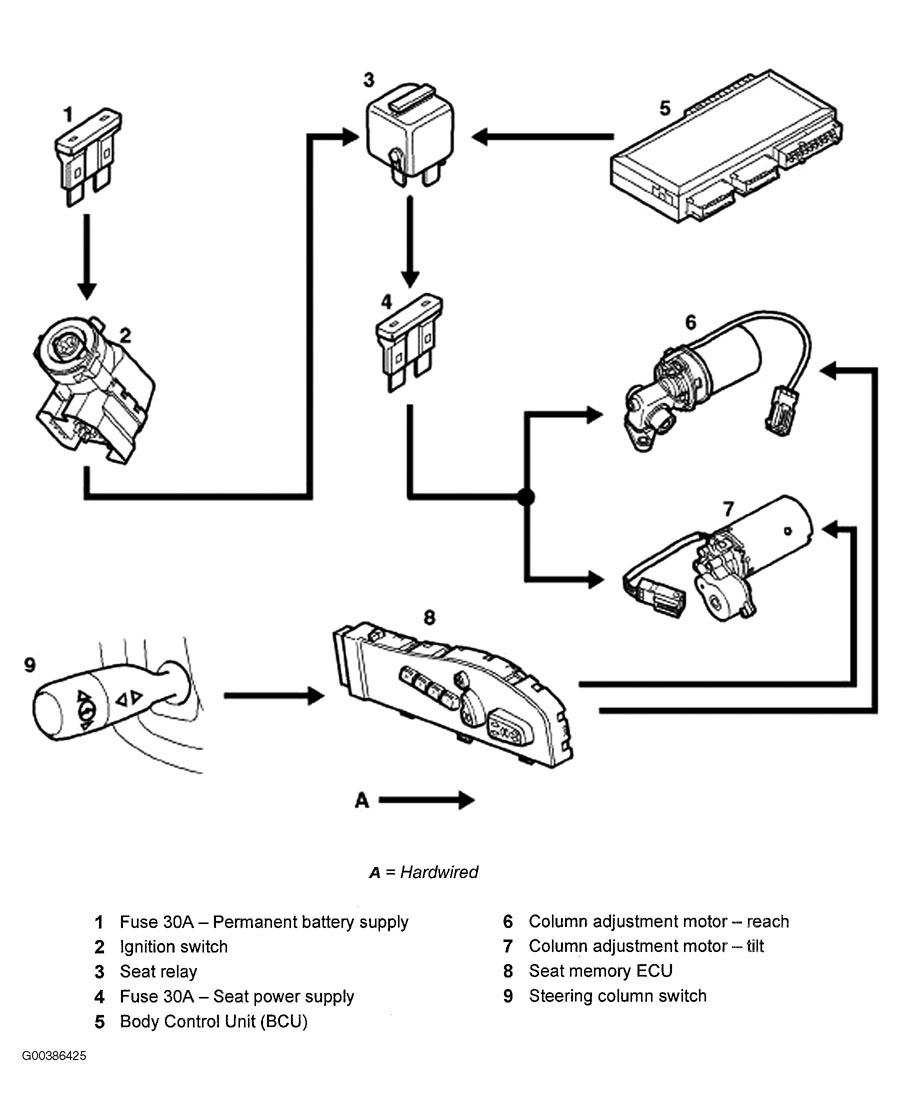

Fig 1: Steering Control Diagram - Column Adjustment With Memory

Courtesy of LAND ROVER NORTH AMERICA, INC.
